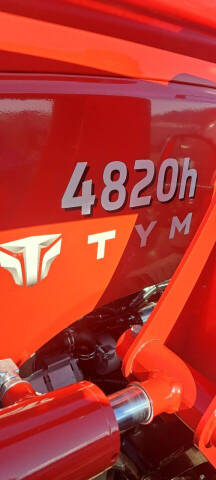

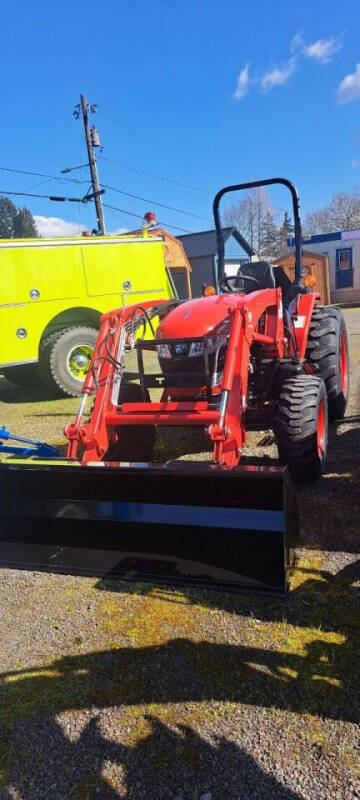

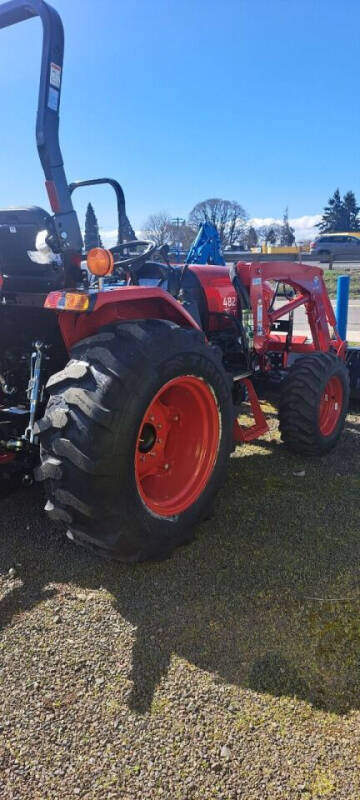

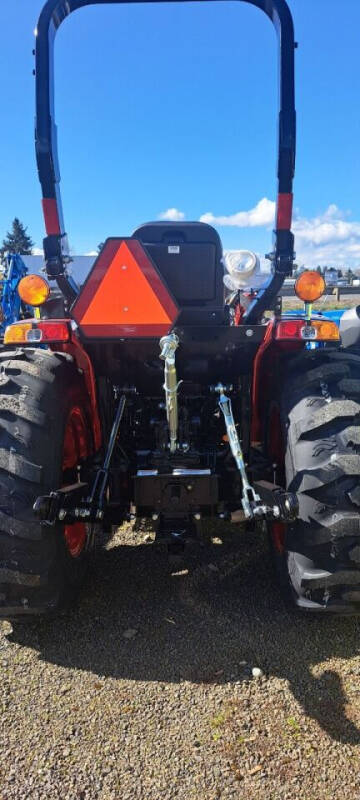

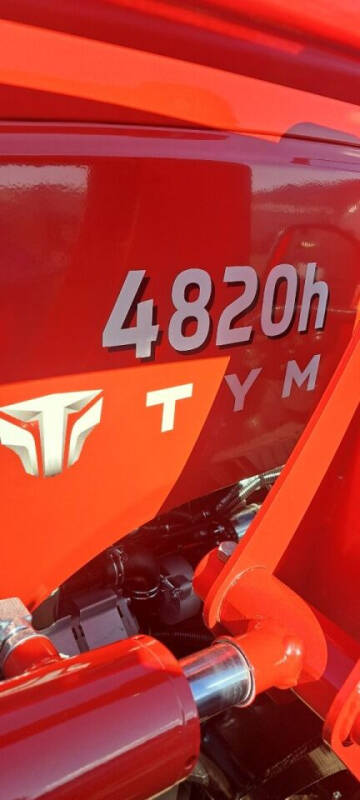

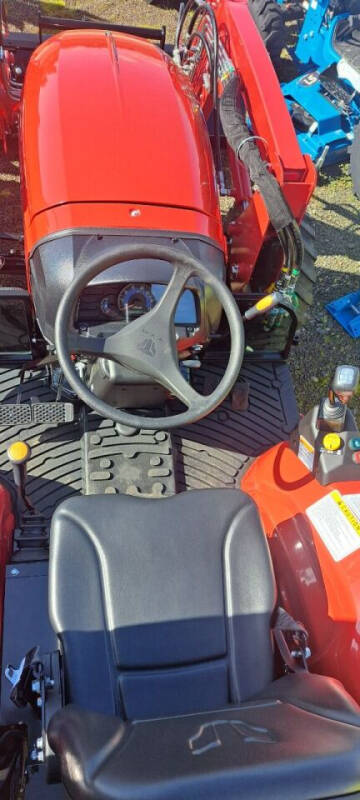

4820
Series 3, Compact Tractor
Engine power
48 hp
Hitch lift capacity
3306 lb
High performance meets efficiency in this highly customizable Series 3 tractor that has the power to support your productivity.
Engine manufacturer TYM A2300N2
Type Natural Aspiration
Gross engine power 48 hp
PTO power 38.4 hp
Rated engine speed 2600 rpm
No. of cylinders 4
Displacement 139.5 cu. in.
Air cleaner Dry Element
Alternator 12V, 50A
Fuel system IDI
Transmission type HST
No. of speeds F4xR4 (4-Range)
Max. traveling speed 19.5 mph
Brakes Wet, Multi-disc
Steering Hydrostatic
Clutch Dry Single Type (N/A)
HYDRAULIC SYSTEM
Pump type Single Gear Pump
Implement flow 4.4 gpm
Steering flow 9.9 gpm
Total flow 14.3 gpm
Category, 3-point hitch I
Hitch lift capacity 3306 lb
Hitch lift capacity at 24 inches behind link ends 2425 lb
Lift control type Position
No. of standard remote valves Optional (Up to 4)
PTO
PTO type Independent
PTO control Wet, Multi-disc
PTO rear 584 rpm
DIMENSIONS & WEIGHTS
Overall length with 3-point hitch 127.4 in.
Overall width 64.9 in.
Wheelbase 71.1 in.
Height to top of ROPS 98.4 in.
Min. ground clearance 15.5 in.
Min. turn radius with brakes 9.2 ft
Min. turn radius without brakes 9.2 ft
Weight with ROPS 3831 lb
