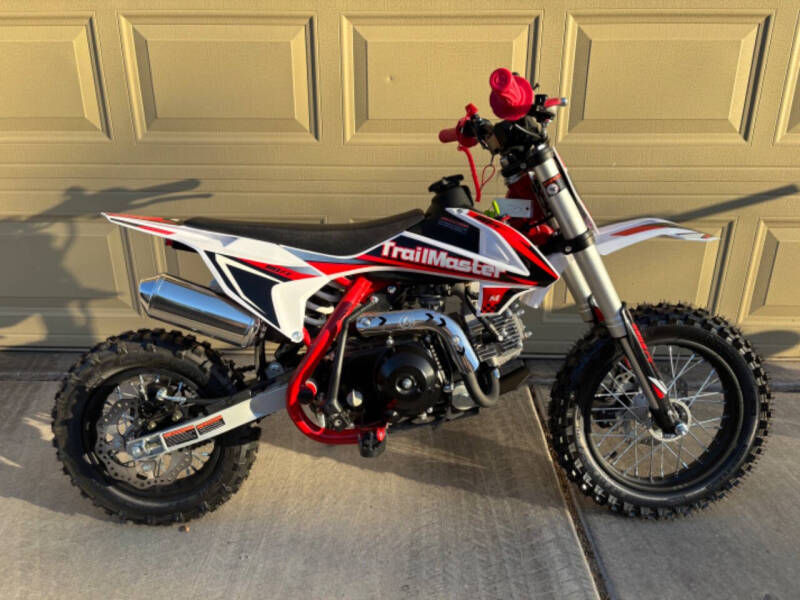

2025 TrailMaster TM15 Semi-Auto Transmission

**price includes tax and dealer fees**
90 DAY NO INTEREST FINANCING AVAILABLE FOR A SMALL FEE

($1275 out the door cash or Zelle)

Model Number: ATV-3125F2
Engine Type: Single Cylinder, 4-Stroke, Air-Cooled
Displacement: 125cc
Max Torque: 6.9N.m/6,500 ± 500r/min (N.m/r/min)
Max Power: 5.5kW/8,500 ± 500r/min (kW/r/min)
Bore Stroke: 52.4 x 55.5mm
Ignition: CDI
Starting System: Electric
Battery: 12V, 5Ah
Clutch: Fully-Automatic
Transmission: Chain, Rear Wheel Drive
Brakes Front/Rear: Hydraulic Disc
Tires Front/Rear: 19 x 7 – 8 / 18 x 9.5 – 8 (10 PSI)
Fuel Capacity: 2.4L
Maximum Weight Capacity: 165 lbs / 75 kg (rider, all cargo and accessories)
Wheelbase: 1010mm
Dimensions: 1,580 x 985 x 1,010mm
Height to Seat: 725mm
Min. Ground Clearance: 135mm
Colors & Year may vary
Engine System
Engine Type 110CC, Single Cylinder, 4-Stroke, Air Cooled
Displacement 107 ml
Shift Type N-1-2-3-4, Four-Gear, Automatic Clutch
Start Type Kick & Electric Start
Bore x Stroke ?52.4×49.5mm
Max Power 5.0/8000±500 kw/r/min
Max Torque 7.5/5500±500 N.m/r/min
Compression Ratio 9.0:1
Min. Fuel Consumpetion: =367g/kw.h
Engine Oil #: SJ5W?30
Ignition CDI
Transmission: #420 Chain, FT: 14T/RR: 39T Sprocket
Size Data
Overall Size(L*W*H) 57.5*25.6*34.25in/1460*650*870mm
Wheel Base 40in/1015 mm
Seat Height 24.4in/620 mm
Ground Clearance 8.67in/220mm
Fuel Capacity 2.2L / 0.58 Gal.
Wheels Fr. & Rr. Steel 1.40×12 / 1.60x10 Rims, Cast Hubs
Tyre Fr. & Rr. 2.75x12 / 3.0x10 ,Knobby tires
Frame/Suspension/Brake system
Frame Cradle Type Steel Tube Frame
Front Fork ?39*?42*590MM Inverted Forks, Non-Adjustable
Rear Shock ?12*270mm , Spring Pre-load
Swing-Arm Steel Tube 12inch
Handle Bar Steel Crossbar ,L=620mm; Dia=?22mm
Front Brake Hydraulic Single Piston Caliper, 190mm Disc
Rear Brake Hydraulic Single Piston Caliper, 190mm Disc
Exhaust Black Pipe with catalyst converter(EPA Standard)
Packing and Loading
Packing Size 49.4*13.2*24.2 inch
N.W/LBS 111.3 LBS
G.W/LBS 126.8 LBS
**colors and years may vary**
