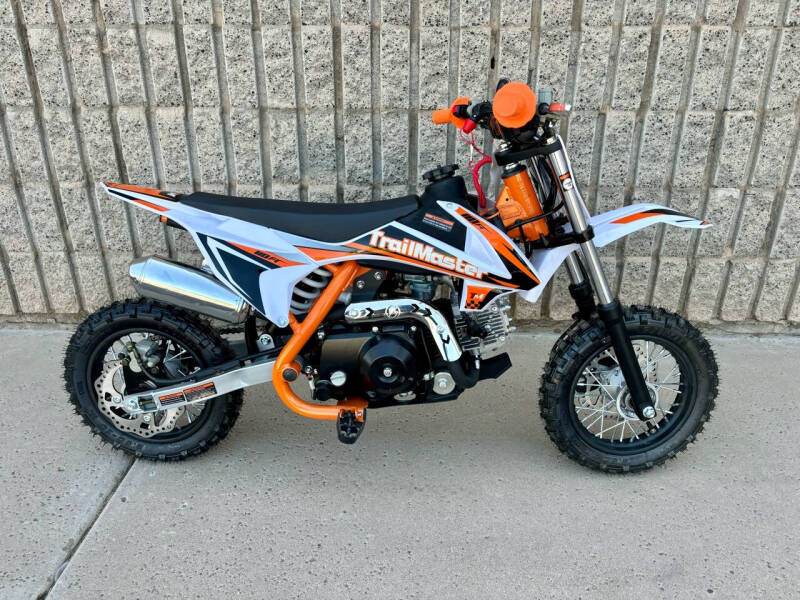

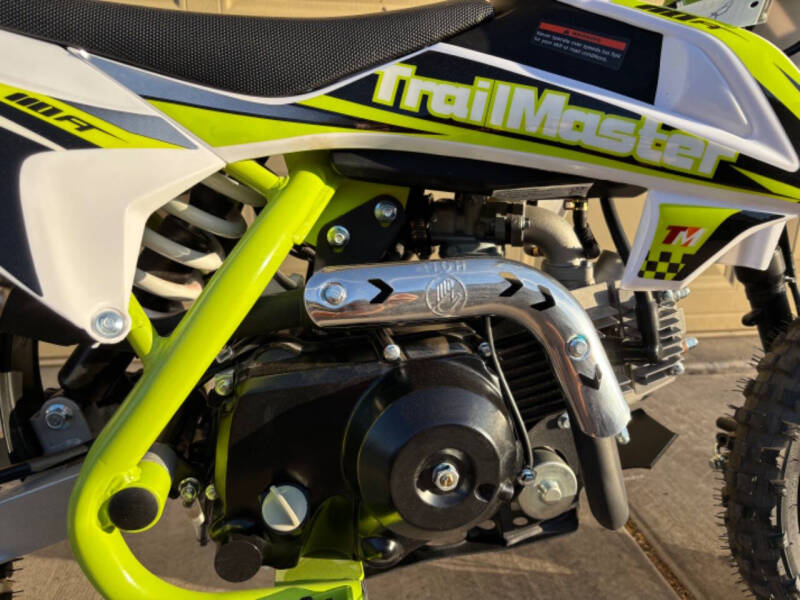

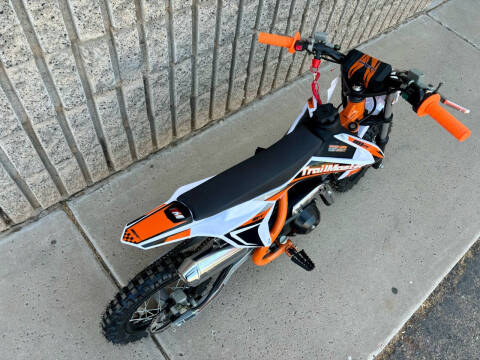

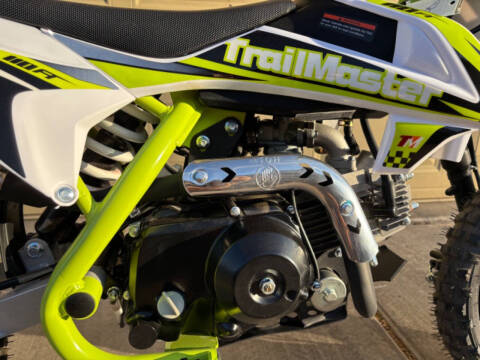

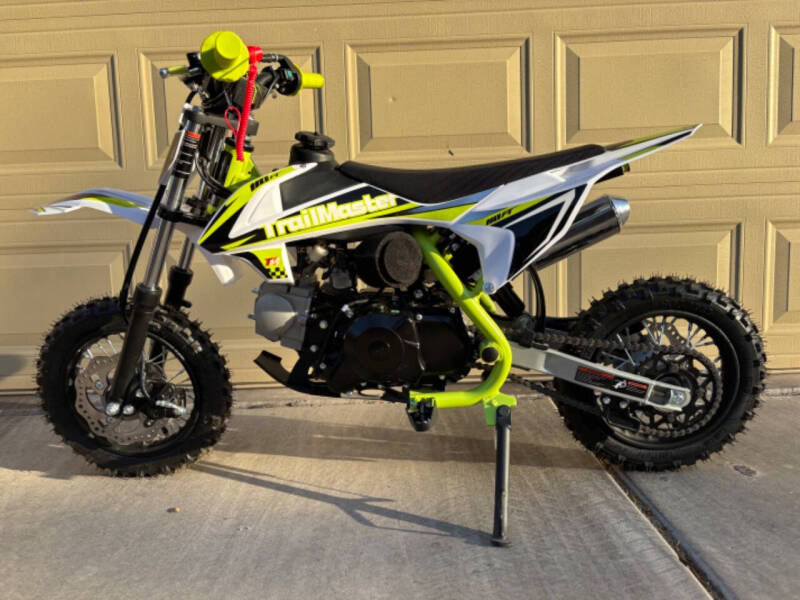

2025 TrailMaster TM11 Automatic

**price includes tax and dealer fees**
90 DAY NO INTEREST FINANCING AVAILABLE FOR A SMALL FEE

($1200 out the door cash or Zelle)

Model Number: ATV-3125F2
Engine Type: Single Cylinder, 4-Stroke, Air-Cooled
Displacement: 125cc
Max Torque: 6.9N.m/6,500 ± 500r/min (N.m/r/min)
Max Power: 5.5kW/8,500 ± 500r/min (kW/r/min)
Bore Stroke: 52.4 x 55.5mm
Ignition: CDI
Starting System: Electric
Battery: 12V, 5Ah
Clutch: Fully-Automatic
Transmission: Chain, Rear Wheel Drive
Brakes Front/Rear: Hydraulic Disc
Tires Front/Rear: 19 x 7 – 8 / 18 x 9.5 – 8 (10 PSI)
Fuel Capacity: 2.4L
Maximum Weight Capacity: 165 lbs / 75 kg (rider, all cargo and accessories)
Wheelbase: 1010mm
Dimensions: 1,580 x 985 x 1,010mm
Height to Seat: 725mm
Min. Ground Clearance: 135mm
Colors & Year may vary
Engine Type
110CC, Single Cylinder, 4-Stroke, Air Cooled
Displacement
107 ml
Shift Type
Automatic
Start Type
Electric Start Only
Bore x Stroke
?52.4×49.5mm
Max Power
5.0/8000±500 kw/r/min
Max Torque
7.5/5500±500 N.mr/min
Compression Ratio
9.0:1
Min. Fuel Consumpetion:
=367g/kw.h
Engine Oil #:
SJ5W?30
Ignition
CDI
Transmission:
#420 Chain, FT: 14T/RR: 39T Sprocket
Size Data
Overall Size(L*W*H)
1520*650*840mm/59.84"X25.60"X33.07"
Wheel Base
39.37"
Seat Height
24.41"
Ground Clearance
8.27"
Fuel Capacity
2.2L / 0.58 Gal.
Wheels
Fr. & Rr. Both Steel 1.40×10/?12 Rims, Cast Hubs
Tire
Fr. & Rr. Both 2.50x10 ,Knobby tires
Frame/Suspension/Brake system
Frame
Cradle Type Steel Tube Frame
Front Fork
?33*650mm Telescopic Forks, Non-Adjustable
Rear Shock
?10*270mm , Non-Adjustable
Swing-Arm
Steel Tube 12inch
Handle Bar
Steel Crossbar ,L=620mm; Dia=?22mm
Front Brake
Hydraulic Single Piston Caliper, 190mm Disc
Rear Brake
Hydraulic Single Piston Caliper, 190mm Disc
Exhaust
Black Pipe with catalyst converter(EPA Standard)
Packing and Loading
Packing Size
49.4*13.2*24.2 inch
N.W/LBS
111.3 LBS
G.W/LBS
126.8 LBS
**colors and years may vary**
