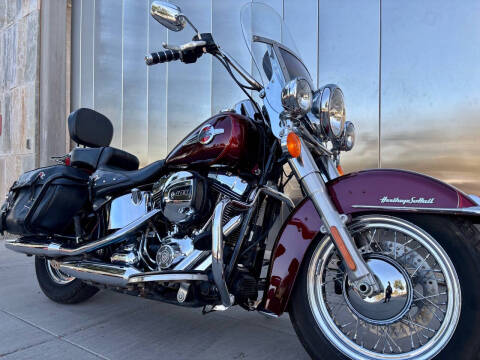

2017 Harley-Davidson Heritage Softail Classic

VIN# 1HD1BWV18HB041638
**price includes tax, title, plates, registration & dealer fees**
Engine and transmission
Engine size 1690.0 ccm (103.12 cubic inches)
Type of engine V2, four-stroke
Engine details High Output Twin Cam 103B
Effect 78.0 HP (56.9 kW)) @ 5020 RPM
Torque 125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3000 RPM
Compression 9.7:1
Bore x stroke 98.4 x 111.1 mm (3.9 x 4.4 inches)
Fuel system Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Fuel control Double Overhead Cams/Twin Cam (DOHC)
Cooling system Air
Gearbox 6-speed
Transmission type Belt (final drive)
Clutch Multi-plate with diaphragm spring in oil bath
Fuel consumption 5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases 129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system Chrome, staggered shorty exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Rake (fork angle) 31.0°
Trail 147 mm (5.8 inches)
Front suspension Telescopic fork
Rear suspension Twin shocks
Front tire MT90-B16
Rear tire 150/80-B16
Front brakes Single disc. ABS. 4-piston.
Rear brakes Single disc. ABS. 2-piston.
Wheels Steel laced, optional whitewall tires
Physical measures and capacities
Dry weight 333.0 kg (734.1 pounds)
Weight incl. oil, gas, etc 347.0 kg (765.0 pounds)
Power/weight ratio 0.2342 HP/kg
Seat height 690 mm (27.2 inches) If adjustable, lowest setting.
Overall length 2405 mm (94.7 inches)
Ground clearance 131 mm (5.2 inches)
Wheelbase 1635 mm (64.4 inches)
Fuel capacity 18.93 litres (5.00 US gallons)
Oil capacity 3.30 litres (3.49 US quarts)
