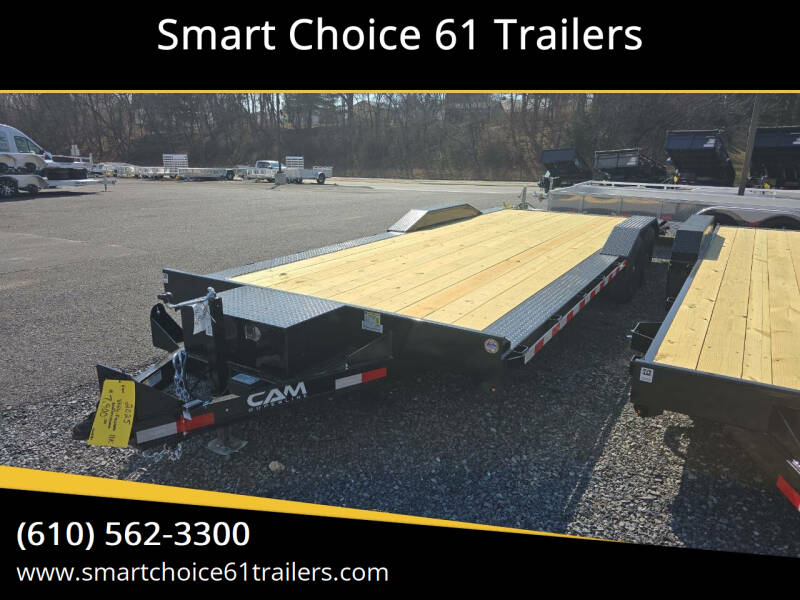

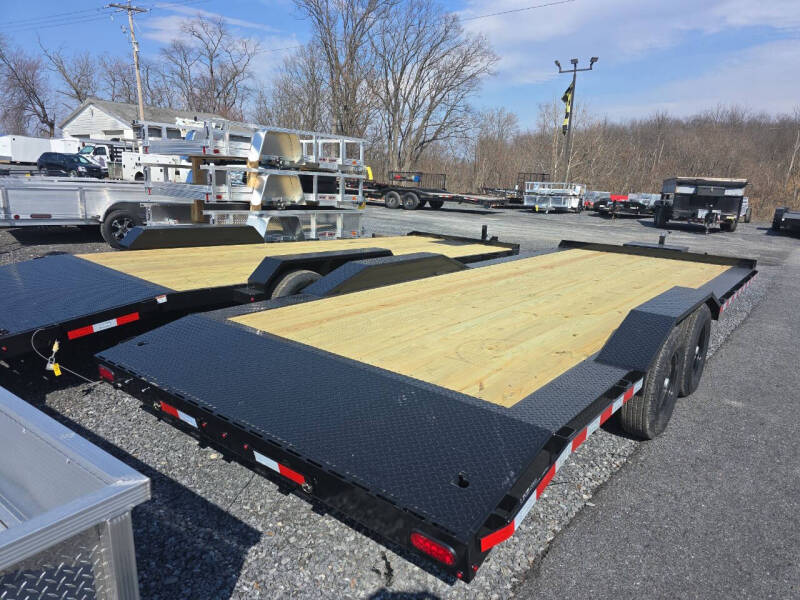

FULL WIDTH EQUIPMENT HAULER
The Full Width Equipment Hauler from CAM Superline® features a 102” wide full-width deck with 3/16” diamond plate steel drive-over fenders, making it the perfect trailer for hauling equipment with a wide wheel base. The 2' Beavertail in combination with 5' Quick Release Ramps make loading and unloading safe and easy.
FEATURES
Safety Chains
Zip Breakaway System
Spare Tire Mount
D-Ring Tie-Downs (2)
Stake Pockets (14)
Rub Rail
Steel Toolbox
Banjo Eye Tie-Downs (2)
Sealed Wiring Harness
Three Year Warranty
AVAILABLE OPTIONS
Aluminum Wheels
FULL WIDTH EQUIPMENT HAULER TRAILER
The Full Width Equipment Hauler Trailer was built for versatility. The Diamond-Plate Drive Over Fenders allow wide-wheeled equipment to load easily.
COLOR OPTIONS
STANDARD
BLACK
YELLOW
OPTIONAL
RED
GRAY
ORANGE
BLUE
GREEN
SPECIFICATIONS
11k
Model #
20 + 2 - P5EC202CFW
GVWR (lb.)
11000
GAWR (lb. / Axle)
5080
Curb Weight
20 + 2 - 3070
Payload
20 + 2 - 7930
Frame
5” Channel
Crossmembers
10-Gauge, Fabricated
Tongue
5” Channel @ 6.7 lb.
Coupler
Adjustable 2-5/16” Ball Coupler
Jack
7k Bolt-On Drop Leg Jack
Fenders
Diamond Plate Drive Over Fenders
Axles
5200 lb. Greased
Suspension
Slipper Spring Suspension
Tires
225/75R15 LRD
Wheels
15”, 6 on 5.5
Decking
Pressure-Treated Decking
Lights
LED Lights - Rubber Mounted
Electric Plug
7-Way SAE Plug
Finish
Industrial Grade Polymer Finish
Overall Length / Flat
20 + 2 - 308"
Deck Width
81”
Deck Height
22.5”
Coupler Height
16.5” - 21”
Ramps
5’ Steel Fabricated Ramps
