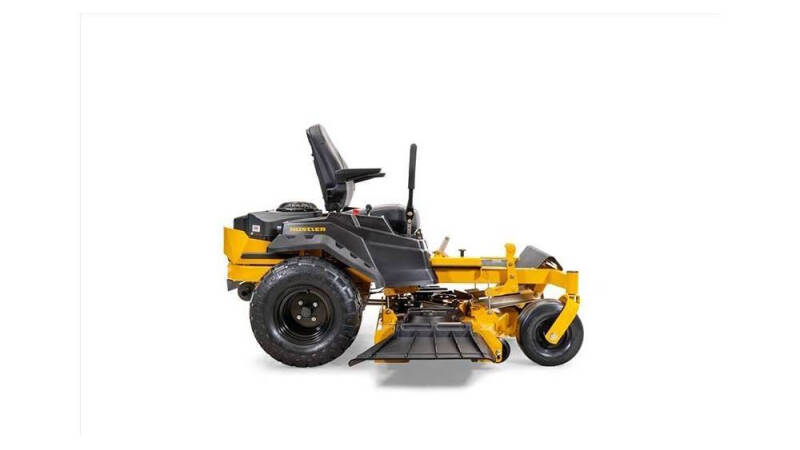

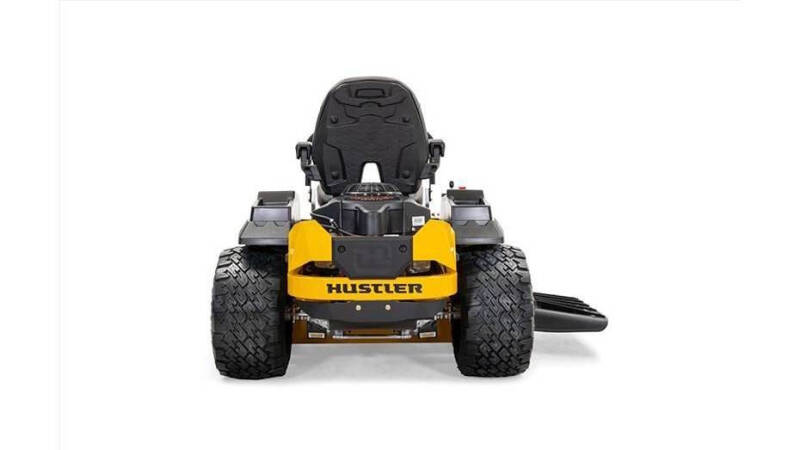

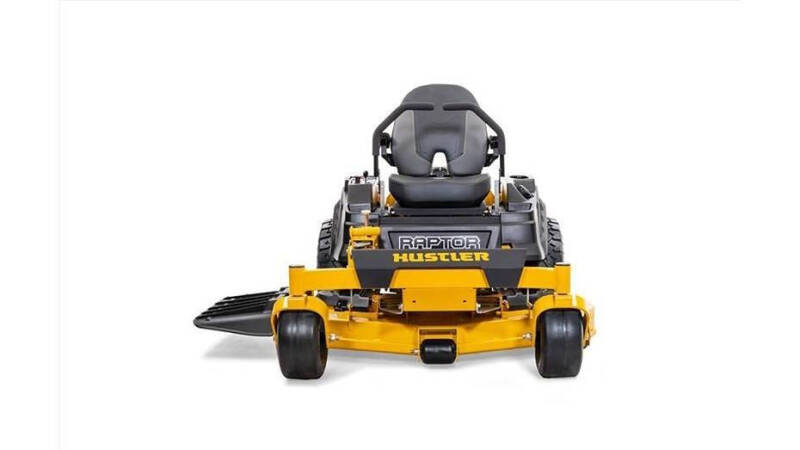

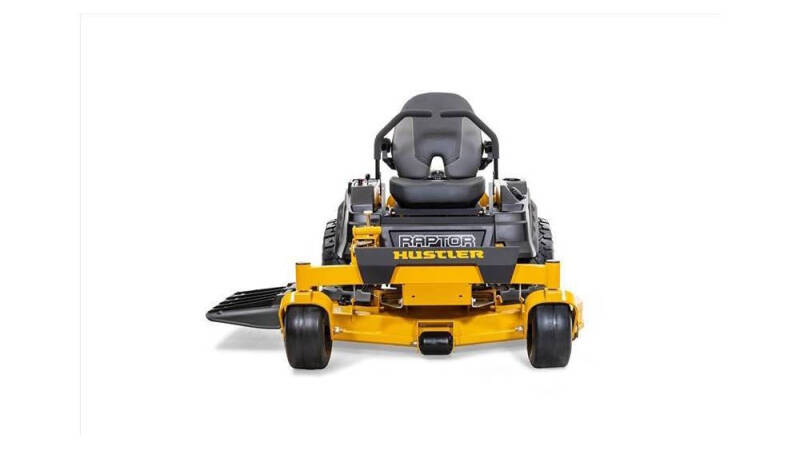

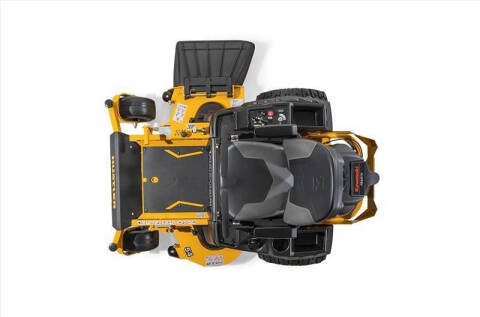

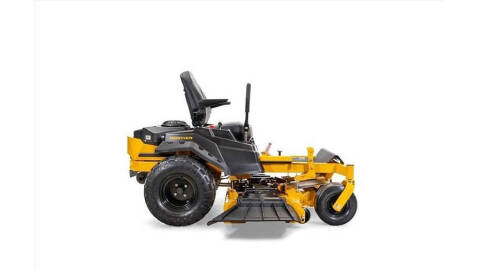

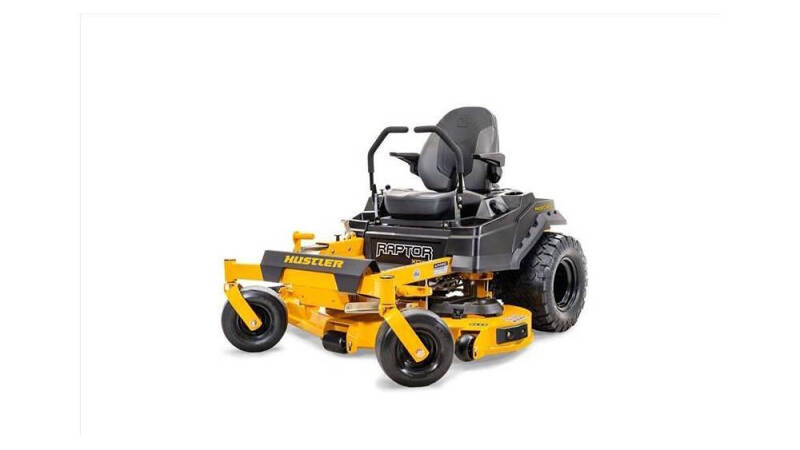

The Raptor® XDX is at the top of Hustler's residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and tool-less removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck is designed to allow for mowing through thick grass at top speeds. The heavy-duty XDX is backed by a 3yr / 300hr limited warranty and 1yr / 300hr commercial limited warranty.
Features
22" Bigbite™ Tires: Aggressive Tire To Help Handle Tough Jobs.
Extra High-Back Seat: An Extra High-Back Seat (Compared To The Raptor X Seat) With Armrests.
Commercial Grade Deck: 10 Gauge Steel And 11 Gauge Front Bull Nose Bumper Designed For Durability. Up To 60” Deck Sizes Available.
Key Specs
Engine Manufacturer: Kawasaki FR730
Engine Horsepower: 24
Transmission: Hydro-Gear ZT-3100®
Fuel Capacity: 3 gal.
Ground Speed (Fwd): Up to 8 mph
Cutting Width: 60"
Cutting Height: 1.5" to 4.5"
Front Tire: 13 x 6.5
Drive Tire: 22 x 11-10 BigBite™
Warranty: 3 Year/300 hour residential or 1 Year/300 hour commercial
Engine
Engine Manufacturer: Kawasaki FR730
Engine Horsepower: 24
Displacement: 726cc
Cooling: Air Cooled
Engine Warranty: 3 Year Warranty
Drive System
Type: Dual Hydrostatic
Transmission: Hydro-Gear ZT-3100®
Fuel Capacity: 3 gal.
Ground Speed (Fwd): Up to 8 mph
Parking Brake: Integrated with steering levers
Deck
Cutting Width: 60"
Cutting Height: 1.5" to 4.5"
Deck Depth: 5.0"
Deck Lift: Foot Operated
Number Of Blades: 3
Blade Length: 20.50"
Blade Tip Speed: 18,400
Spindles: Aluminum with 1" shaft and sealed ball bearings
Deck Engagement: Ogura GT1.5
Deck Material: Fabricated 10 gauge steel
Spindle Mounts: Reinforced 11 gauge steel
Impact Trim Area: 11 ga. formed channel w/ rolled edge
Construction
Frame: 1.5" X 3.0" steel tubing
Front Axle: Fabricated with sealed ball bearings
Front Caster Wheel: Sealed ball bearings
Front Caster Fork: Fabricated 3/8" steel
General
Seat: Bolstered extra high-back seat with armrests and built-in lumbar support
Cup Holder: Yes
Dimensions
Front Tire (Inches): 13 x 6.5
Drive Tire (Inches): 22 x 11-10 BigBite™
Weight (Lbs): 710
Height (Inches): 43.7
Length (Inches): 71.1
Width W/ Chute Up (Inches): 62.2
Tire-To-Tire Width (Inches): 48.6
Productivity (Acres Per Hour): 3.88
Warranty
Warranty: 3 Year/300 hour residential or 1 Year/300 hour commercial
Dimensions with Catcher
Catcher Style: 2-bag
Powered / Non-Powered: Powered
Catcher Capacity: 7.2 bushel
Mower Length W/ Catcher: 92.3
Mower Width W/ Catcher: 69.2
