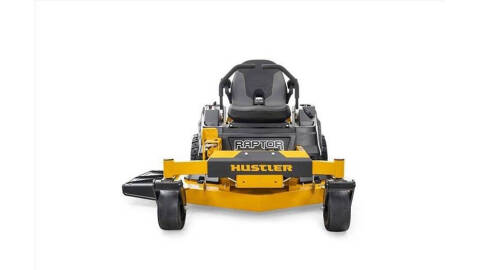

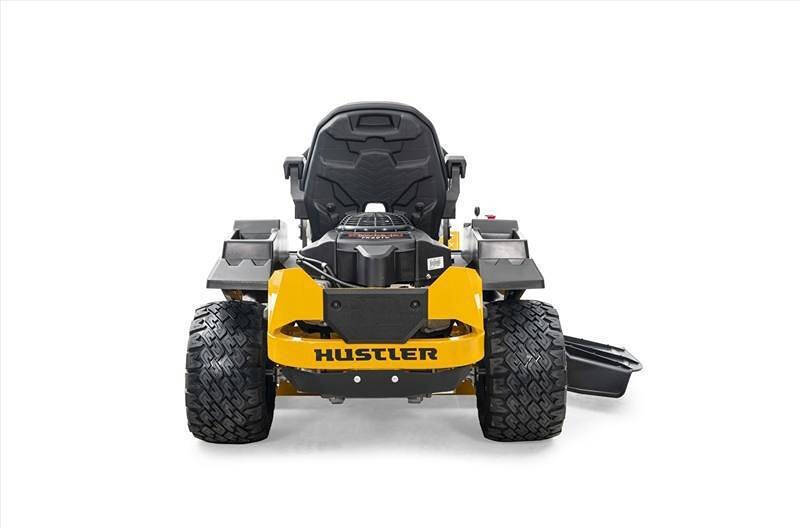

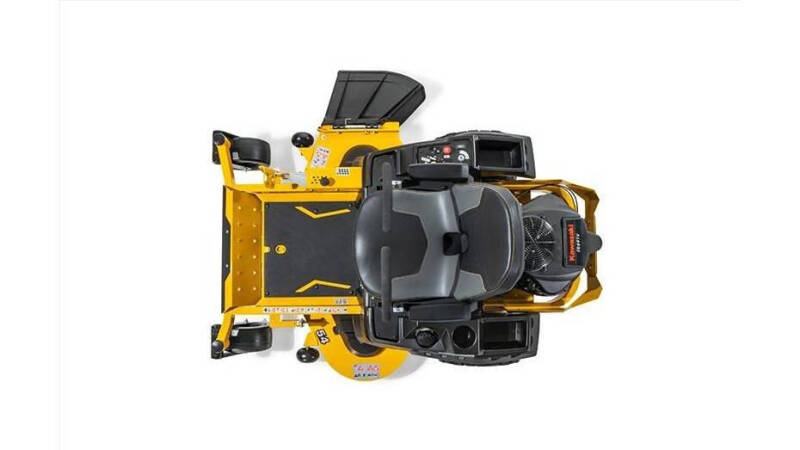

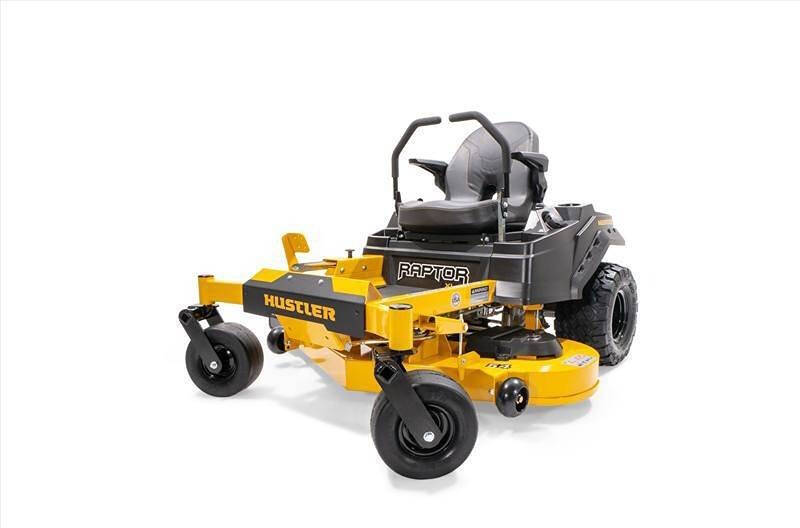

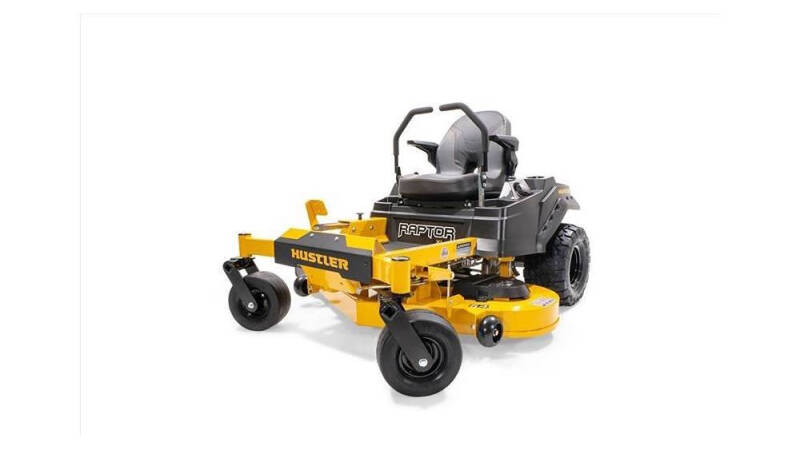

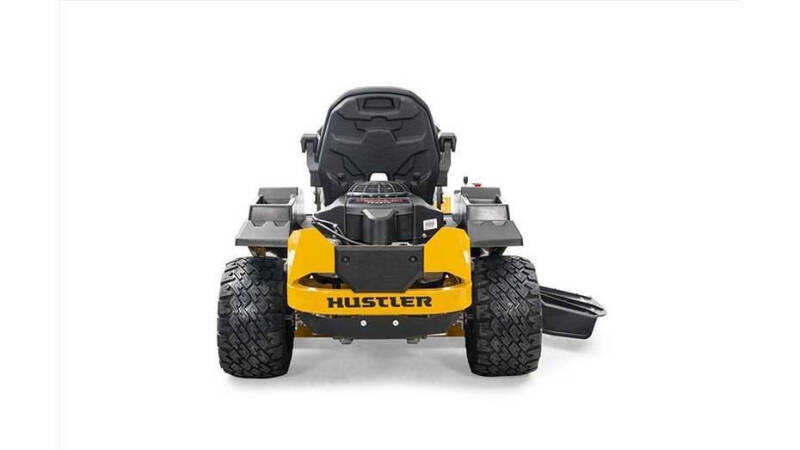

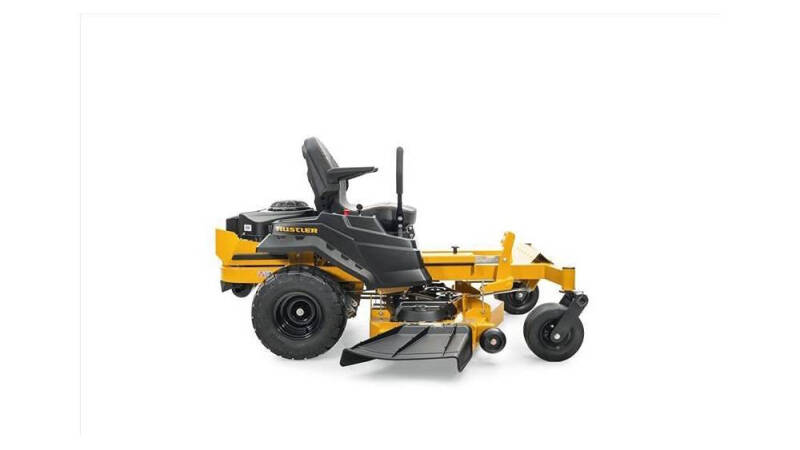

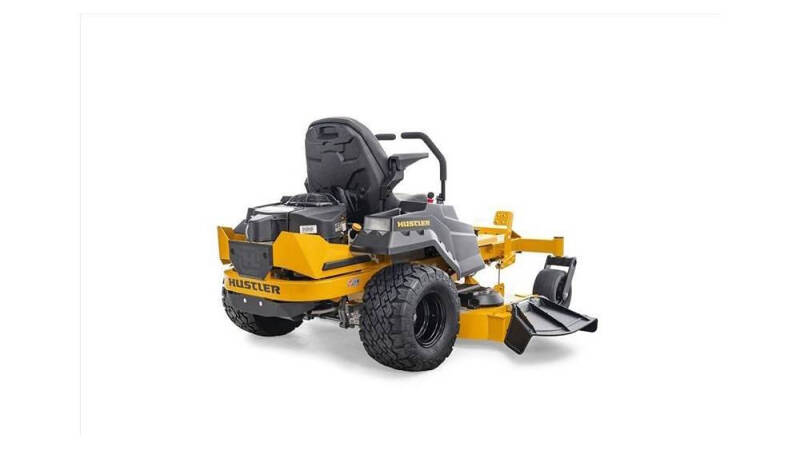

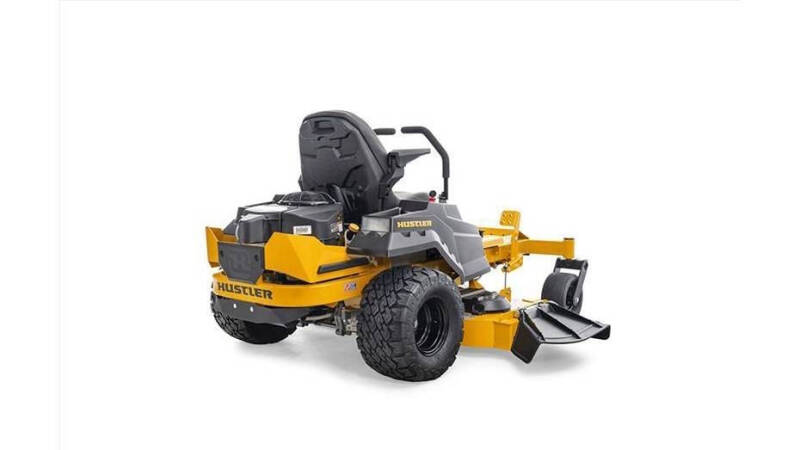

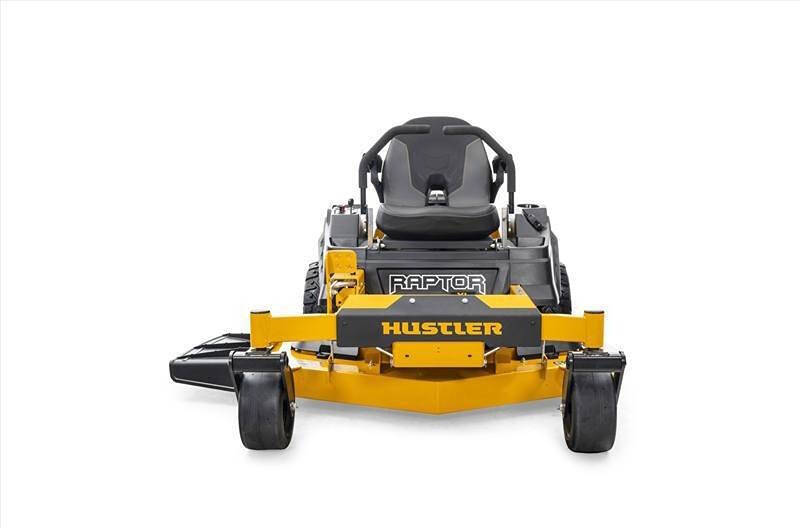

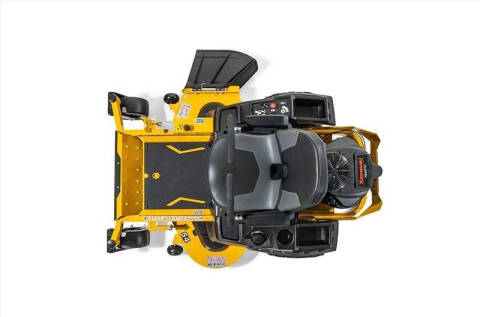

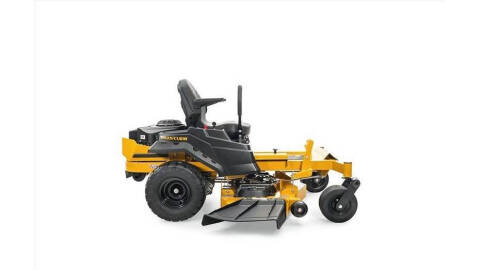

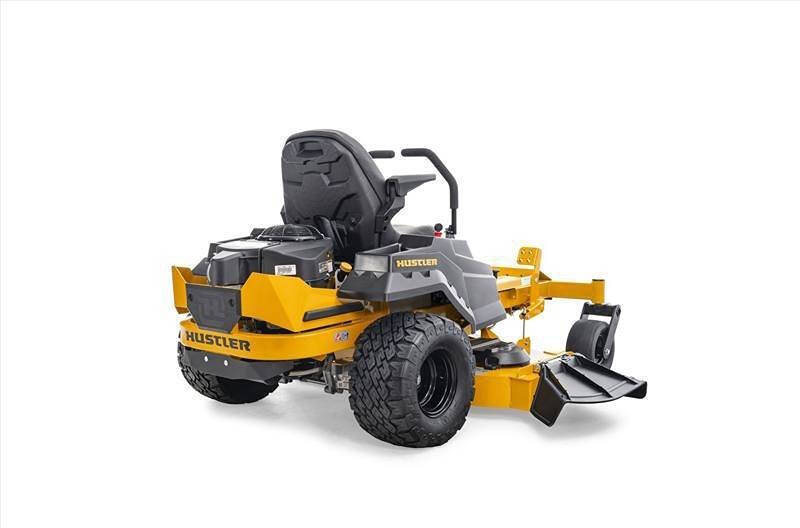

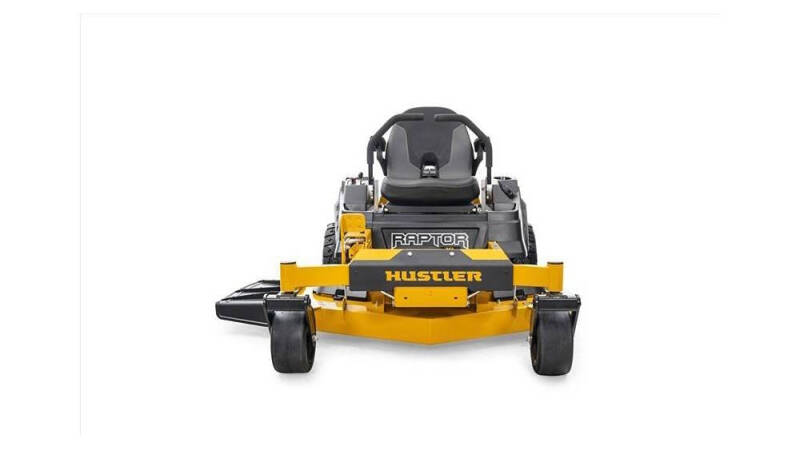

The Raptor® XL features premium upgrades to the Raptor X. The XL provides some added comfort with a more premium seat and Flex Forks® for a smoother ride. Also, there is an option for additional horsepower with a 23hp Kawasaki® FR Engine. More comfort and more power backed by a 3yr / 300hr limited warranty.
Features
Kawasaki® Engine: Powered By A V-Twin Kawasaki Engine.
Bolstered Seat: Compared To Raptor X Seat, The Xl Seat Features A Higher Back And Added Padding With The Same Armrests And Air Flow To The Back.
Flexforks®: Standard On The Xl, These Flexing Front Forks Help Cushion The Ride For A Smoother Mowing Experience.
Key Specs
Engine Manufacturer: Kawasaki FR651
Engine Horsepower: 21.5
Transmission: Hydro-Gear ZT-2200
Fuel Capacity: 3 gal.
Ground Speed (Fwd): Up to 7 mph
Cutting Width: 42"
Cutting Height: 1.5" to 4.5"
Front Tire: 11 X 5
Drive Tire: 18 X 8.5-8 Big BiteT™
Warranty: 3 Year/300 hour residential
Engine
Engine Manufacturer: Kawasaki FR651
Engine Horsepower: 45433
Displacement: 726cc
Cooling: Air Cooled
Engine Warranty: 3 Year Warranty
Drive System
Type: Dual Hydrostatic
Transmission: Hydro-Gear ZT-2200
Fuel Capacity: 3 gal.
Ground Speed (Fwd): Up to 7 mph
Parking Brake: Integrated with steering levers
Deck
Cutting Width: 42"
Cutting Height: 1.5" to 4.5"
Deck Depth: 4.5"
Deck Lift: Foot Operated
Number Of Blades: 2
Blade Length: 20.50"
Blade Tip Speed: 18,000
Spindles: Aluminum with 1" shaft and double lip sealed ball bearings
Deck Engagement: Ogura GT1.5
Deck Material: Fabricated 11 gauge steel
Spindle Mounts: Reinforced 7 gauge steel
Impact Trim Area: 1/4" x 1" steel bar
Construction
Frame: 1.5" X 3" steel tubing
Front Axle: Fabricated with sealed ball bearings
Front Caster Wheel: Sealed ball bearings
Front Caster Fork: FlexFork®
General
Seat: Bolstered high-back seat with armrests and built-in lumbar support
Cup Holder: Yes
Dimensions
Front Tire (Inches): 11 X 5
Drive Tire (Inches): 18 X 8.5-8 Big BiteT™
Weight (Lbs): 567
Height (Inches): 42.6
Length (Inches): 69.9"
Width W/ Chute Up (Inches: 45.5"
Tire-To-Tire Width (Inches): 43
Productivity (Acres Per Hour): 2.38
Warranty
Warranty: 3 Year/300 hour residential
Dimensions with Catcher
Catcher Style: 2-bag
Powered / Non-Powered: Non-powered
Catcher Capacity: 5.4 bushel
Mower Length W/ Catcher: 91.4
Mower Width W/ Catcher: 56.5
