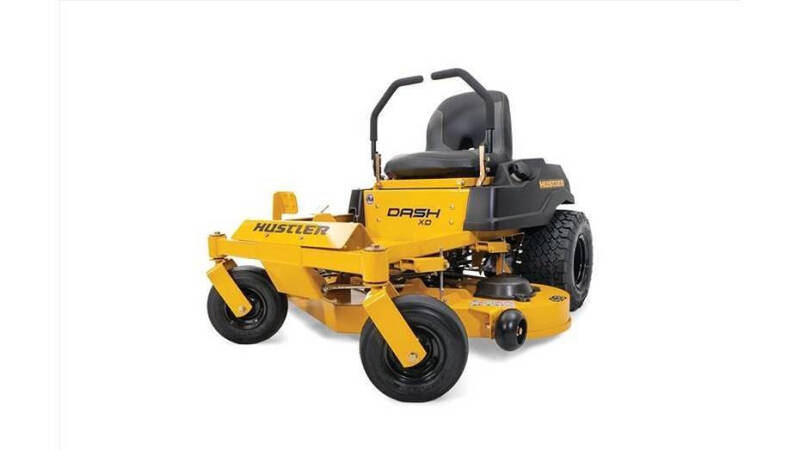

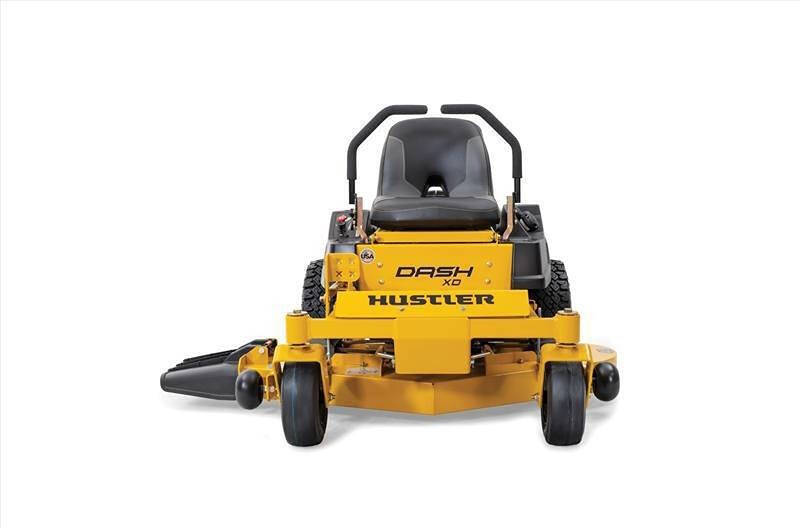

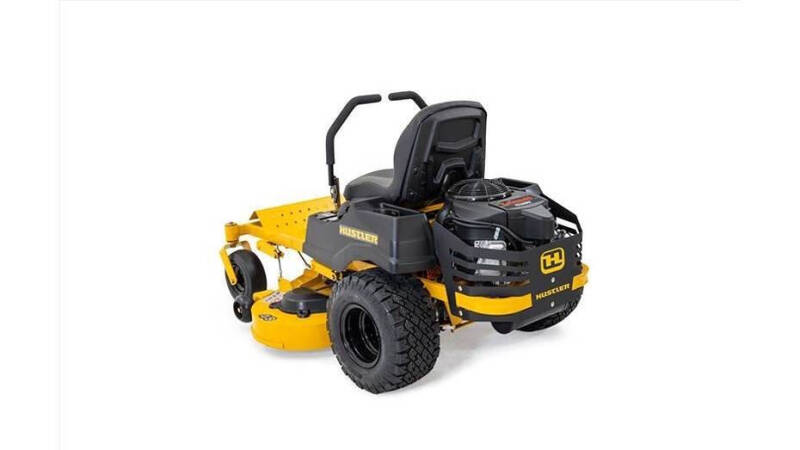

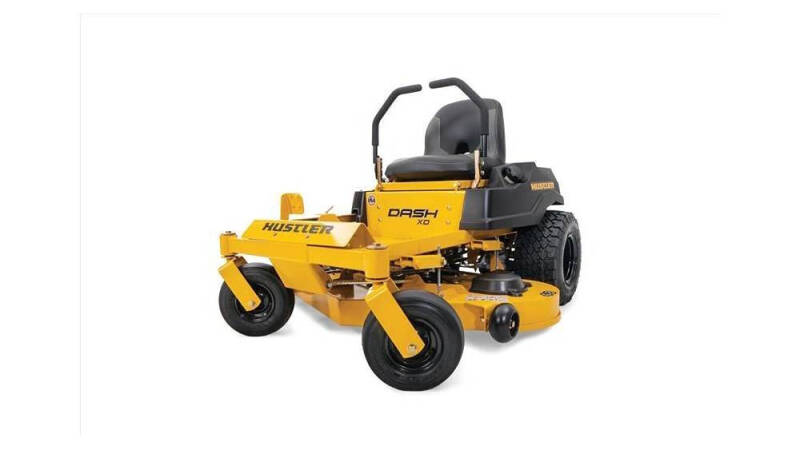

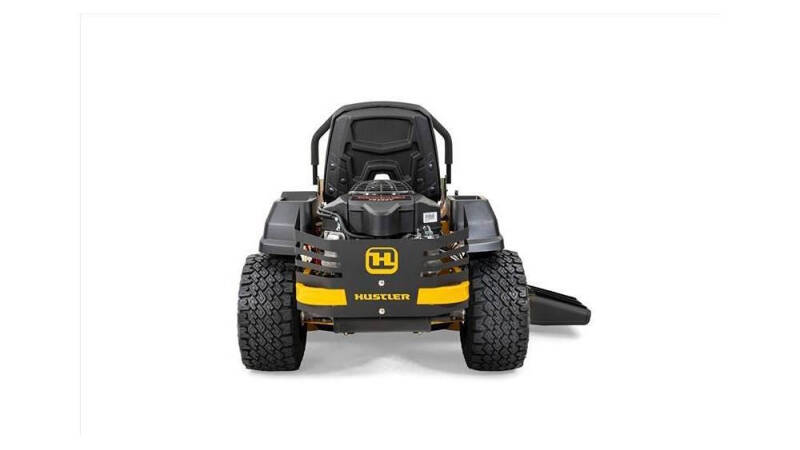

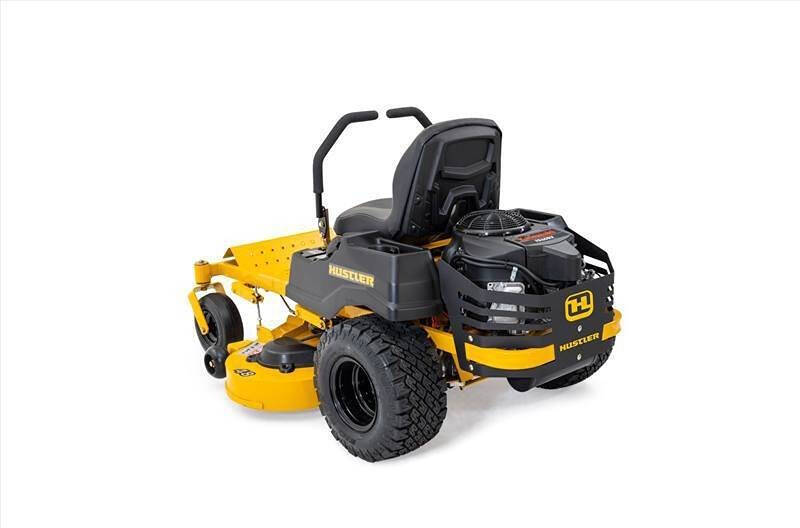

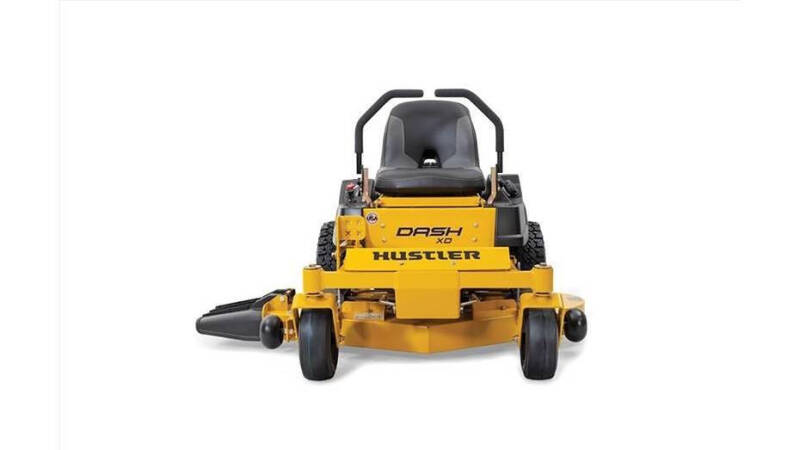

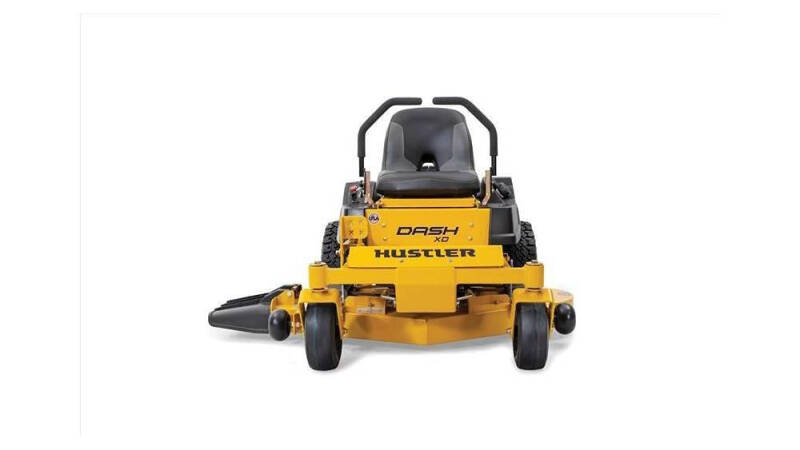

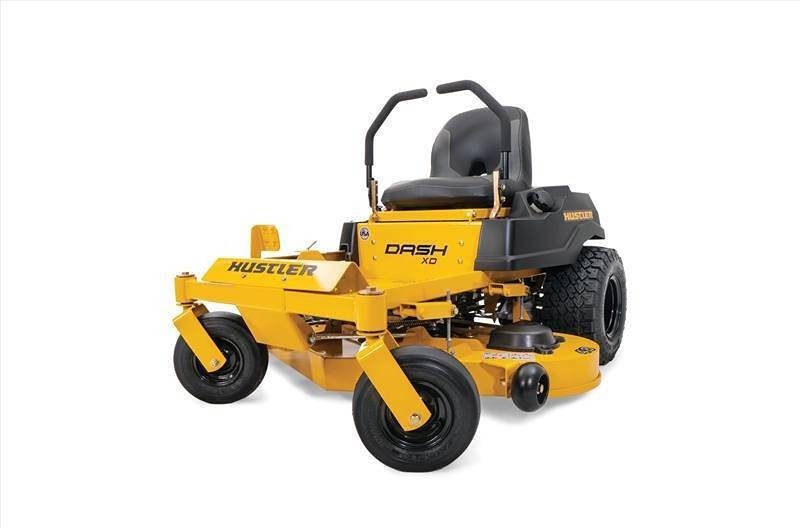

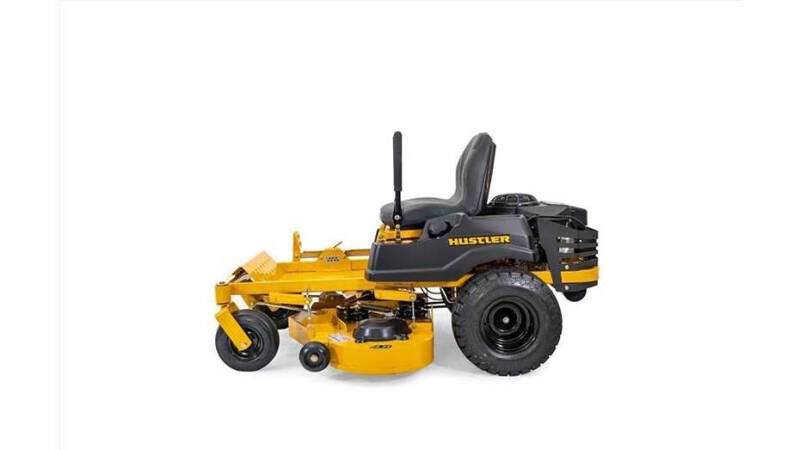

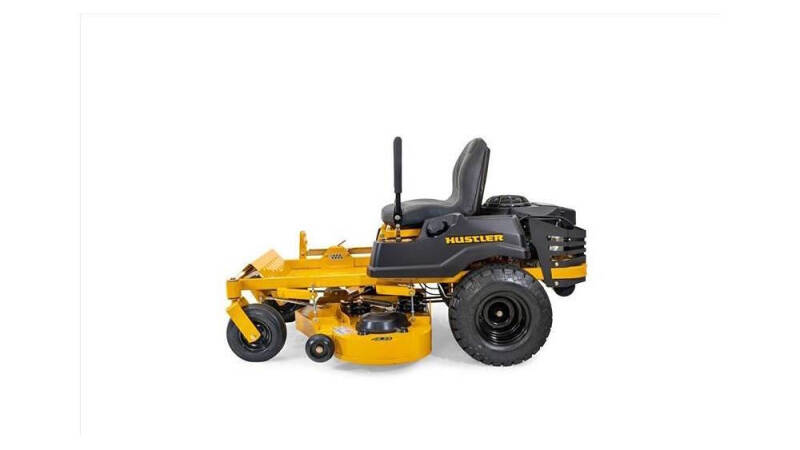

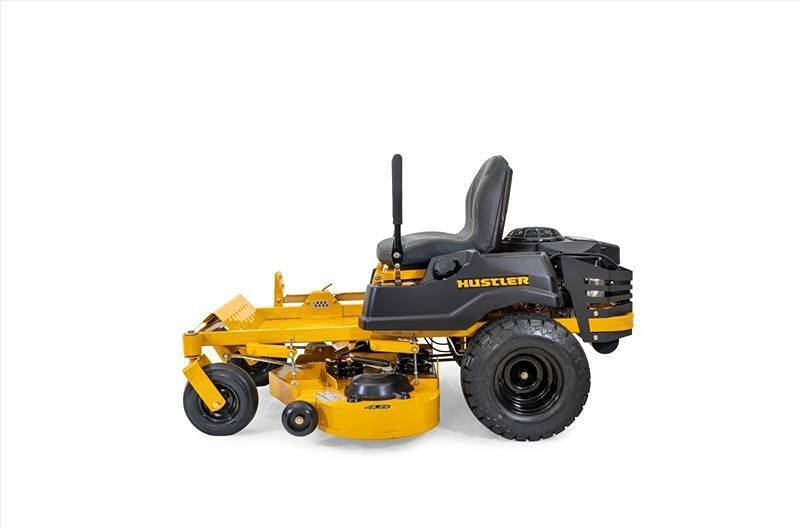

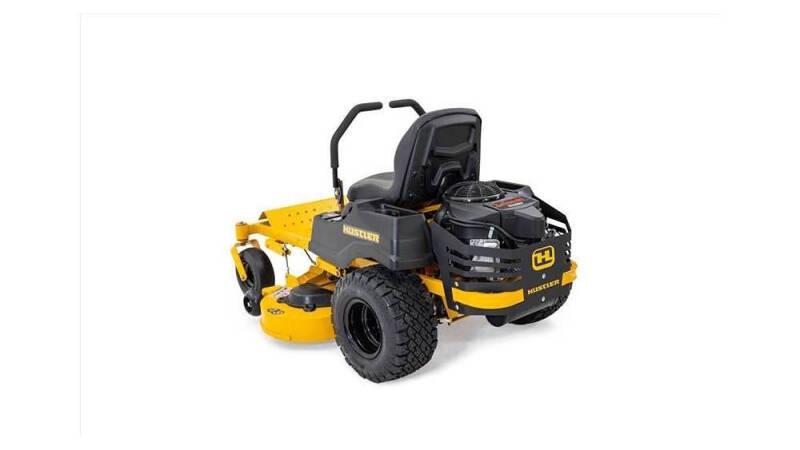

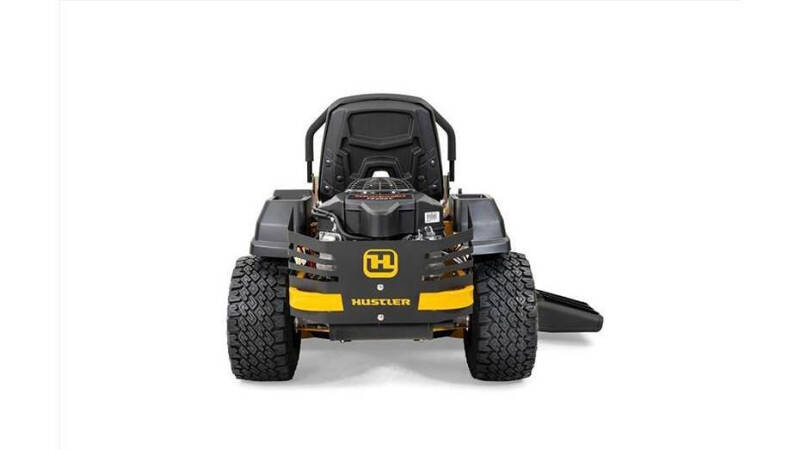

The Dash® XD is Hustler Turf's most compact residential mower designed for smaller property owners. The smaller design makes it ideal for garage storage and fitting through tight spaces like fence gates. One piece fabricated frame and welded steel deck come standard along with bolstered seat, Kawasaki® Power & BigBite™ tires.
Features
18" Bigbite™ Rear Tires: We Worked Directly With The Tire Manufacturer On This Design.
Premium Seat: Bolstered With Built-In Lumbar Support.
Standard Engine Guard: Stylish And Strong Engine Protection Comes Standard.
Key Specs
Engine Manufacturer: Kawasaki
Engine Horsepower: 15
Transmission: Hydro-Gear ZT-1800®
Fuel Capacity: 2 gal.
Ground Speed (Fwd): Up to 6 mph
Cutting Width: 34'
Cutting Height: 1.5" to 4.5"
Front Tire: 11 X 4
Drive Tire: 18 X 6.5 - 8 BigBiteT™
Warranty: 2 Year/ 200 Hour (2nd year parts only)
Engine
Engine Manufacturer: Kawasaki
Engine Horsepower: 15
Displacement: 603cc
Cooling: Air Cooled
Engine Warranty: 3 Year Warranty
Drive System
Type: Dual Hydrostatic
Transmission: Hydro-Gear ZT-1800®
Hydraulic Lines:
Reservoir Capacity:
Hydraulic Cooling:
Fuel Capacity: 2 gal.
Ground Speed (Fwd): Up to 6 mph
Parking Brake: Integrated with steering levers
Deck
Cutting Width: 34"
Cutting Height: 1.5" to 4.5"
Deck Depth: 4.1"
Deck Lift: Foot Operated
Number Of Blades: 2
Blade Length: 16.75°
Blade Tip Speed: 17,500
Spindles: Aluminum w/ 3/4" shaft and triple protection sealed ball bearings
Deck Engagement: Electric PTO Clutch
Deck Material: Fabricated 11 gauge steel
Spindle Mounts: Reinforced 14 gauge steel
Impact Trim Area: 1/4" x 3/4" steel bar
Construction
Frame: 1" X 2" steel tubing
Front Axle: Fabricated with sealed ball bearings
Front Caster Wheel: Sealed ball bearings
Front Caster Fork: Fabricated 1/4" steel
General
Seat: Bolstered seat with built-in lumbar support
Cup Holder: Yes
Dimensions
Front Tire (Inches): 11 X 4
Drive Tire (Inches): 18 X 6.5 - 8 BigBite™
Wing Tire (Inches):
Weight (Lbs): 455
Height (Inches): 40
Length (Inches): 65.4
Width W/ Chute Up (Inches): 37.5
Tire-To-Tire Width (Inches): 351
Productivity (Acres Per Hour): 1.65
Warranty
Warranty: 2 Year/ 200 Hour (2nd year parts only)
Dimensions with Catcher
Catcher Style: Side Catcher
Powered / Non-Powered: Non-powered
Catcher Capacity: 2 bushel
