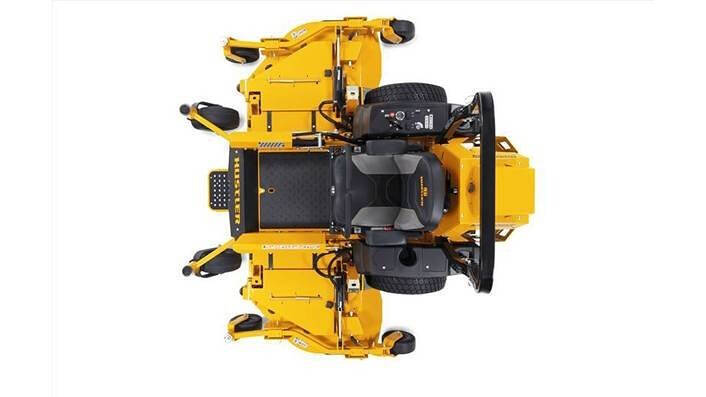

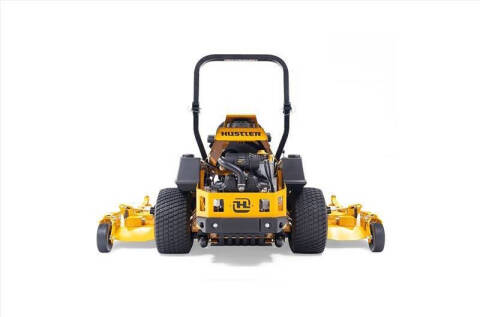

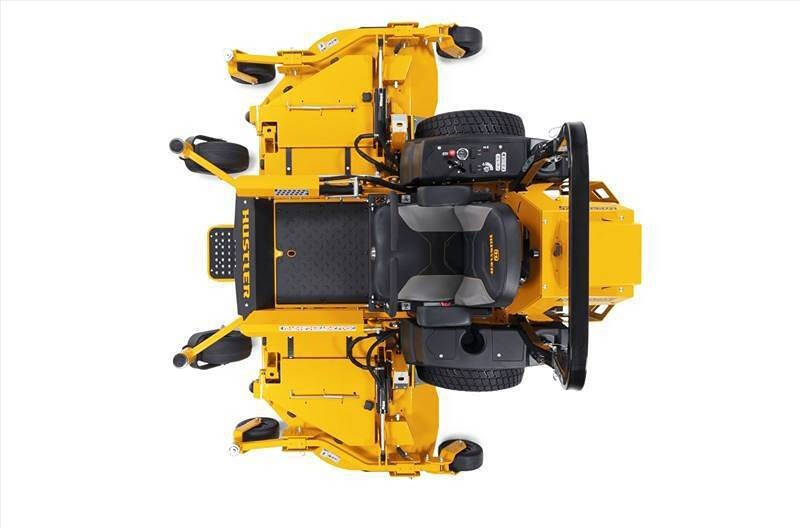

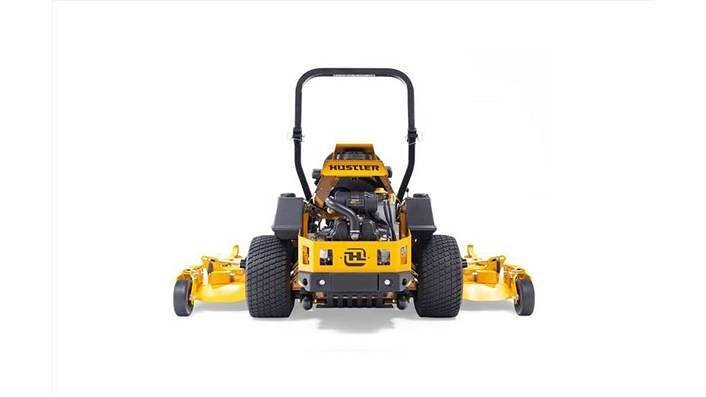

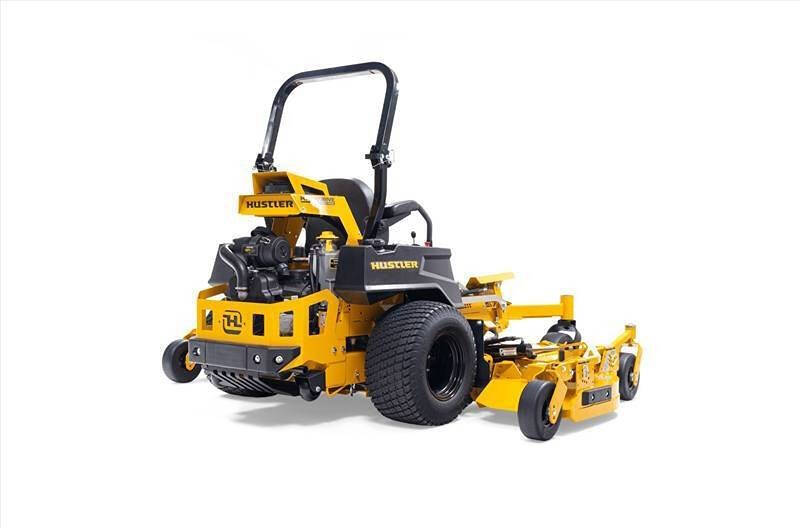

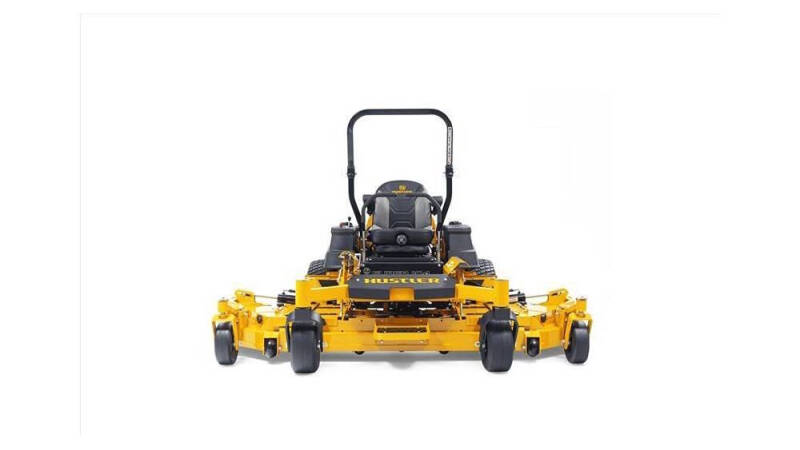

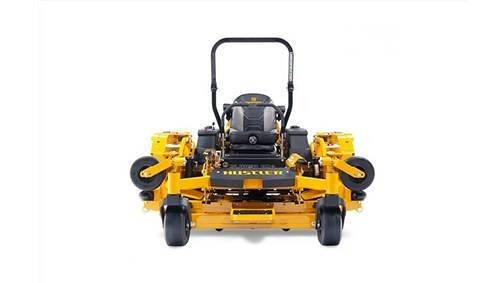

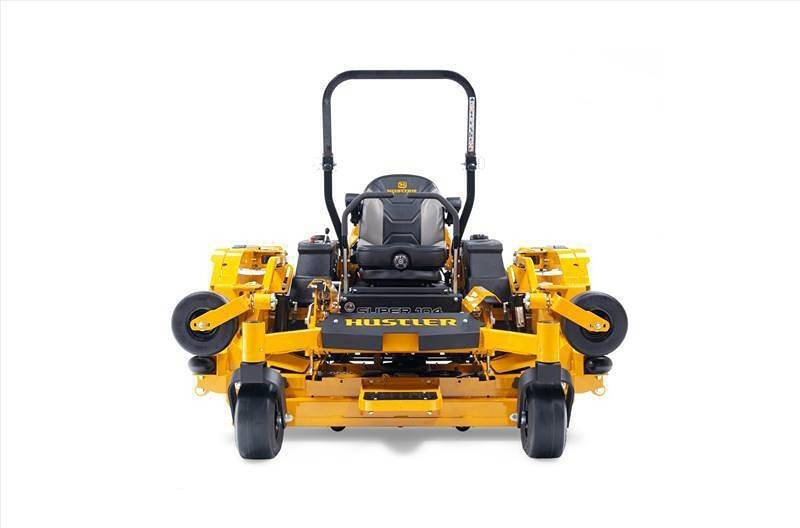

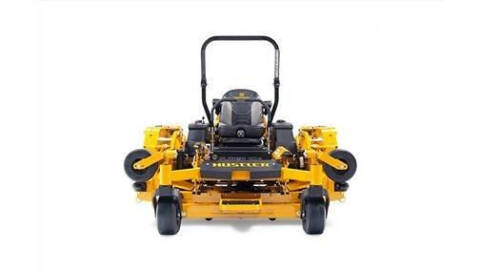

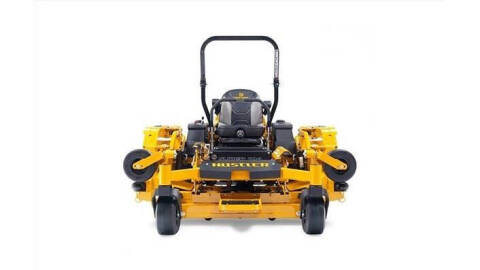

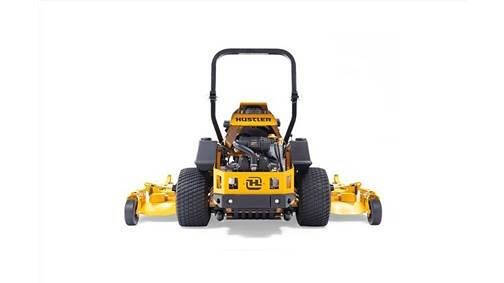

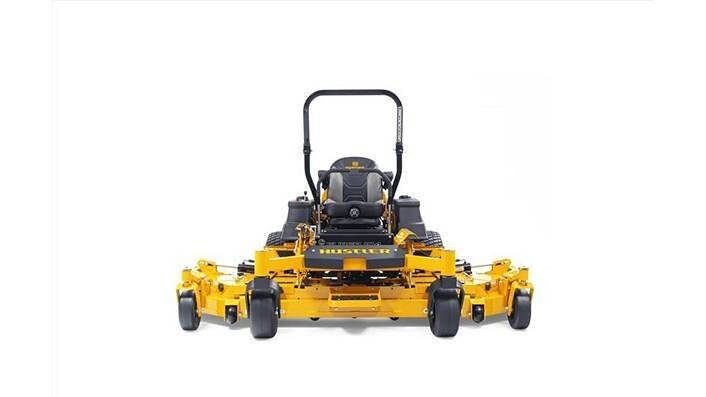

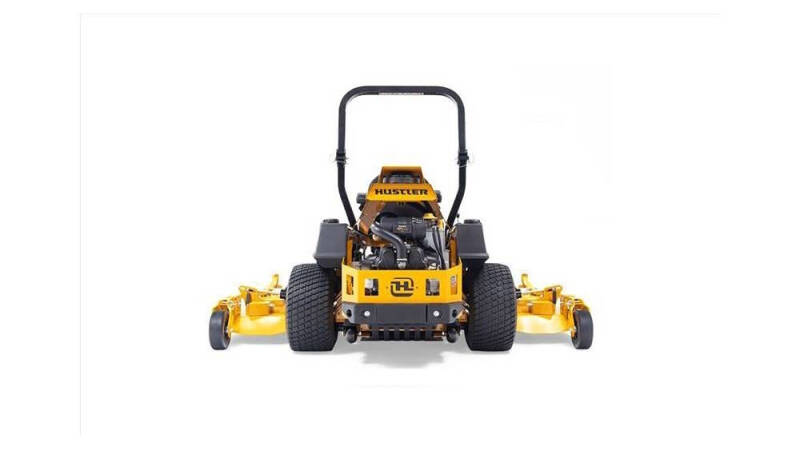

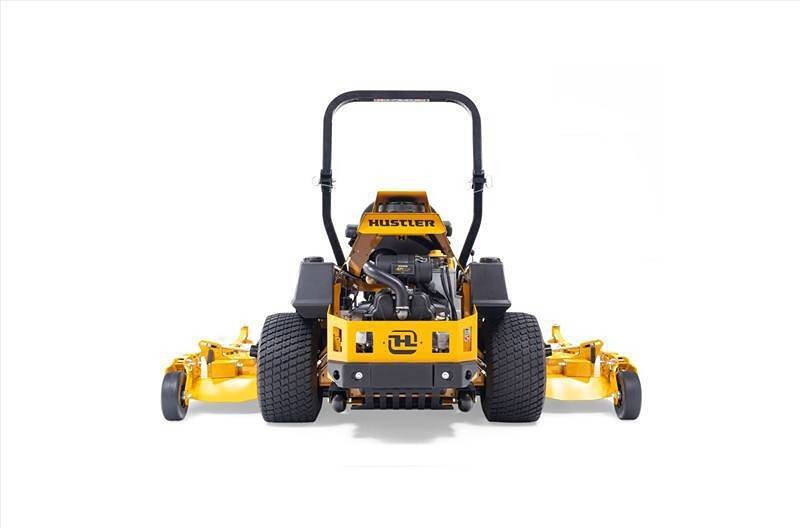

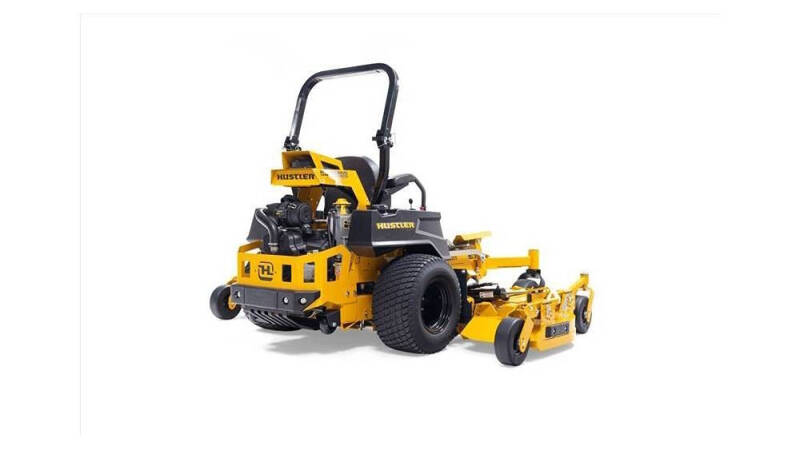

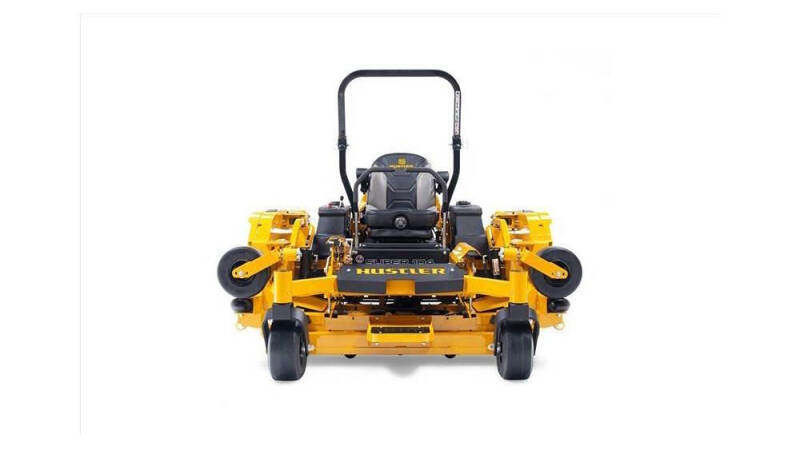

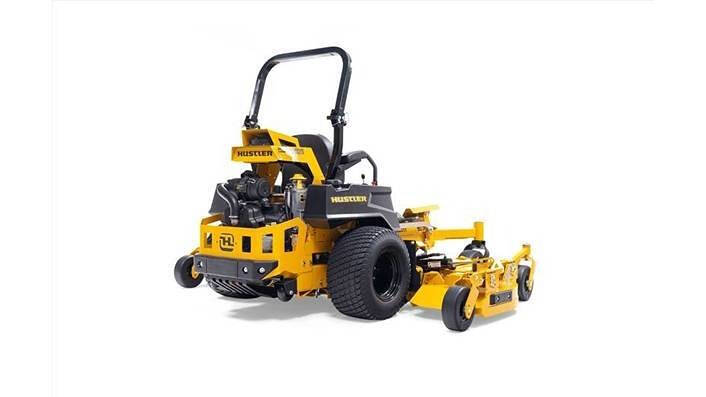

2024 Hustler Super 104

Hustler's Super 104™ can easily handle acres of work. Offering a 104" width of cut, zero-turn precision and up to an impressive 11 mph speed, this machine is in a class by itself.

Features
I3M™ Seat: High-Back Seat With Adjustable Armrests And 3-Inch Suspension Travel Range.
Hyperdrive Hydro System: A Hustler® Exclusive, Industrial-Grade Pumps And High Torque Wheel Motors, 3-Gallon Reservoir, Oil Cooler And Hot Oil Shuttle.
104" Width Of Cut: Widest And Most Productive Commercial Zero-Turn Available From Hustler Turf.
Wings Fold To 80": 80" Transport Width Fits Most Trailers Helping To Make It Easy To Transport From Job-To-Job.
Key Specs
Engine Manufacturer: Vanguard Big Block EFI Oil Guard, Kawasaki FX1000 EFI
Engine Horsepower: 40, 38.5
Transmission: Danfoss DDC20 pumps with Parker TG wheel motors
Fuel Capacity: 15 gal.
Ground Speed (Fwd): Up to 11 mph
Cutting Width: 104"
Cutting Height: 1" to 5.5"
Front Tire: 15 x 6-6
Drive Tire: 26 × 12-121
Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)
Engine
Engine Manufacturer: Kawasaki FX1000 EFI
Engine Horsepower: 38.5
Displacement: 999cc (Kawasaki)
Cooling: Air cooled
Air Cleaner: Remote Canister
Engine Warranty: 3 Year Limited
Drive System
Type: Dual Hydrostatic
Transmission: Danfoss DDC20 pumps with Parker TG wheel motors
Hydraulic Lines: Stainless Parker Seal-Loc Technology
Reservoir Capacity: 3 gallons
Hydraulic Cooling: Oil Cooler w/9" fan
Fuel Capacity: 15 gal.
Ground Speed (Fwd): Up to 11 mph
Parking Brake: Integrated with steering levers
Deck
Cutting Width: 104"
Cutting Height: 1" to 5.5°
Deck Depth: 5.5"
Deck Lift: Hydraulic powered
Number Of Blades: 5
Blade Length: 23.86" - 20.5"
Blade Tip Speed: Wing Decks: 15,800; Center Deck: 15,500
Spindles: Ductile cast iron with steel shaft and sealed ball bearings
Deck Engagement: Electric PTO Clutch
Deck Material: 11 gauge welded steel
Spindle Mounts: Reinforced 7 ga doubler
Impact Trim Area: 1.5" x.375" steel bar
Construction
Frame: 1.5" X 3" steel tubing
Front Axle: Fabricated with tapered roller bearings
Front Caster Wheel: Tapered wheel bearings and debris cap
Front Caster Fork: Fabricated 1/2" steel
Dimensions
Front Tire (Inches): 15 × 6-6
Drive Tire (Inches): 26 × 12-12
Wing Tire (Inches): 11 x 4 Semi-Pneumatic
Weight (Lbs): 2500
Height (Inches): 54" (71.5" w/ ROPS)
Length (Inches): 95.5°
Width W/ Chute Up (Inches): 106.1 wings down, 80" wing up at gauge wheel, 72.5" deck base
Tire-To-Tire Width (Inches): 60.3
Productivity (Acres Per Hour): 9.24
General
Seat: I3M Suspension Seat (adjustable armrests & back)
Cup Holder: Yes
Warranty
Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)
