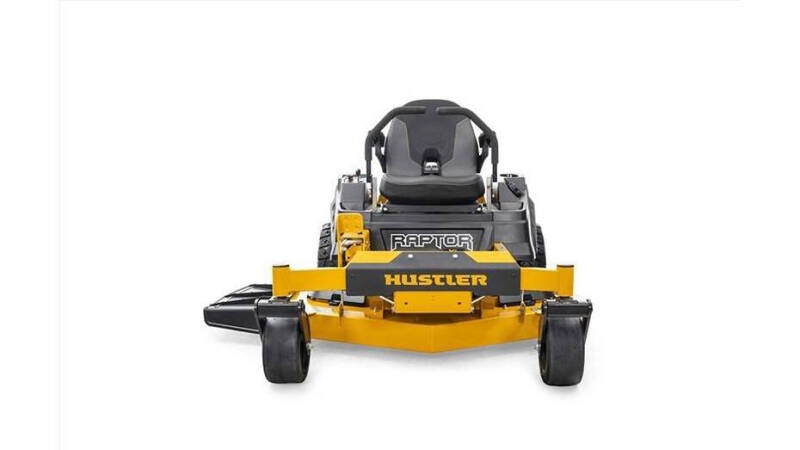

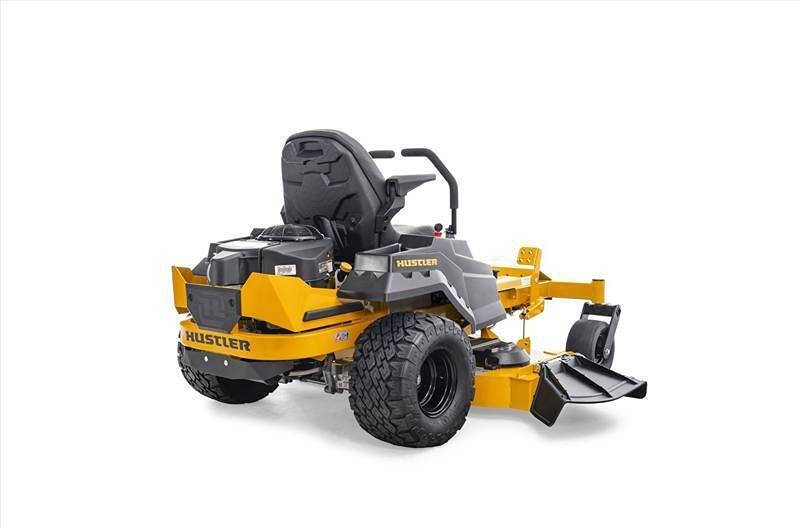

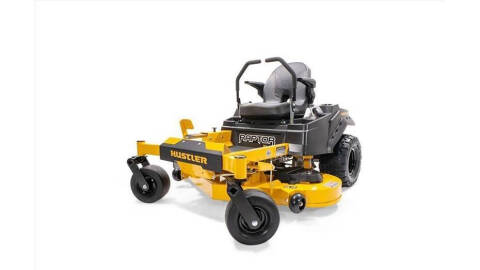

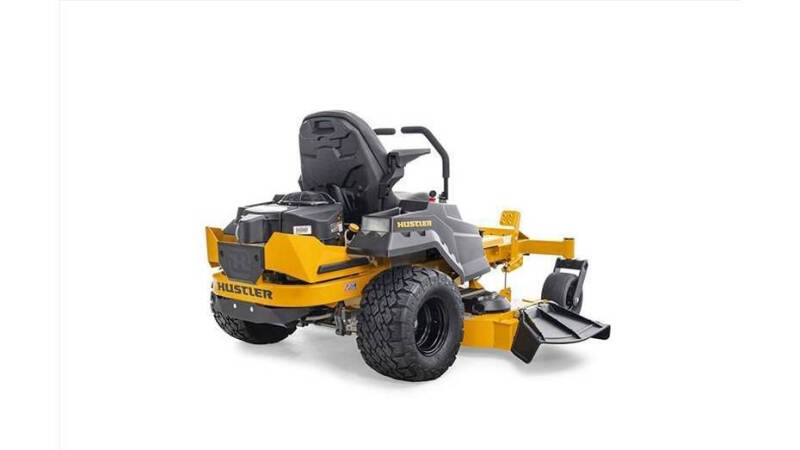

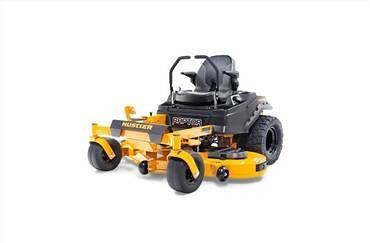

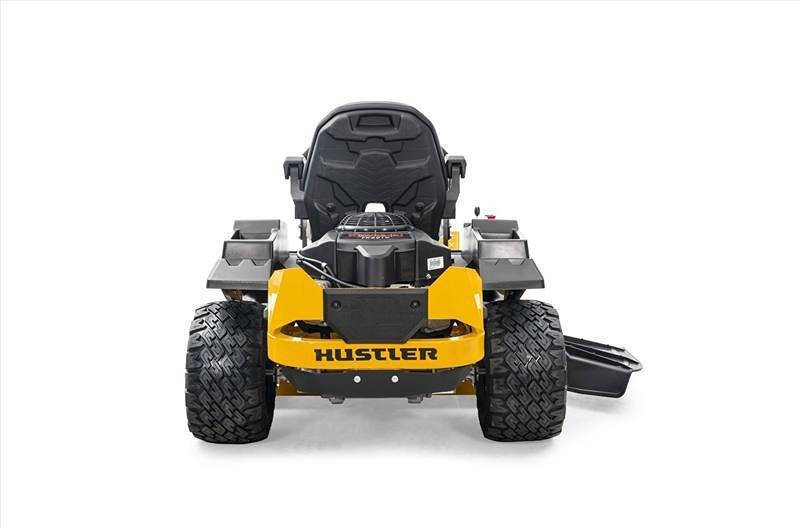

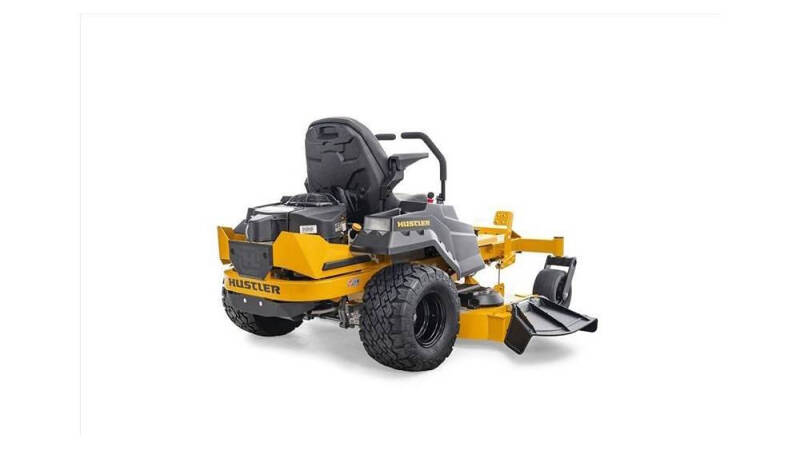

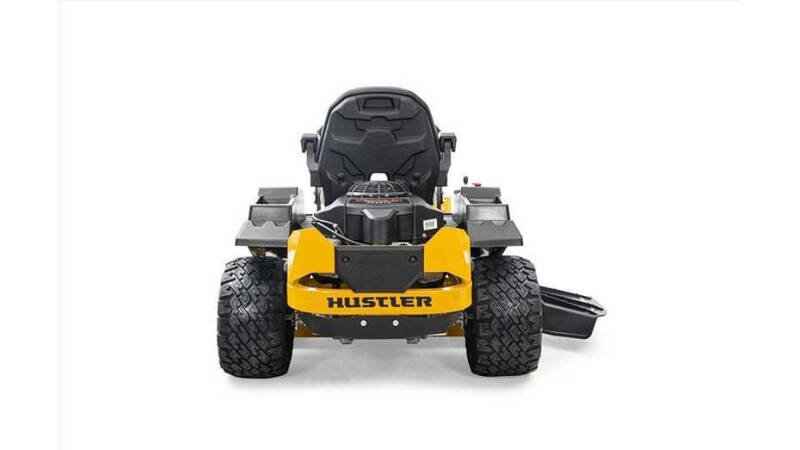

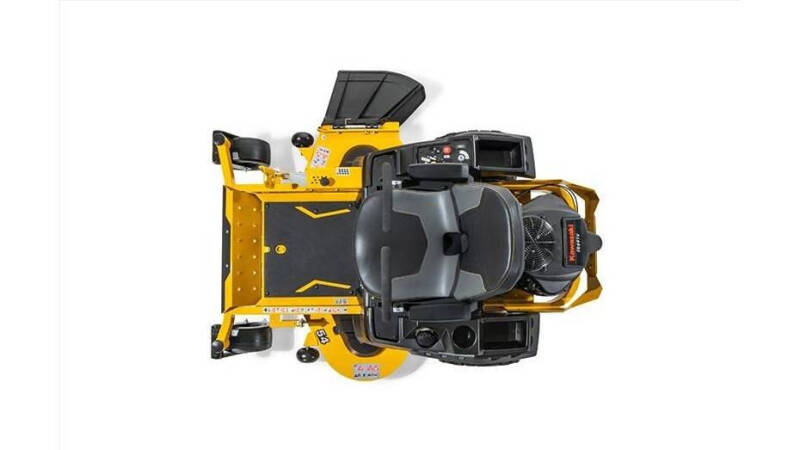

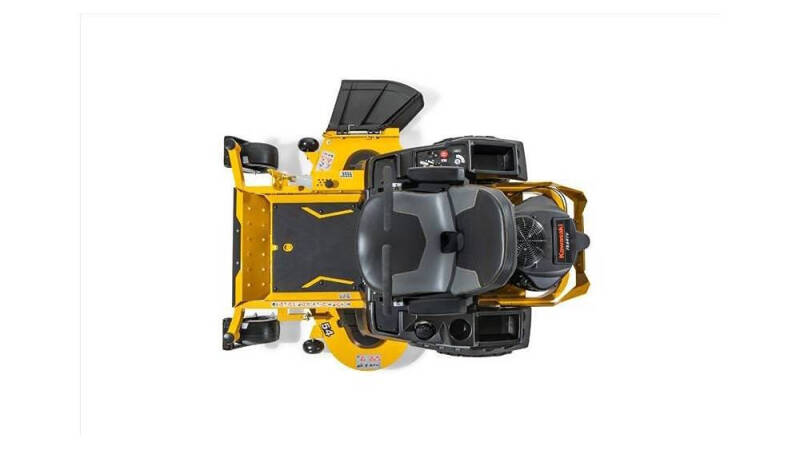

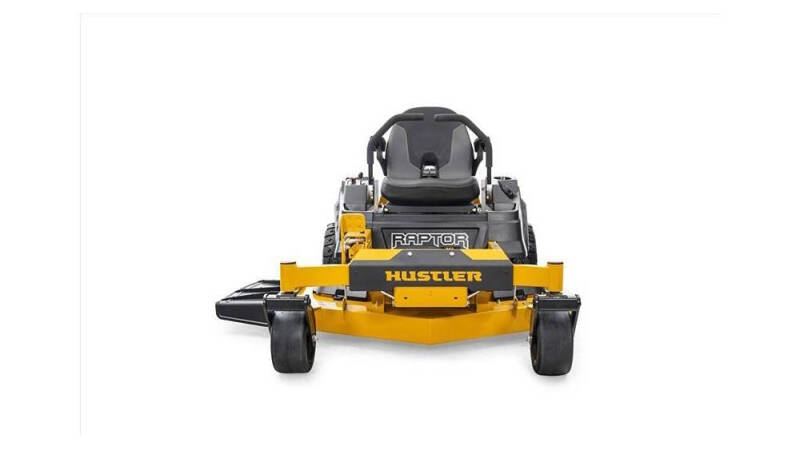

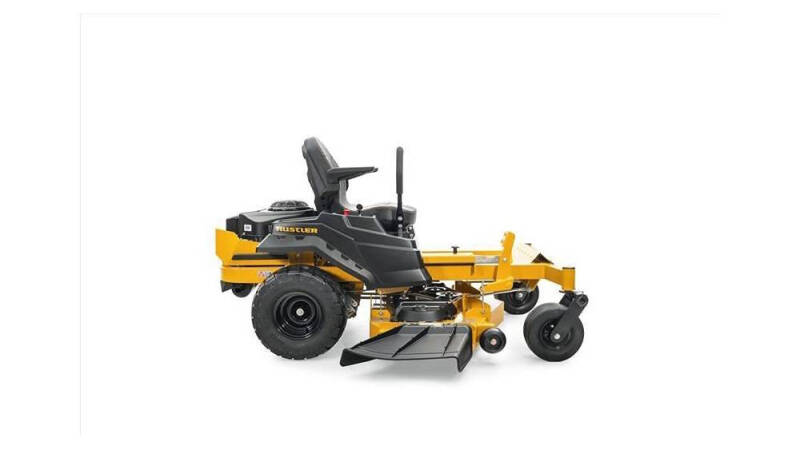

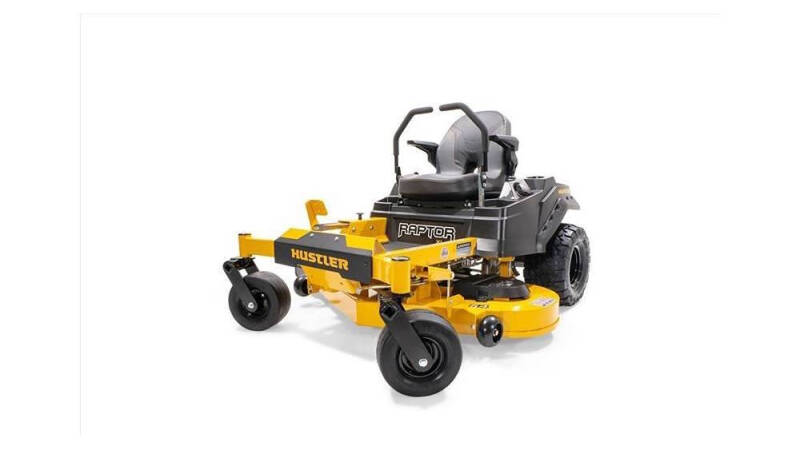

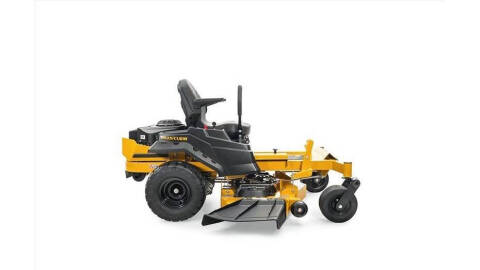

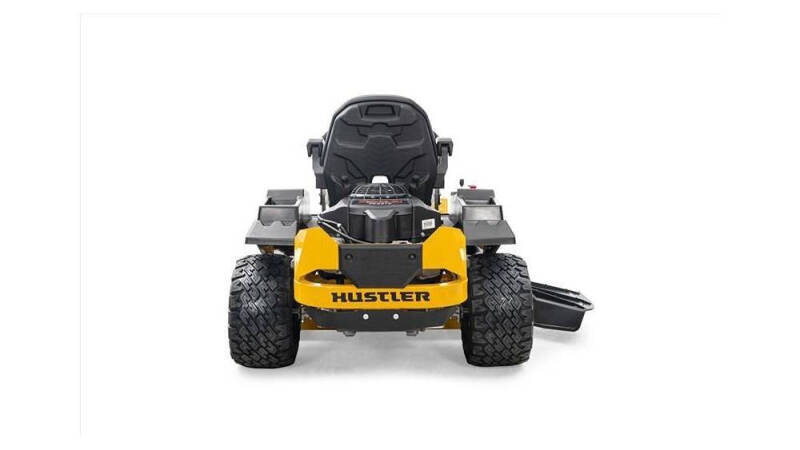

2024 Hustler Raptor XD

The Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a crisp, clean cut-quality. Raptor XDs are backed by a 3yr / 300hr limited warranty.

Features
Welded Steel Deck: Welded fabricated steel deck helps add durability and can extend the mower's life.
Wider Stance: Designed to provide ample room adding to the comfort for the operator.
SmoothTrak Steering: Precision control designed to help trim and maneuver easily around obstacles.
Bolstered Seat: Helps provide a comfortable ride with armrests and airflow to the back.
Rubber Floor Mat: Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.
Fabricated Frame: Continuous one-piece 1½ inch by 3 inch welded tubular frame.
Foot-Operated Deck Lift: Easily adjust the deck height between 1.5" - 4.5".
Easy to Service: Flip-up seat pan, removable floor pan, vented pulley covers.
Exclusive BigBite Rear Tires: We worked directly with the tire manufacturer on this design.
Kawasaki® Power: Powered by a V-Twin Kawasaki® Engine.
Key Specs
Engine Manufacturer: Kawasaki FR730
Engine Horsepower: 24
Transmission: Hydro-Gear ZT-2800®
Fuel Capacity: 3 gal.
Ground Speed (Fwd): Up to 7.5 mph
Cutting Width: 60"
Cutting Height: 1.5" to 4.5"
Front Tire: 13 x 6.5
Drive Tire: 20 x 8-10 BigBite ™
Warranty: 3 Year/300 hour residential
Engine
Engine Manufacturer: Kawasaki FR730
Engine Horsepower: 24
Displacement: 726cc
Cooling: Air Cooled
Engine Warranty: 3 Year Warranty
Drive System
Type: Dual Hydrostatic
Transmission: Hydro-Gear ZT-2800®
Fuel Capacity: 3 gal.
Ground Speed (Fwd): Up to 7.5 mph
Parking Brake: Integrated with steering levers
Construction
Frame: 1.5" X 3.0" steel tubing
Front Axle: Fabricated with sealed ball bearings
Front Caster Wheel: Sealed ball bearings
Front Caster Fork: Fabricated 3/8" steel
General
Seat: Bolstered high-back seat with armrests and built-in lumbar support
Cup Holder: Yes
Dimensions
Front Tire (Inches): 13 x 5
Drive Tire (Inches): 20 x 12-10 BigBite™
Weight (Lbs): 680
Height (Inches): 43.7
Length (Inches): 71.1
Width W/ Chute Up (Inches: 64.4
Tire-To-Tire Width (Inches): 48.6
Productivity (Acres Per Hour): 3.64
Warranty
Warranty: 3 Year/300 hour residential
Dimensions with Catcher
Catcher Style: 2-bag
Powered / Non-Powered: Non-powered
Catcher Capacity: 5.4 bushel
Mower Length W/ Catcher: 91.4
Mower Width W/ Catcher: 56.5
