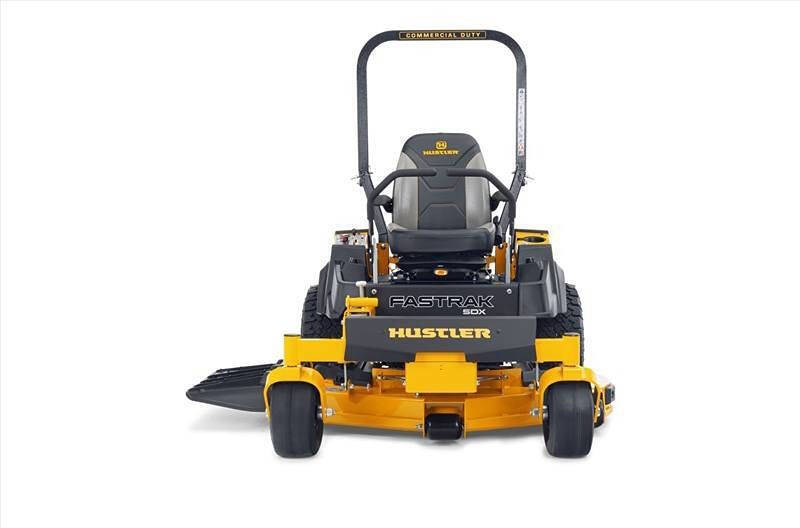

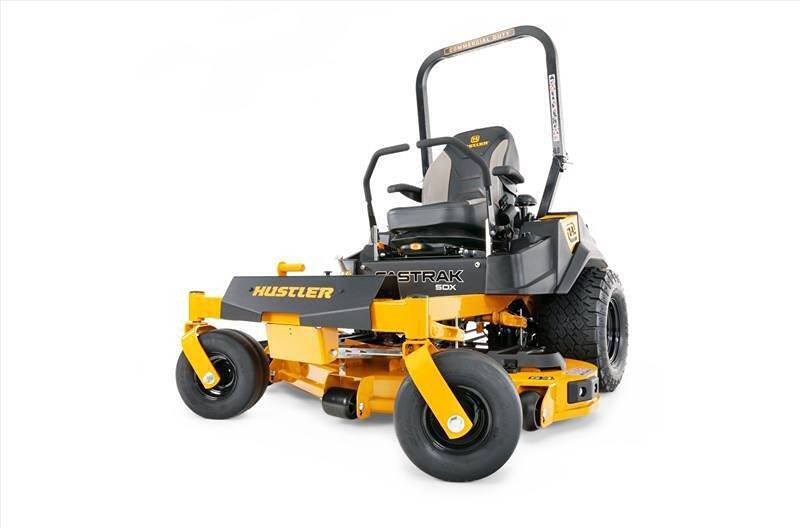

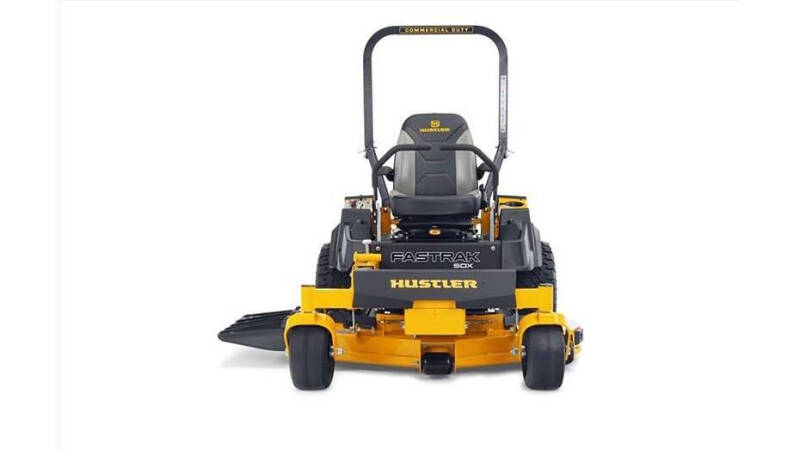

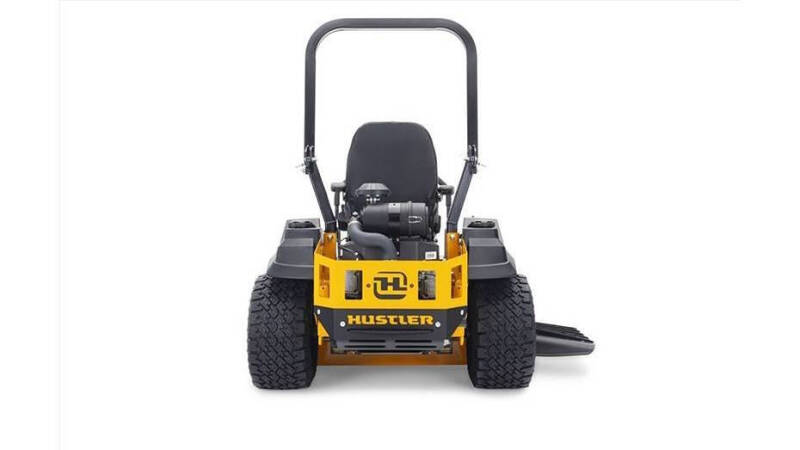

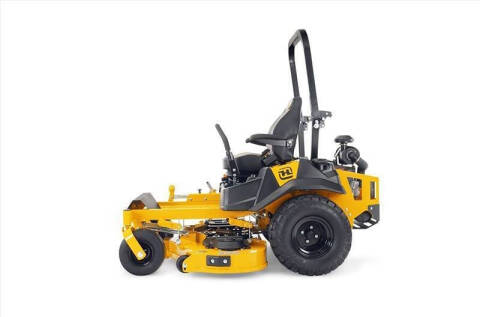

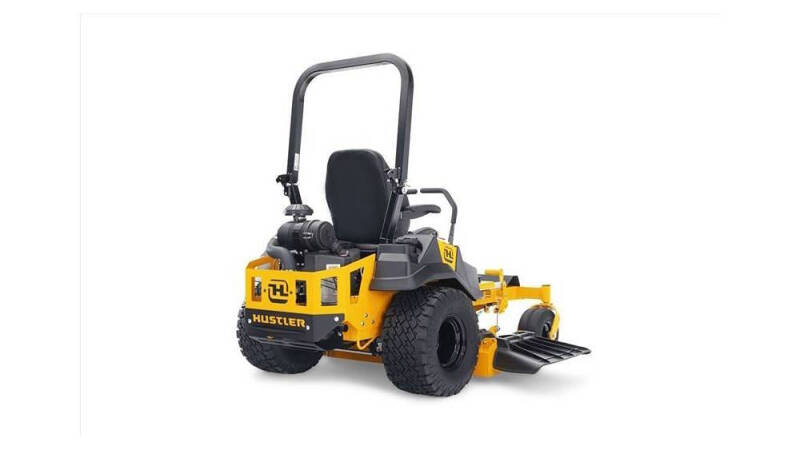

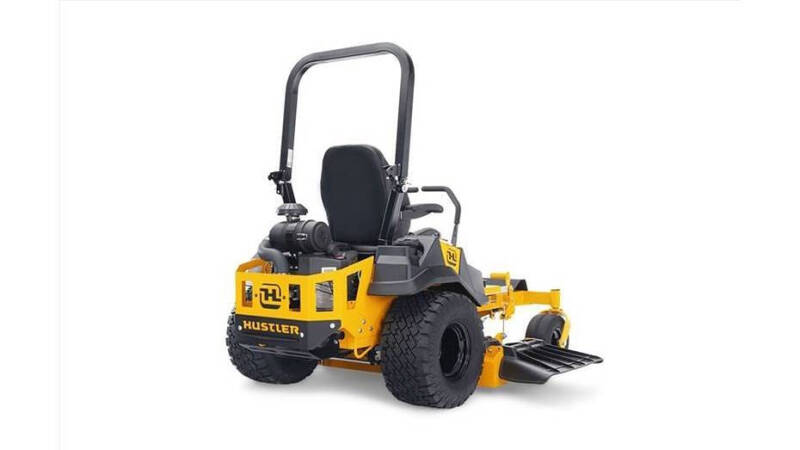

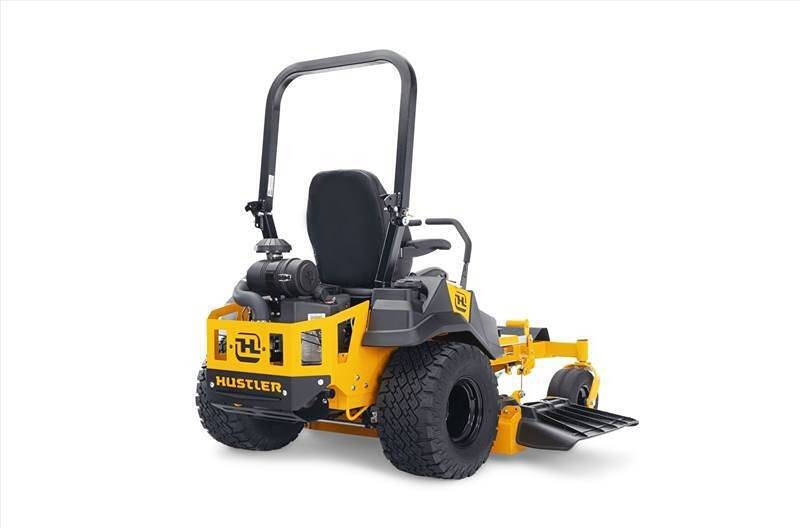

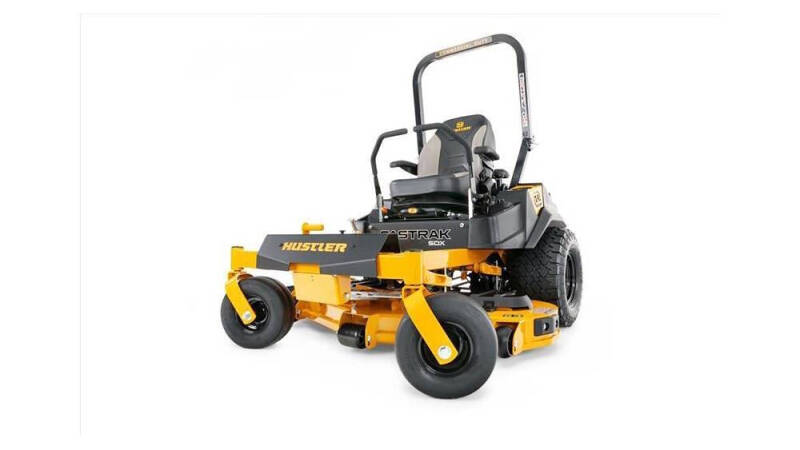

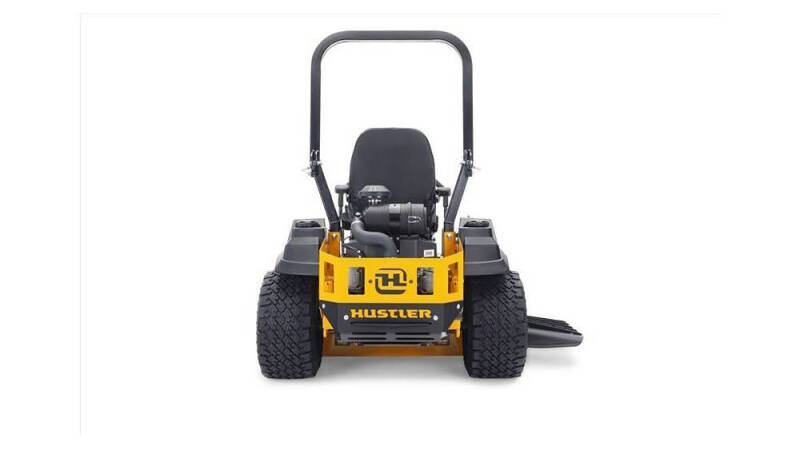

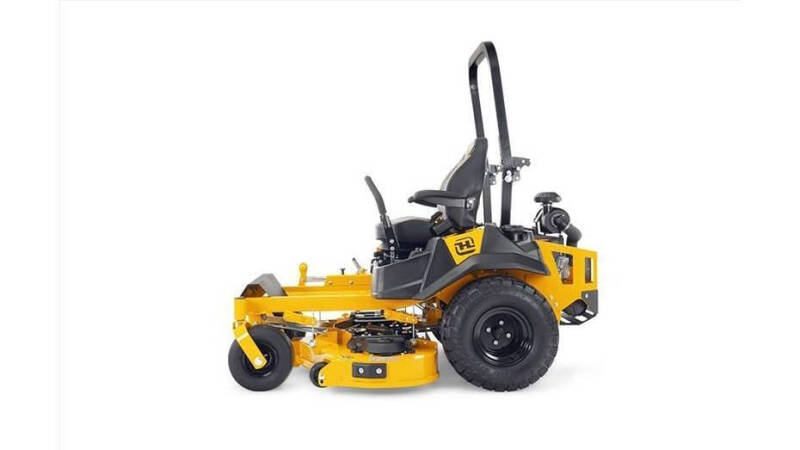

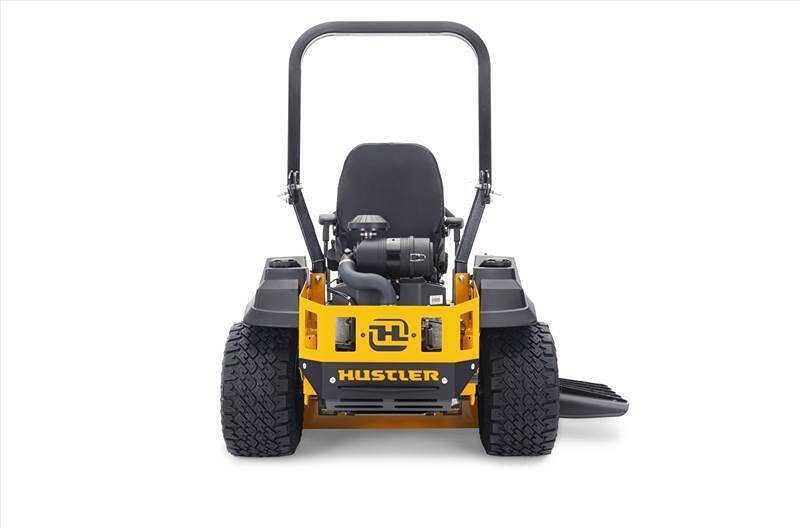

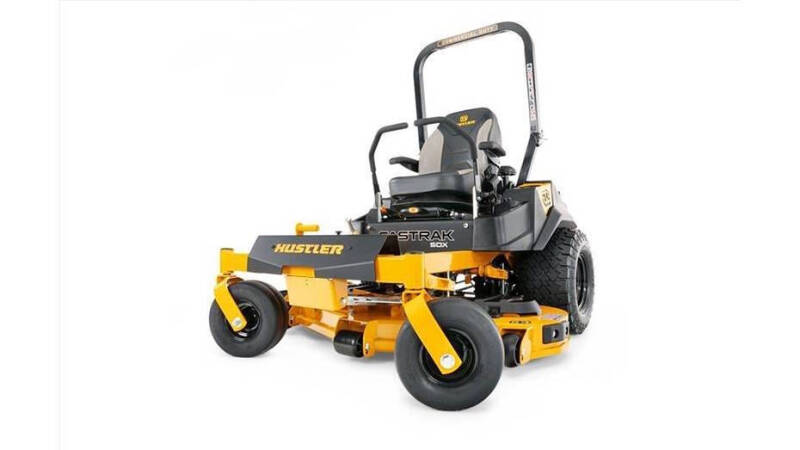

2024 Hustler FasTrak

All-New Redesigned FasTrak SDX

?The FasTrak SDX is the perfect mower to start your lawncare business, grow your lawncare business or mow residential large acreages like at a farm, ranch or place of business. The new additions include two USB ports, dual fuel tanks, rubber floor mat, frame tie-downs and cast deck hangers.



Upgrades from the FasTrak:



Larger Hydro-Gear ZT-3400™ transmissions compared to ZT-3200™

Kawasaki FX Engine compared to the FT Engine

Upgraded suspension seat

4yr/1000hr warranty compared to 4yr/750hr

?

Features
Remote Cannister Air Cleaner: Kawasaki Fx Engines With Full Commercial Remote Canister Air Cleaner.
Serviceable Commercial-Grade Transmissions: Serviceable Commercial-Grade Hydro-Gear Zt-3400™ Transmissions.
Extra High-Back Suspension Seat: Features An Extra High Back, A Tubular Frame, And Armrests. Additional Bolstering For Side-To-Side Support, And Internal Suspension To Help Absorb Bumps. Engineered Cushions To Help Relieve Pressure On Your Spine And Lower Back.
Easy Serviceability: Flip-Up Seat Pan, Removable Floor Pan And Toolless Removable Pulley Covers Help Make Maintenance Easy And Simple.
Cast Deck Hangers: Designed To Help Improve Durability.
Front And Rear Tie Downs: Front Tie Downs Located On Both Sides Of The Front Of The Frame. Rear Tie Downs Located On The Bottom Of Either Side Of The Rear Engine Guard.
Dual Usb Ports: Dual Usb Ports Located Next To The Seat
Rubber Floor Mat: Standard Rubber Floor Mat For Added Operator Comfort
Key Specs
Engine Manufacturer: Kawasaki FX691
Engine Horsepower: 22
Transmission: Hydro-Gear ZT-3400@
Fuel Capacity: 3.5 gal.
Ground Speed (Fwd): Up to 10 mph
Cutting Width: 54"
Cutting Height: 1.5" to 4.5"
Front Tire: 13 × 6.5-6
Drive Tire: 23 × 11-10 BigBite™
Warranty: 4 years or 1000 hours
Engine
Engine Manufacturer: Kawasaki FX691
Engine Horsepower: 22
Displacement: 726cc
Cooling: Air Cooled
Air Cleaner:
Engine Warranty: 3 Year Limited
Drive System
Type: Dual Hydrostatic
Transmission: Hydro-Gear ZT-3400®
Fuel Capacity: 8.5 gal.
Ground Speed (Fwd): Up to 10 mph
Parking Brake: Integrated with steering levers
Deck
Cutting Width: 54"
Cutting Height: 1.5" to 4.5"
Deck Depth: 5"
Deck Lift: Foot Operated
Number Of Blades: 3
Blade Length: 18.50"
Blade Tip Speed: 18,900
Spindles: Aluminum with 1" shaft and sealed ball bearings
Deck Engagement: Electric PTO Clutch
Deck Material: Fabricated 10 gauge
Spindle Mounts: Reinforced 11 gauge
Impact Trim Area: 11 gauge formed channel with rolled edge
Construction
Frame: 1.50" X 3" steel tubing
Front Axle: Fabricated with sealed ball bearings
Front Caster Wheel: Tapered roller bearings - grease-able
Front Caster Fork: Fabricated 3/8" steel
General
Seat: Extra High-Back Suspension Seat
Cup Holder: Yes
Dimensions
Front Tire (Inches): 13 x 6.5-6
Drive Tire (Inches): 23 x 11-10 BigBite™
Weight (Lbs): 925
Height (Inches): 48.9, 68.7 w/ ROPS up
Length (Inches): 76.7
Width W/ Chute Up (Inches): 55
Tire-To-Tire Width (Inches): 51.5
Productivity (Acres Perhour): 4.36
Warranty
Warranty: 4 years or 1000 hours
Dimensions with Catcher
Catcher Style: 2-bag
Powered / Non-Powered: Powered
Catcher Capacity: 7.2 bushel
Mower Length W/ Catcher: 98"
Mower Width W/ Catcher: 63"
Style 2: Catcher Style: Bac-Vac
Style 2: Powered / Non-Powered: Powered
Style 2: Catcher Capacity: 8 bushell
Style 2: Mower Length W/Catcher: 88.75"
Style 2: Mower Width W/Catcher: 63"
