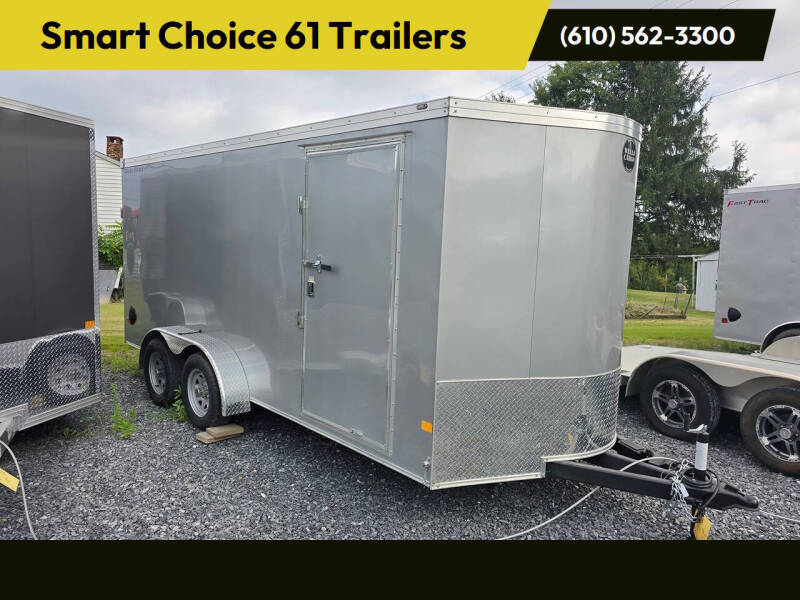

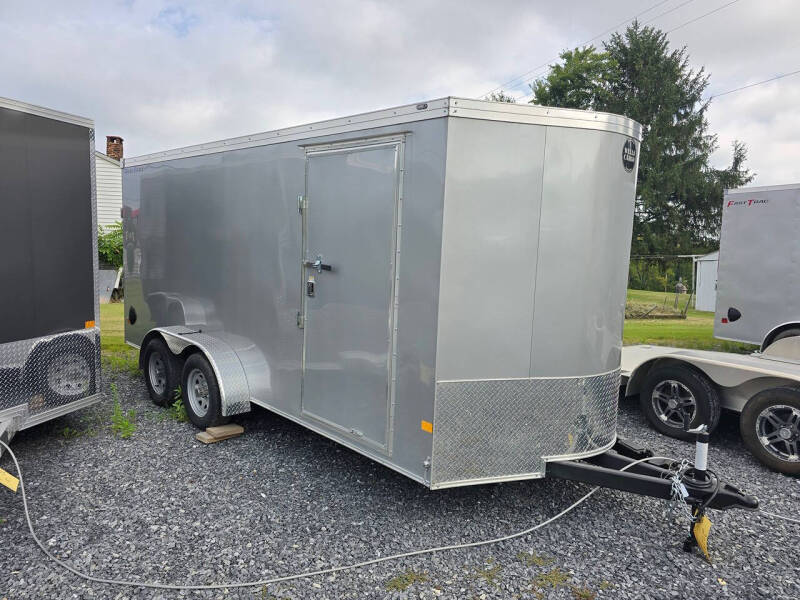

2025 Wells Cargo RFV716T2

The 2025 Wells Cargo RFV716T2 7K enclosed trailer has a 7,000 lb GVWR and a curb weight of approximately 2,275 lbs. Its payload capacity is around 4,725 lbs. The trailer is 16 feet long, 7 feet wide, and has a 6'6" interior height. It features a rear ramp door, a side entry door, and a V-nose design.
Here's a more detailed breakdown:
Dimensions:
Body Length: 17'6"
Body Width: 7'0"
Overall Length: 20'0"
Overall Width: 8'6"
Overall Height: 8'2"
Interior Length: 17'3"
Interior Width: 6'9"
Interior Height: 6'6"
Rear Door Opening: 78" wide x 72" high
Pass-Thru Door Opening: 36" wide x 66" high
Weights:
Curb Weight: 2,275 lbs
GVWR (Gross Vehicle Weight Rating): 7,000 lbs
Payload Capacity: 4,725 lbs
Other Features:
Axles: Tandem axles with electric brakes
Frame: 2" x 4" tube main rails
Tires: ST205/75R15, Load Range C
Electrical: 12V male connection, 4-way
Roof: 1-piece aluminum roof
Exterior: .030 aluminum, bonded (no screws)
Flooring: 3/4" PlexCore High-Performance Interior Decking
Sidewalls: 3/8" PlexCore High-Performance Interior Sidewalls
Stoneguard: 24" ATP Stoneguard
Side Door: 36" side entry door with flush lock
Rear Door: Ramp door with spring assist
Warranty: 3-Year Limited Warranty
