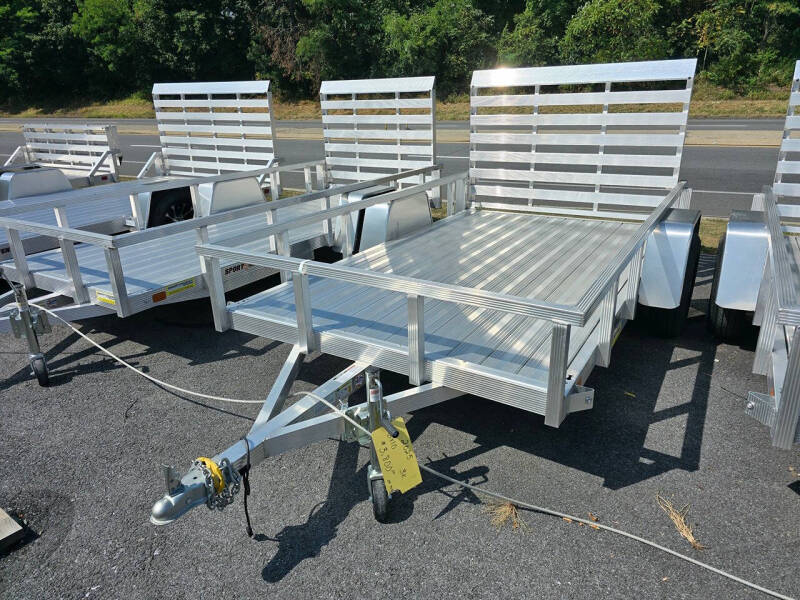

2025 Sport Haven Trailer AUT610D

EXCLUSIVE AUT MODEL FEATURES
Features you will not find on other brands:
Spare Mount Side Rail Upright
Ratchet Strap Hook or Single Stud Tie-Down Receiver
5/4" x 6 " ProWood Dura Color Treated Decking
Rear, Removable 3-position Ramp
Side Frame Tie-Down Receiver

NOTABLE AUT MODEL FEATURES
15" Radial Tires
Features you might not find on other brands:
1,000 lb. Swivel Jack with Wheel
Aluminum Through-Bolted Hinge
Spring Loaded Latch Gate
15" Radial Tires
Aluminum Fenders

LED Lighting
AUT MODEL CONSTRUCTION
Fluted Aluminum Tubing is Stronger and More Scratch Resistant
than Regular Smooth Sided Aluminum
Jig Welded Construction for Consistency,
Quality Fluted Aluminum Tube Tongues and Tongue Supports
Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)
2" Wide Aluminum Tube Top Deck Top Rails
Aluminum Tube Top Deck Rail Uprights
Jig Welded Construction

AUT MODEL OPTIONS
Popular Options:
Aluminum Treadplate Sides
Aluminum Wheel Upgrade
Lateral Ramp (5' Wide)
Bi-fold Ramp (Rear and/or Side)
Trailer Brakes (Standard on Tandem Axle, Optional on Single Axle)
Treadplate Sides


AUT-LR:
Aluminum Ramps built into side rails
Aluminum Wheel Upgrade
Side Load from either side
Built in Spare tire mount holes
Aluminum or wood decking
AUT712, AUT714, AUT714T thru AUT724T
Available in deluxe w/Aluminum decking

AUT MODEL SINGLE AXLE TRAILER SPECIFICATIONS

Construction Specs
Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
2" Wide Top Deck Rail
2" x 2" Top Deck Rail Uprights
5/4" x 6" ProWood DuraColor Decking
All Aluminum 4' Rear Ramp

Component Specs
LED Lights
15" Silver Powder Coated Wheels
15" Radial Tires
3,500 lb Capacity Axles
Double Eye Spring Suspension
3,500 lb Capacity Zinc Plated Couplers
3,200 lb Capacity, 27" Safety Chains
1,000 lb capacity Swivel Wheel Jack

Misc Specs
4-Way Flat Wiring Harness
2" Ball
14" Hitch Height
17" Deck Height
13" Rail Height Above the Deck
2,990 lb Gross Vehicle Weight Restriction (GVWR)

MODEL AUT610
Deck L x W 120” x 72”
Overall L x W 162” x 90”
Tongue* (1) 3" x 3" Fluted
Tongue Supports* (2) 1.75" x 3" Fluted
Frame Outer Rails* (2) 2" x 4" Fluted
Frame Crossmembers* Front & Rear (2) 3" x 4" Fluted
Frame Crossmembers* Middle** (4) 1.75" x 3" Fluted
Curb Weight 580 lbs
Payload Capacity 2410 lbs
Standard 4' Ramp Weight Capacity*** 1,750 lbs
Optional 4' Folding Ramp Weight Capacity*** 1,500 lbs

* Fluted Aluminum Tubing is stronger and more scratch resistant that regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
