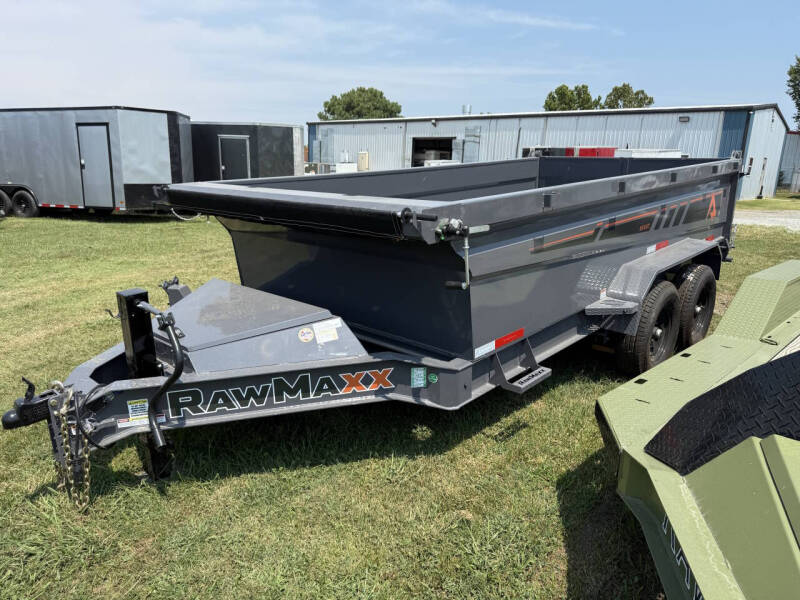

This ad is for a new Rawmaxx 14ft dump trailer
2026 GDX Knight
$10,295
Trailer Specs
Dimensions
Length: 14'
Width: 83"
Deck Height: 28"
Weight Rating
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,810 lbs.
Load Capacity: 10,569 lbs.
Finish
Type: Powder Coat
Prep: Grit Blast
Standard Color: Jet Black
Warranty
Axle: 5 Year Dexter
Trailer: 3 Year Structural / 1 Year Paint
Tongue
Coupler
Coupler: 2-5/16” Adjustable Ball Coupler
Jacks
Jack: 1 Side Wind Drop Leg. - 10,000 lbs.
Tool Box

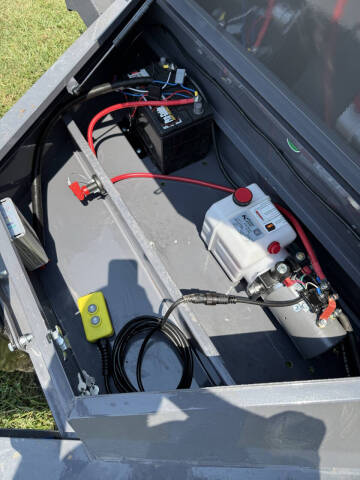

Tongue Tool Box: Tool Box for Pump, Battery & Charger
Tongue
Tongue: 8" x 13 lb. I-beam
Tongue Length: 65"
Safety System
Safety Chains: 3/8" G70 Safety Chains
Breakaway System: Electric Breakaway Kit
Reflective Tape: 3M DOT Compliant Reflective Tape
Chassis
Frame
Main Frame: 8" x 13 lb. I-beam Frame
Cross-Member: 4" x 3" x 3/16" Tubing
Dump Bed
Tilt Frame
Type: 5' x 5" x 3/8" Angle
Cross-Members: 3" Channel / 16" Spacings

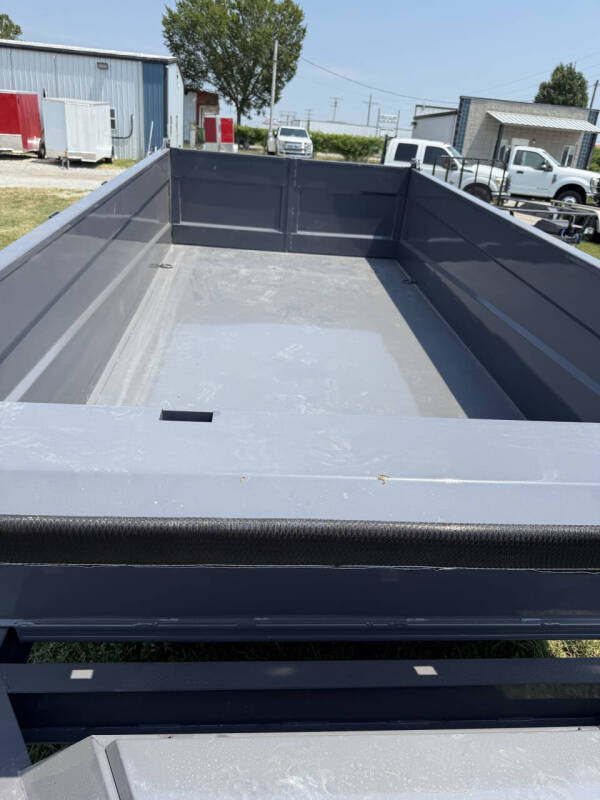

Dump Bed
Inside Width: 83"
Side Height: 32"
Side Walls: 12G Formed Walls
Flooring: 9G Floor
Fenders: 12G Diamond Plate Steel
D-Rings: 4 D-Rings (Welded Inside Corners)
Rear Gate
Gate: 3 Way Doors
Latching System: EZ Slam Door Latches
Ramps: 6' Slide-In Channel Ramps
Lift System
Power: Hydraulic - Powder Up - Down
Pump: KTI 12V Hydraulic Pump
Controller: 14' Cable with Control

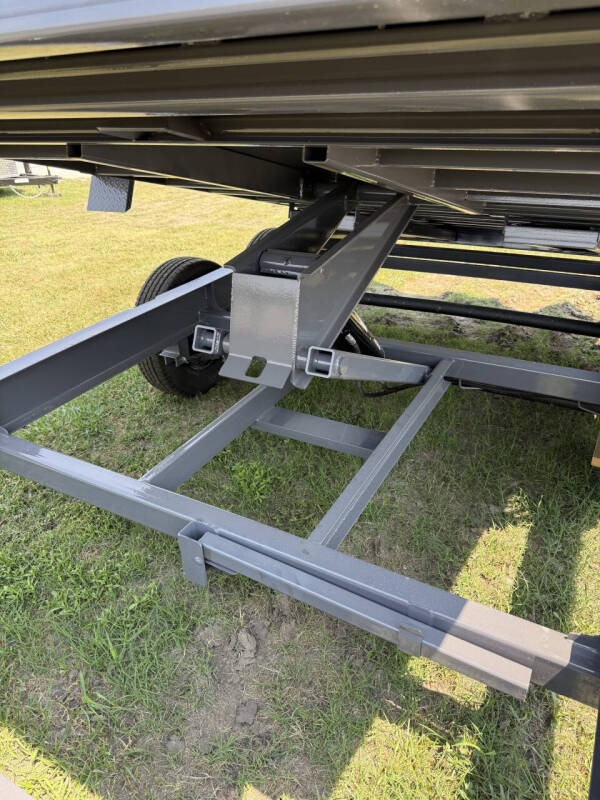

Scissor: Heavy Duty Scissor Lift
Cylinder: 5" x 16" Cylinder
Tilt Angle: 41°
Tarp
Manual Tarp Kit
Running Gear
Tires
Type: Radial Tires
Size: ST235/80R16
Ply: 10 Ply
Rating: 3,520 lbs.
Rims: 16” Black Mod Wheels
Bolt Pattern: 8 on 6.5”
Suspension
Axle Type: Spring
Axles: 2
Rating: 7,000 lbs.
Brakes: Electric
Electrical & Lighting
Wiring
Front Plug 7 - Way RV
Frame Wiring: All Weather Wiring Harness
Lighting
Side Markers: 3/4" LED Bullet Lights
Turn Flashers 2" x 6" Amber Side Turn Lights
Rear Lights: DOT Approved LED Lights
Battery & Charging
Battery: 27M Deep Cycle Marine Battery
Charging System: 110V Integrated Trickle Charger
