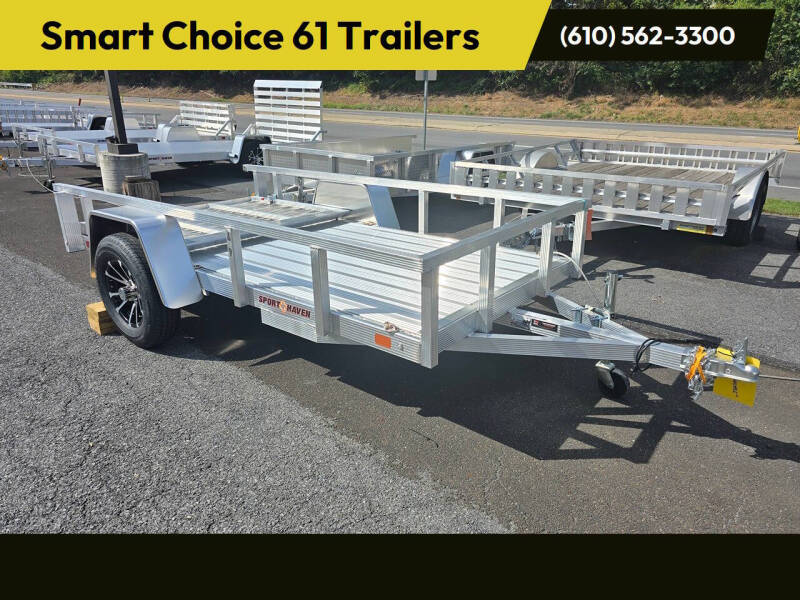

2026 Sport Haven Trailer AUT510D

Features you will not find on other brands:

Integrated Spare Tire Mount Side Rail Upright - made to fit spare tire mount kit.

Ratchet Strap Hook or Single Stud Tie-Down Receiver - versatile with multiple securement options.

5/4" x 6 " ProWood Dura Color Treated Decking - DuraColor treatment retains color longer and reduces cracking, warping, or splitting, minimizing upkeep.


Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.

Spare Mount Side Rail Kit

Features you might not find on other brands:

1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing

Aluminum Through-Bolted Hinge - 2 piece bolt through hinge

Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position

15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling

Aluminum Fenders - corrosion resistant, lightweight, and durable

LED Lighting - Limited Lifetime LED warranty

luted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum

Jig Welded Construction for Consistency, Quality

Fluted Aluminum Tube Tongues and Tongue Supports

Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)

2" Wide Aluminum Tube Top Deck Top Rails

Aluminum Tube Top Deck Rail Uprights

Popular Options:

Aluminum Treadplate Sides
Aluminum Wheel Upgrade
Lateral 5' Ramp (7' Wide Models)
Bi-fold Ramp (Rear and/or Side)
Trailer Brakes (Standard on Tandem Axle, Optional on Single Axle)

Bi-Fold Ramp

AUT-LR:

Aluminum Ramps built into siderails
Aluminum Wheel Upgrade
Side Load from either side
Built in Spare tire mount holes (kit sold separately)
ProWood DuraColor Decking
AUT712, AUT714, AUT714T thru AUT724T

Construction Specs

Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
2" Wide Top Deck Rail
2" x 2" Top Deck Rail Uprights
5/4" x 6" ProWood DuraColor Decking
All Aluminum 4' Rear Ramp
Component Specs

LED Lights
15" Silver Powder Coated Wheels
ST207/75R15C Radial Tires
3,500 lb Capacity Axles
Double Eye Spring Suspension
3,500 lb Capacity Zinc Plated Couplers
3,200 lb Capacity, 27" Safety Chains
1,200 lb capacity Swivel Wheel Jack
Misc Specs

4-Way Flat Wiring Harness
2" Ball
14" Hitch Height
17" Deck Height
13" Rail Height Above the Deck
2,990 lb Gross Vehicle Weight Rating (GVWR)

Trailer Model - AUT510
SPECIFICATIONS
Standard Features
Options
? Tongue Jack
? 3500 lb Dexter Spring Axle(s), 4" drop
? 1750 lb Capacity Bolt On Ramp
? All Aluminum Tube Frame
? A-Frame Tongue
? LED Lights
? Single Stud Tie-Down w/Round Ring - 1,000 lb
Working Load Limit
? Heavy Duty D-Rings Recessed
? Stake Pockets w/rub rail
? Stabilizer Jacks (pair) - w/quick pin adjustment
? 15" Silver E-Coat Rims
? Hook/Tie-Down Receivers, 4'-5'
Apart
? Radial Tires
? 5/4"x6" ProWood DuraColor Decking
? Spare Mount Kit-Side Mount
? Bolt-On Spare Mount - Front Mount
? Folding Ramp
? Upgrade to Alum Rims
? Aluminum Tread Plate Sides
Axles / Brakes Deck Size Load Capacity GVWR Tire Size
1/0 5' X 10' 2490 2990 ST205/75R15
