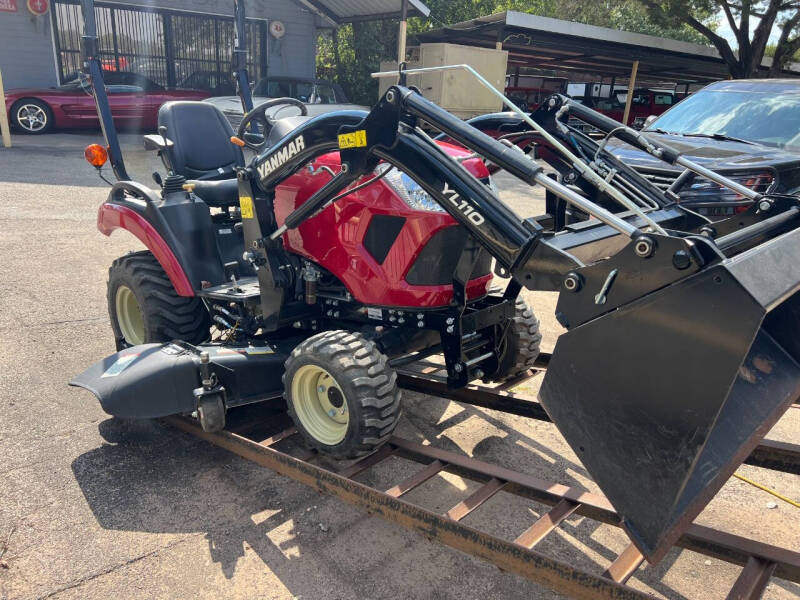

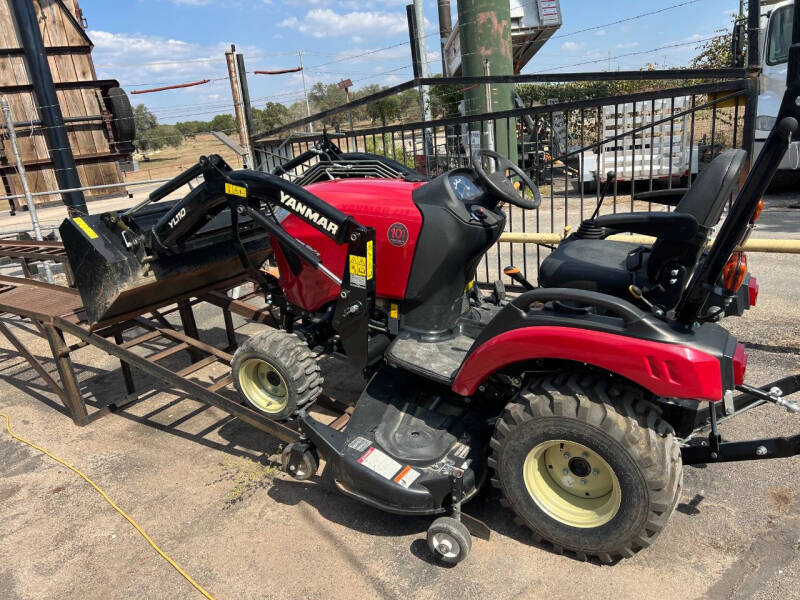

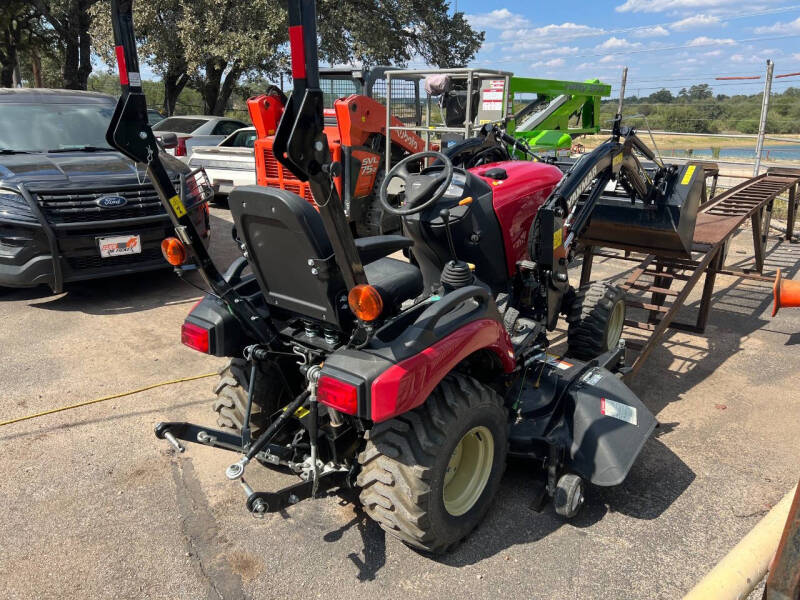

2023 YANMAR SA223

2023-YANMAR SA223

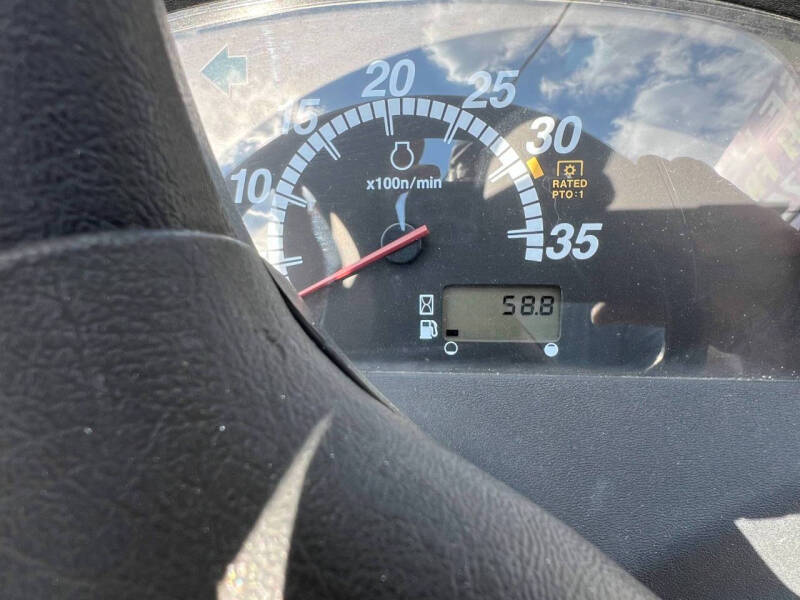

58 HRS

Yanmar SA223 specifications
Engine
Manufacturer: Yanmar
Model: 3TNM74F
Gross power: 21.5 horsepower (16.0 kW)
Cylinders: 3
Fuel: Diesel, with a 6.1-gallon (23 L) fuel tank
Emissions: Tier 4 level, does not require a Diesel Exhaust Fluid (DEF) or regeneration process.
Drivetrain and chassis
Transmission: Hydrostatic with dual-range speeds.
Drive type: Selectable 4WD.
Overall weight: 1,962 lbs with the loader attached.
Operator and controls
Warranty: 2-year/2,000-hour bumper-to-bumper and a 10-year/3,000-hour powertrain warranty.
Three-point hitch: Limited Category I, with a new position control system.
Dimensions
Overall length: 102.1 inches (2,594 mm).
Overall width: 47.3 inches (1,200 mm) with R4 tires.
Overall height: 82.3 inches (2,090 mm) to the top of the rollover protection structure (ROPS) with R4 tires.
Wheelbase: 57.9 inches (1,400 mm).
Loader and hydraulics
Loader model: YL110.
Lift capacity (at pivot pin): 825 lbs (375 kg).
Breakout force (at pivot pin): 1,342 lbs (610 kg).
Maximum lift height: 71 inches (1,800 mm) to the pivot pin.
Bucket width: 48 inches (1,219 mm).
