2017 Ford E-Series E-450 SD

2017 Forest River Sunseeker 3050S.

The 2017 Forest River Sunseeker 3050S is a Class C motorhome built on a Ford E-450 chassis with a 6.8L Triton V10 gasoline engine producing 305 horsepower and 420 lb-ft of torque. It features a full-wall slide-out for expanded living space, sleeps up to 6-8 people (including a cab-over bunk), and includes a queen bed, booth dinette, sofa, and various storage options.
Here are the key specifications compiled from manufacturer brochures, RV guides, and listings (note: exact figures can vary slightly by specific unit or options, but these are the standard/typical values for the 2017 model):
Dimensions and Weights

Exterior Length: 31 ft 11 in (383 in / 9.7 m)
Exterior Width: 101 in (8 ft 5 in)
Exterior Height: 11 ft 3 in (135 in)
Interior Height: 84 in (7 ft)
Wheelbase: 220 in
Dry Weight (UVW): Approximately 12,848 lbs
GVWR (Gross Vehicle Weight Rating): 14,500 lbs
GCWR (Gross Combined Weight Rating): 22,000 lbs
Hitch/Towing Capacity: 7,500 lbs
Payload Capacity (CCC): Approximately 1,652 lbs
GAWR Front: 5,000 lbs
GAWR Rear: 9,600 lbs

Capacities

Fuel Capacity: 55 gallons
Fresh Water: 44 gallons
Gray Water: 39 gallons
Black Water: 39 gallons
LP (Propane) Tank: 41 lbs
Water Heater: 6 gallons (DSI gas/electric)

Power and Systems

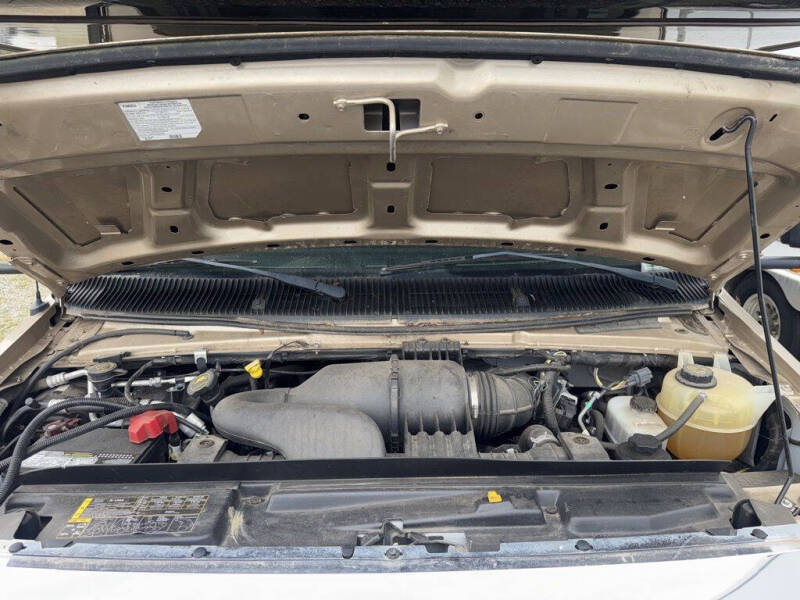

Chassis/Engine: Ford E-450 with 6.8L V10 gas engine
Transmission: Automatic (6-speed)
Generator: Typically 4.0 kW gas (standard or optional)
Air Conditioning: 13,50015,000 BTU (ducted, often 15K BTU unit)
Furnace: 30,000 BTU
Electrical Service: 30 amp

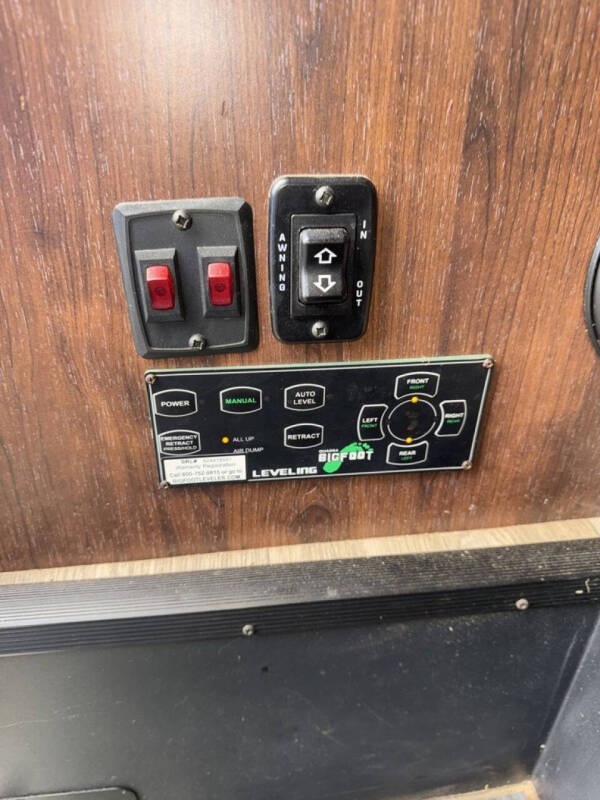

Awning: 18 ft power awning (with LED lights in some units)

Interior and Features

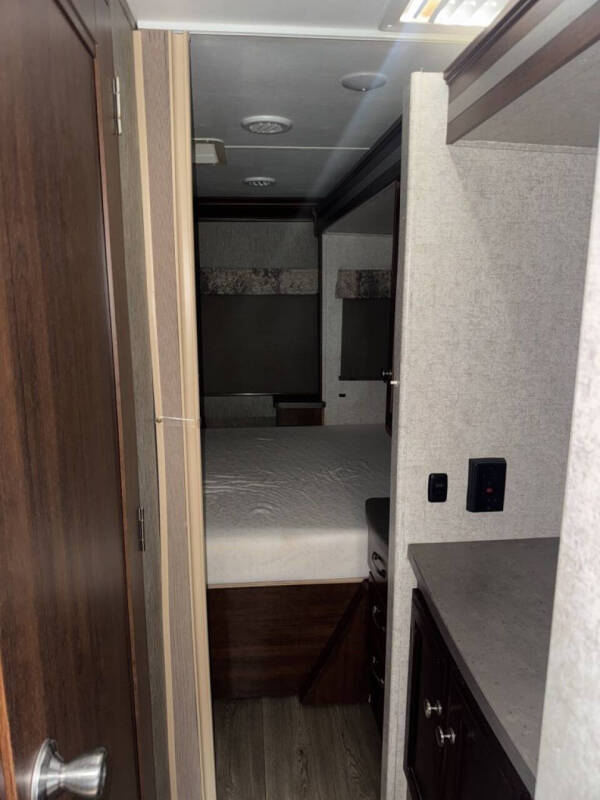

Sleeping Capacity: Up to 8 (queen bed 60'' x 80'', cab-over bunk 60'' x 80'', convertible dinette/sofa)
Slideouts: 1 full-wall slide
Refrigerator: 10.7 cu ft (12V or similar)

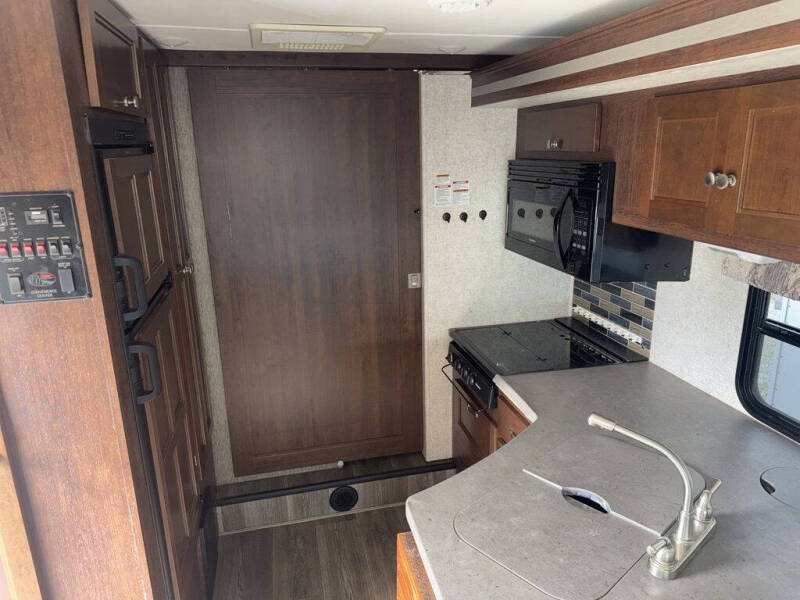

Cooktop: 3-burner range with convection microwave
Bathroom: 1 full bath with shower (24'' x 36'')
Other Highlights: Enclosed/heated holding tanks, pantry, flip-up countertop extension, LED TVs (living room and bedroom), booth dinette, sofa, overhead storage, and optional features like recliners or 4-door refrigerator.
