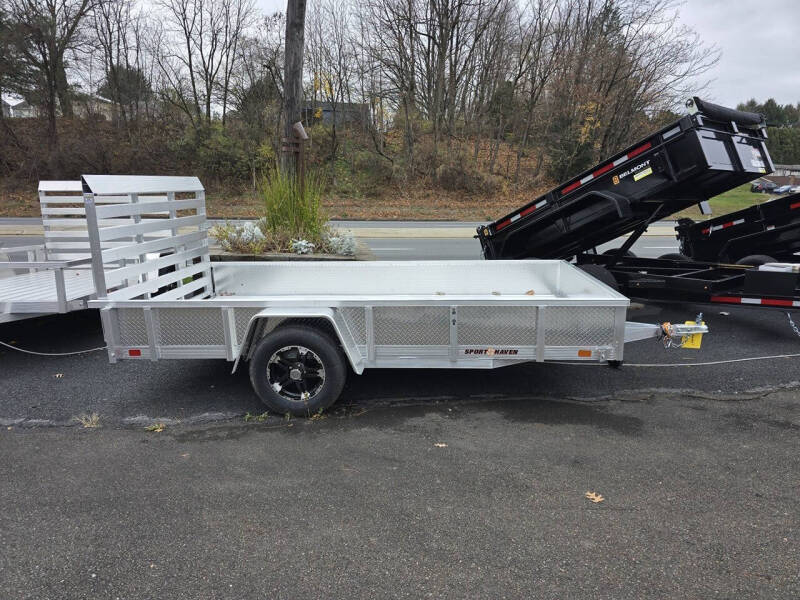

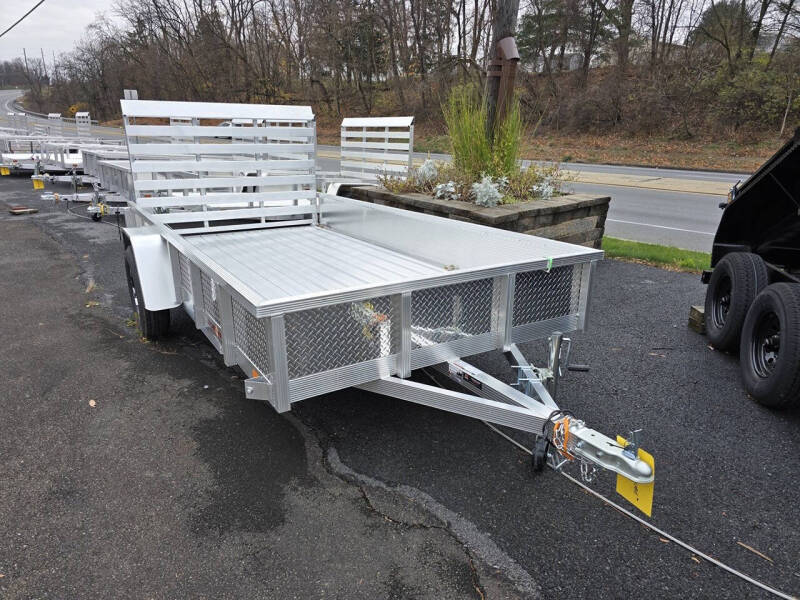

2026 Sport Haven Trailer AUT612D

Features you will not find on other brands:

Integrated Spare Tire Mount Side Rail Upright - made to fit spare tire mount kit.

Ratchet Strap Hook or Single Stud Tie-Down Receiver - versatile with multiple securement options.

Aluminum Decking - Anti slip aluminum plank decking

Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.

Side Rail Upright shown w/optional Spare Mount Kit & optional Treadplate Sides

Features you might not find on other brands:

1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing

Aluminum Through-Bolted Hinge - 2 piece bolt through hinge

Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position

15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling

Aluminum Fenders - corrosion resistant, lightweight, and durable

LED Lighting - Limited Lifetime LED warranty

Spring Loaded Latch Gate

luted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
Jig Welded Construction for Consistency, Quality


Fluted Aluminum Tube Tongues and Tongue Supports

Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)

2" Wide Aluminum Tube Top Deck Top Rails

Aluminum Tube Top Deck Rail Uprights

Popular Options:

Aluminum Treadplate Sides

Lateral 5' Ramp (7' Wide Models)

Bi-fold Lateral 5' Ramp (7' Wide Models)

Bi-fold Ramp (Rear and/or Side)


Trailer Brakes (Standard on Tandem Axle, Optional on Single Axle)

Lateral Ramp


AUTD-LR:



Aluminum Ramps built into side rails

Side Load from either side

Built in Spare Tire Mounting holes (kit sold separately)

Aluminum Decking

AUT712, AUT714, AUT714T thru AUT724T

Construction Specs

Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
2" Wide Top Deck Rail
2" x 2" Top Deck Rail Uprights
6" Slip Resistant Aluminum Decking
All Aluminum 4' Rear Ramp
Component Specs

LED Lights
15" Aluminum Wheels
ST207/75R15C Radial Tires
3,500 lb Capacity Axles
3,500 lb Capacity Torsion Axles - 5' &6' Wide Models
3500 lb Capacity Double Eye Spring Axles - 7' Wide Models
3,500 lb Capacity Zinc Plated Couplers
3,200 lb Capacity, 27" Safety Chains
1,200 lb capacity Swivel Wheel Jack
Misc Specs

4-Way Flat Wiring Harness
2" Ball
14" Hitch Height
17" Deck Height
13" Rail Height Above the Deck
2,990 lb Gross Vehicle Weight Rating (GVWR)

Trailer Model- AUT612D Options and features may differ. SPECIFICATIONS Axles / Brakes Deck Size Load Capacity 1/0 ? Tongue Jack 6' X 12' 2450 Standard Features GVWR 2990 Tire Size ST205/75R15 ? LED Lights w/Chrome Trim ? 3500 lb Dexter Torsion Axle, 4" Drop -5' & 6' wides ? 1750 lb Capacity Bolt On Ramp ? All Aluminum Tube Frame ? A-Frame Tongue ? Double Stud Tie-Down w/Round Ring - 1,666 lb Working Load Limit ? Heavy Duty D-Rings ? Bolt-On Spare Mount - Front Mount ? Stake Pockets w/rub rail Options ? 15" Aluminum Rims ? Integrated Tie Down Track w/ 4 Double Stud Tie Downs Included ? Radial Tires ? Aluminum Decking ? Spare Mount Kit-Side Mount ? Folding Ramp ? Aluminum Tread Plate Sides ? Stabilizer Jacks (pair) - w/quick pin adjustment
