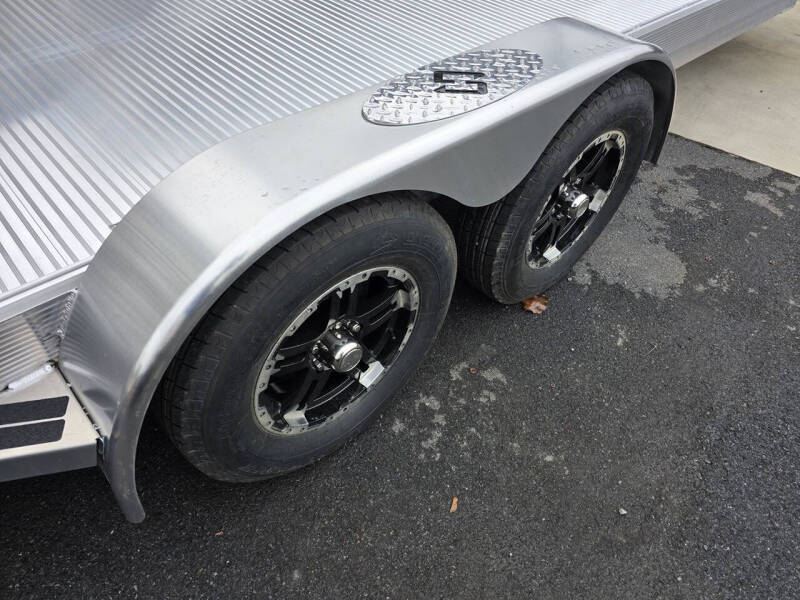

2026 Sport Haven Trailer AOCP2270TD

Integrated Tie Down Track Built into Frame Rails - Including Heavy Duty double stud Tie Down Rings 1,666lb Working Limit 5000 lb Break Strength. Tie downs slide and lock into place every 12"

(2) 6' Ramps Rear Access - Hidden Protective Ramp Storage

Ramps Can be Used to load from Rear or Side of Trailer

Dexter Torsion Axles - 3500lb or 6000lb Capacity per axle depending on Capacity
utility trailers with mounting options
utility trailers with d ring
utility trailers with adjustable d rings
Easy Snap in Design

Optional Bolt on Rock Guard

30'' Tall off the deck

10'' Wide at widest point to the back

7' Long

Rear Ramp Storage for up to 3 Ramps

trailer with rear ramp access
Closed Position

trailer with rear ramp storage
Open Position

aluminum car trailer with rear ramps
Ramps Pull out from Carrier

AOCP MODEL CONSTRUCTION
Jig Welded Construction for Consistency, Quality


Interlocking Aluminum Decking


2" X 7" X .25" Double Hollow Frame Side Rails


2" x 7" A Frame Tongue

3" Rear Beaver Tail

Double Hollow Tube Frame Side Rails

AOCP TANDEM AXLE MODEL SPECIFICATIONS
Construction Specs

Double Hollow Aluminum Tube Tongue, Lower Frame Outer Rails
Fluted 4" x 5" Custom Extrusion Frame Rails with Integrated Track System
2" x 2" Top Deck Rail
2" x 2" Top Deck Rail Uprights
6" Extruded Interlocking Aluminum Decking
6' Loading Ramps - Rear Access
3' Beaver Tail

Component Specs

LED Lights
15" Aluminum Wheels
ST205/75R15C - 7K Models
ST225/75R15D - 10k Models
3500 lb Dexter Torsion Axles - 7k Models
6000 lb Dexter Torsion Axles - 10k Models
14,00 lb Capacity Zinc Plated Coupler
11,700 lb Capacity 35" Zinc Plated Safety Chains
A frame 5000lb Zinc Plated Pad Jack

Misc Specs

7-Way Round Wiring Harness
2 5/16" Ball
10" Electric Brakes On Both Axles
4 Recessed Swivel Tie Downs 2000 lb Working Limit 6000 lb Break Stregth
7,000 lb Gross Vehicle Weight Rating (GVWR) - 7K
9999 lb Gross Vehicle Weight Rating (GVWR) - 10K

Trailer Model- AOCP2270TD Image for representation only. Options and features may differ. SPECIFICATIONS Axles / Brakes Deck Size Load Capacity 2/2 ? Tongue Jack 7' X 22' 5520LB Standard Features GVWR 7000 Tire Size ST205/75R15 C ? (4) Recessed Swivel Tie-Downs ? A-Frame Tongue ? Aluminum Rims w/Radial Tires ? (2) 6' Ramps(rear access) ? All Aluminum Tube Frame ? LED Lights ? SpareTire ? Bolt-On Spare Mount- Front Mount ? HeavyDuty D-Rings Installed ? Integrated Tie-Down Track w/4 TieDowns ? 3500 lb or 6000 lb Dexter Torsion Axles ? Aluminum Decking ? 3' Beaver Tail Options ? Weld-OnSpare Mount- 7K ? Bolt-On Rock Guard ? Extra Ramp
