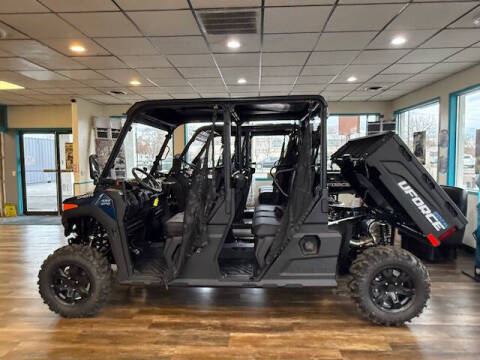

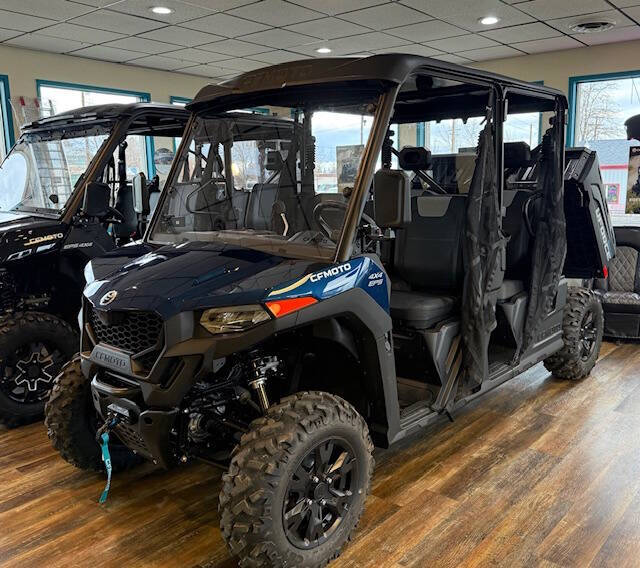

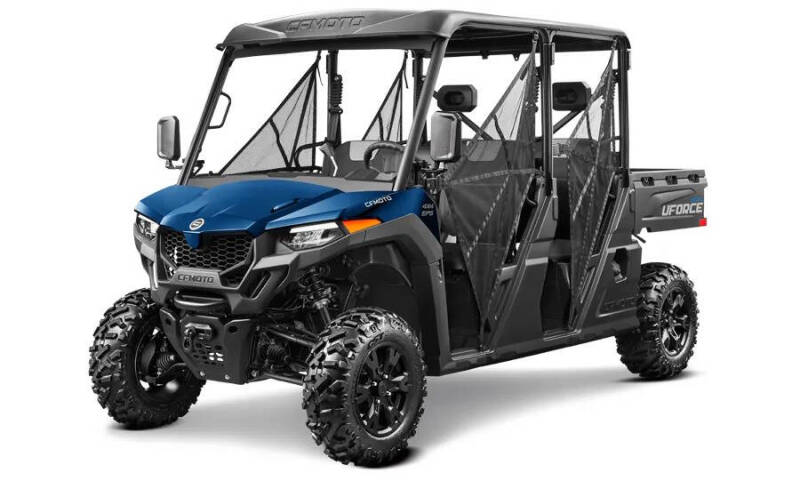

2026 CFMoto UForce 800 XL

Starting at $13,499 MSRP
+ Freight, Setup


When the job calls for more people, more gear, and more gusto, the UFORCE 800 XL answers without hesitation. Built around a 63 hp V-Twin engine and the buttery-smooth OmniDrive™ transmission, this machine handles heavy loads, rough terrain, and long days like it was born for it. Bench seating for four means nobody gets left behind, while a 660-lb. dump box and 4,500-lb. winch turn big tasks into big results. It’s a utility side-by-side with the heart of a workhorse and the hustle of a cowboy.
1-Year Factory Warranty

Specifications

ENGINE
ENGINE TYPE
V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve
DISPLACEMENT
800cc
MAX POWER
63 HP @ 7000 rpm
MAX TORQUE
51 LB-FT @ 5500rpm
FUEL SYSTEM
Bosch® EFI
COOLING SYSTEM
Liquid cooled
DRIVE
2WD/4WD/4WD lock
TRANSMISSION
OmniDrive™ CVT P/R/N/H/L
CHARGING OUTPUT (Watts)
600W
DIMENSIONS & WEIGHT
LENGTH X WIDTH X HEIGHT
143” x 60” x 79”
WHEELBASE
109.1”
DRY WEIGHT
1629 lbs.
GROUND CLEARANCE
11.8”
FUEL TANK CAPACITY
10.5 gal.
CARGO CAPACITY
660 lbs.
TURNING RADIUS
18'
CHASSIS
SUSPENSION
Front: High clearance A-arm independent / Rear: Double A-arm independent
WHEELS
14” Cast Aluminum
TIRES
Front: 27” x 9” x 14”, Rear: 27” x 11” x 14”
SHOCKS
Spring preload adjustable, oil damped
BRAKES
4-wheel hydraulic disc with parking brake
WHEEL TRAVEL
Front 8.9” / Rear 8.9”
STANDARD EQUIPMENT
HITCH/RECEIVER
2”
TOWING CAPACITY
1500 lbs.
WINCH
4500 lbs. w/ nylon rope
ADDITIONAL FEATURES
Electronic power steering, Bosch® electronic throttle with work/normal modes, 4500 lb. winch with synthetic rope , two 2-person bench seat, 5” LCD display, CFMOTO RideSync app compatible (T-Box), 12V outlet, USB port, side nets, LED headlights/taillights with backup lights, tilt steering, roof, side mirrors, skid plate, rear sway bar, locking rear differential, large 10.5 gal. fuel tank, 2” receiver, adjustable driver’s seat, under-seat storage area, front bumper.
