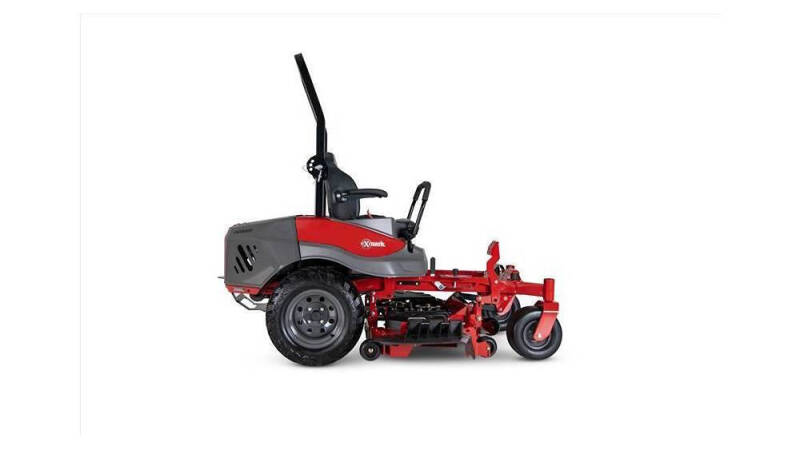

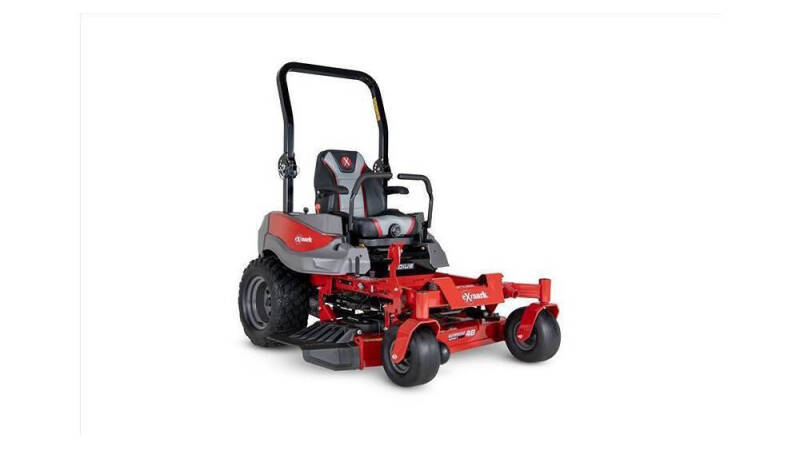

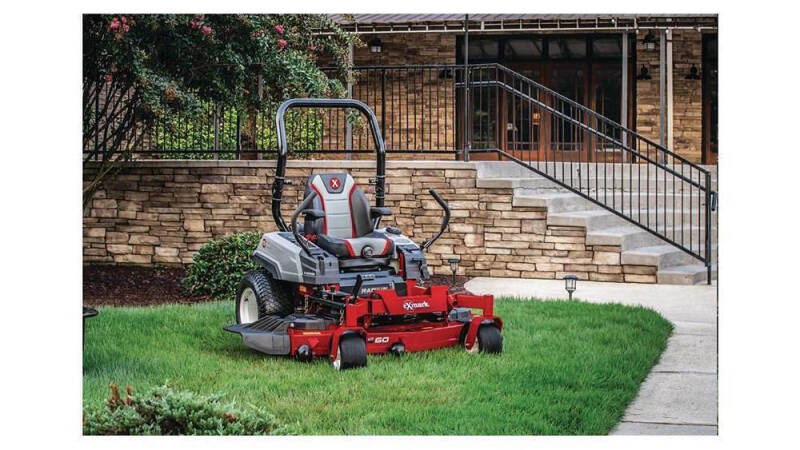

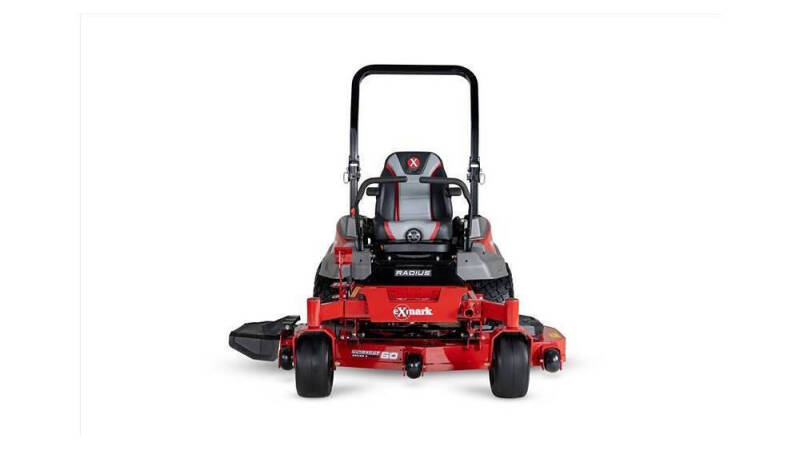

2026 Exmark Radius E-Series Kawasaki FR730

Discover the Exmark Radius E-Series Mower

With the performance you expect from Exmark, new features and a fresh new look, the Radius E-Series is the right choice for home and acreage owners looking for a commercial-grade mower without breaking the bank. Choose from 48-, 54-, or 60-inch Exmark Series 2+ cutting decks and a wide range of available accessories for maximum versatility. And with new Kawasaki V-twin engine options, Radius E-Series models deliver more performance per dollar than ever before.

Features
Adjustable Rollover Protection System (ROPS): New square tubing rollover protection system (ROPS) is easily foldable for storage.
Height of Cut Made Easy: Exmark's patented cut height adjustment system is very easy to use, enabling the user to quickly set height of cut with unmatched accuracy, right from the operator seat.
High-Strength Steel Frame: Fabricated and fully welded of high-strength rectangular steel tubing, the Radius frame places the heaviest components -- engine, transmission and fuel tank -- low and centralized in the frame. This lowers the machine's center of gravity for increased traction and stability. New steel engine guards increase engine protection at the sides and rear of the machine, while also being easily removable for service access.
Series 2+ Cutting Deck: Fabricated and fully welded from high-strength steel, the Exmark Series 2+ cutting decks feature maintenance-free sealed bearing spindle assemblies and durable double-capture anti-scalp rollers to deliver the cut quality and durability you expect from Exmark.
Integrated Hydro Pump and Motor Design: Dual HydroGear ZT-2800 hydro transmissions feature an integrated pump and motor design for maximum efficiency, long-term reliability and ground speeds of up to 8 mph.
Large Drive and Caster Tires: Radius E-Series models are equipped with large, smooth-riding 22-inch drive tires and 13-inch caster tires.
Equipment
UPC: 193308243764
Width / Cutting Deck: 60"
Drive: Hydro-Drive
Starter: Electric
Steering Control: Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Caster Forks: .375" thick caster yoke arms.
Front Caster Tires: 13 x 6.5-5 smooth-tread, pneumatic.
Drive Tires: 22 x 11-10 K3012
Safety Package: Operator Presence Controls (OPC) and drive system interlock.
Parking Brake: Automatic-actuated pawl brake.
Tractor Frame: Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft.
Cup Holder: Yes
Electrical: 12 volt battery with 15-amp alternator
Standard Features: Hour meter, cup holder, hitch
Seat: Deluxe, two-tone, bolstered seat with flip up armrests and integral safety switch
Optional Features: Hour meter and seat armrests
Power Components
Engine Brand: Kawasaki
Transmission Brand: Hydro-Gear
Transmission Speeds: Infinitely Variable
Engine Model: FR730
Engine Displacement: 730 cc
Engine Series: V-Twin
Fuel System: Carbureted
Speed: Infinitely variable speed selection from 0–8.0 mph forward, 0–4.0 mph reverse
Transmission: Hydrostatic
Engine Spec: S09-R
Engine Speed: 3,600 rpm
Air Filter: Standard Engine Manufacturer's air filter
Fuel Capacity: 7-gallon single fuel tank with single fill location
Drive Description: Two Hydro-Gear ZT-2800 hydro static transmissions with no hoses and integrated cooling fans and integrated reservoir
Fuel Type: Gas Carbureted
PTO Engagement: Electromagnetic 105-ft-lb clutch
Drive Wheel Release: Allows unit movement without engine running.
Fuel Indicator: Float gauge
Deck Lift: Foot pedal, single point drop pin HOC
Carb Compliant: No
ROPS: 2-post foldable ROPS standard with seat belt.
