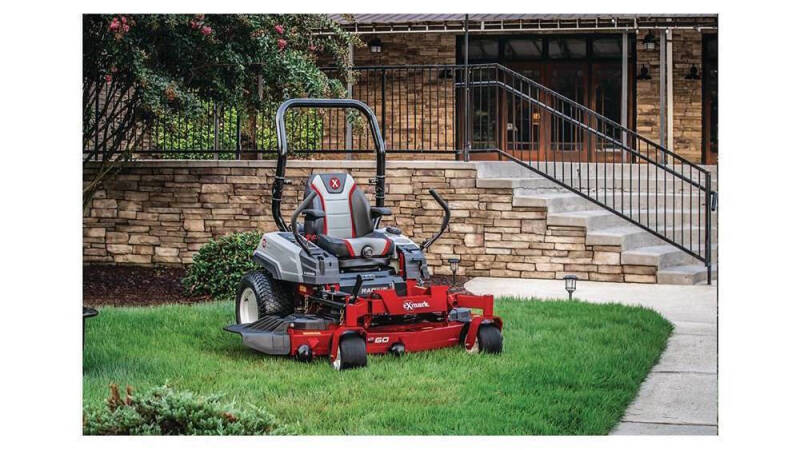

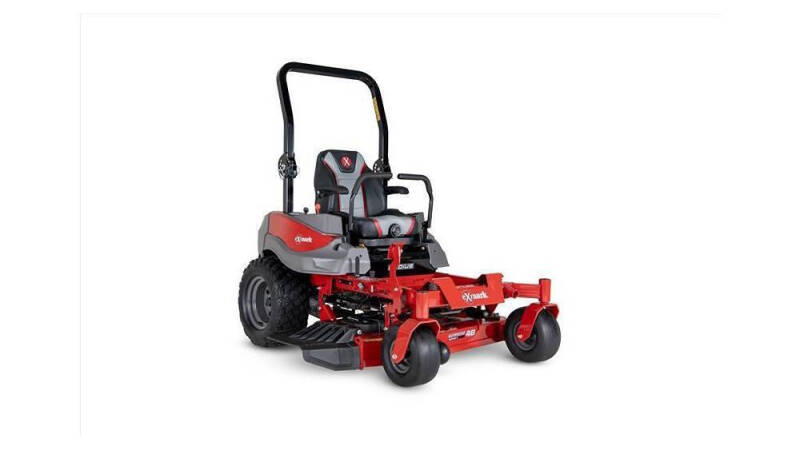

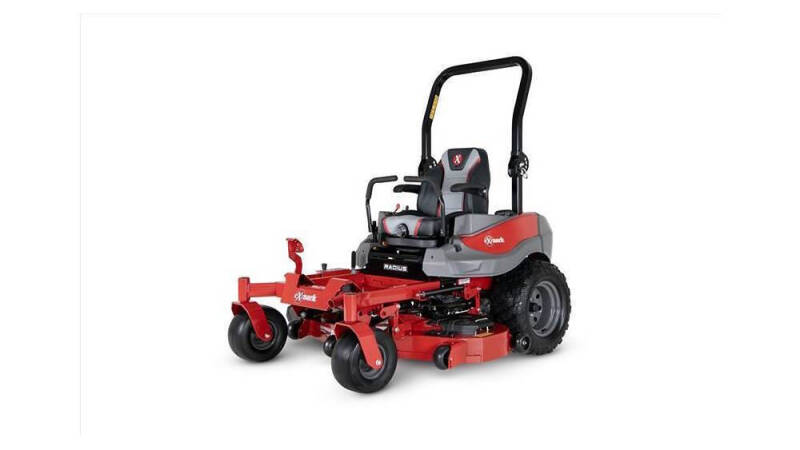

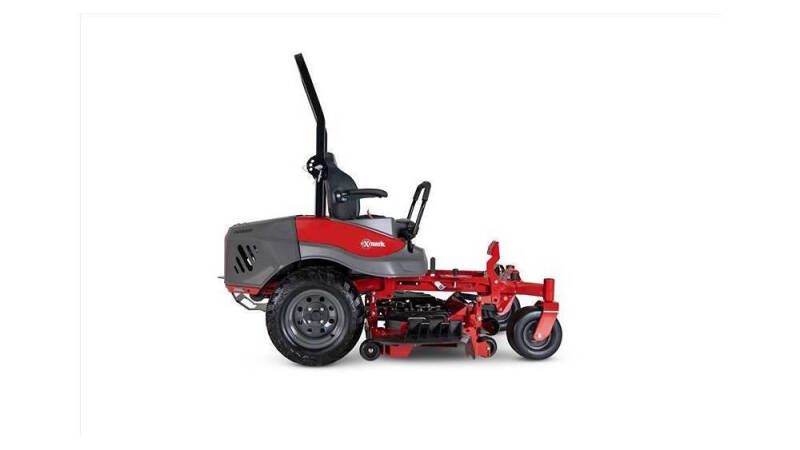

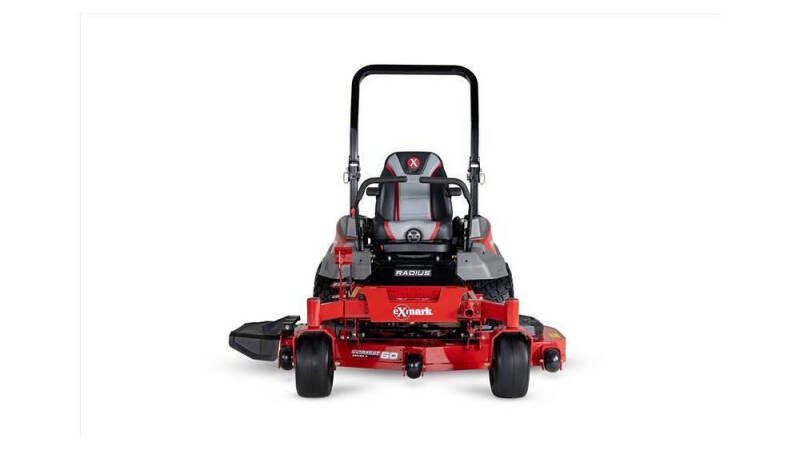

2026 Exmark Engine Engine Manufacturer Kaw

Description
Features
Adjustable Rollover Protection System (ROPS): New square tubing rollover protection system (ROPS) is easily foldable for storage.
Height of Cut Made Easy: Exmark's patented cut height adjustment system is very easy to use, enabling the user to quickly set height of cut with unmatched accuracy, right from the operator seat.
High-Strength Steel Frame: Fabricated and fully welded of high-strength rectangular steel tubing, the Radius frame places the heaviest components -- engine, transmission and fuel tank -- low and centralized in the frame. This lowers the machine's center of gravity for increased traction and stability. New steel engine guards increase engine protection at the sides and rear of the machine, while also being easily removable for service access.
Series 2+ Cutting Deck: Fabricated and fully welded from high-strength steel, the Exmark Series 2+ cutting decks feature maintenance-free sealed bearing spindle assemblies and durable double-capture anti-scalp rollers to deliver the cut quality and durability you expect from Exmark.
Integrated Hydro Pump and Motor Design: Dual HydroGear ZT-2800 hydro transmissions feature an integrated pump and motor design for maximum efficiency, long-term reliability and ground speeds of up to 8 mph.
Large Drive and Caster Tires: Radius E-Series models are equipped with large, smooth-riding 22-inch drive tires and 13-inch caster tires.
Equipment
UPC: 193308225340
Onboard Intelligence: none
Starter: Electric
Steering Control: Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Caster Forks: .375" thick caster yoke arms
Front Caster Tires: 13 x 6.5-6, smooth tread, pneumatic. Bushings
Drive Tires: 22 x 10.5-12 Super Turf TL
Parking Brake: Lever-actuated pawl brake.
Tractor Frame: Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.
Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.30"-diameter cutter housing contains 17mm (.67") diameter spindle shaft and hex blade drive.
Cup Holder: Yes
Electrical: 12-volt battery with 15-amp alternator.
Standard Features: Engine hour meter, cup holder, tow hitch and jack receiver
Seat: High back seat with foam padded seat cushion, armrests and integral safety switch
Power Components
Transmission Speeds: Infinitely Variable
Transmission Brand: Hydro-Gear
Engine Brand: Exmark
Engine Model: LC2P77F
Engine Displacement: 708 cc
Transmission: Hydrostatic
Speed: Infinitely variable speed selection from 0–8.0 mph forward, 0–5.0 mph reverse
Engine Series: V-Twin
Fuel System: Carbureted
Drive: Hydro-Drive
Engine Spec: K5045
Engine Speed: 3,600 rpm
Fuel Capacity: 7-gallon single fuel tank with single fill location
Air Filter: Standard Engine Manufacturer's air filter
Drive Description: Dual Hydro Gear ZT3100, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
Fuel Type: Gas Carbureted
PTO Engagement: MagStop electromagnetic 125-ft-lb clutch
Drive System: Hydro-Drive
Drive Wheel Release: Allows unit movement without engine running.
Fuel Indicator: Translucent Visual
Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Carb Compliant: No
Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS: 2-post foldable ROPS standard with seat belt and latch.
Decks
Deck Style: Floating Deck
Deck Style Description: Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck: 60"
Deck Construction: 10-gauge high strength alloy top that is form
