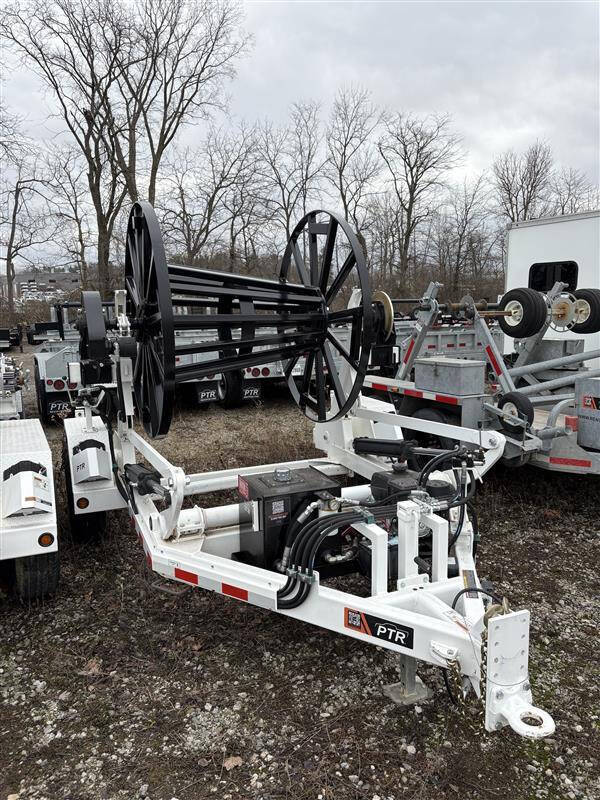

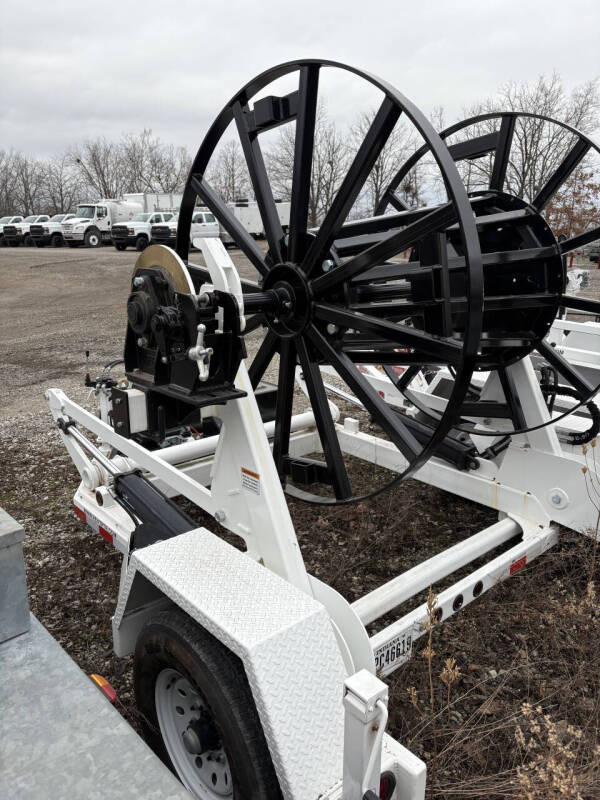

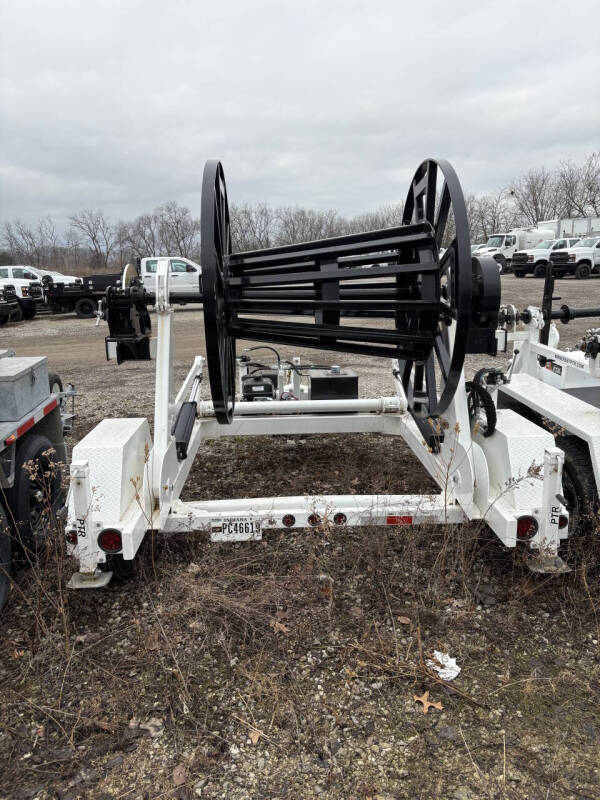

Brooks Brothers SLRT 7108 Self-Loading Reel Trailer
VIN: 7K7US0817PM000487
GVWR: 8,200 lb (15% weight transfer calculation)
Approx. Load Capacity: 5,000 lb
Overall Length: 134"
Overall Width: 101" max
Reel Capacity: One large reel — 96" diameter x 60" width, 3" center hole
Reel Rack & Lift System:
-Self-loading design
-Twin 4" hydraulic lift cylinders
-Operated via lever-activated control valve
-Bronze heavy-duty bushings
AXLE & RUNNING GEAR
-7,000 lb Torflex single axle
-Electric brakes: 12" x 2" on all wheels
-Tires: (2) 235/80R16 Load Range E
-Wheels: (2) 16" x 6", 8-hole on 6.5" bolt circle
POWER PACK (HYDRAULIC SYSTEM)
Engine & Hydraulic Specs:
-14 HP Kohler gas engine
-Electric start + recoil backup
-20-gallon hydraulic reservoir
-10-micron spin-on filter
-Hydraulic pressure ratings:
-2,250 psi continuous
-2,900 psi intermittent
-Flow rate: 8 GPM
TENSIONING BRAKE ASSEMBLY
-16" x 3/4" aluminum brake disc
-Hub, shaft, and disc machined as one unit
-Hayes M100 caliper — 10,000 lb clamping force
-Non-asbestos pads (easy replacement)
-Up to 4,100 ft-lb torque
-Heavy-duty bearings
TONGUE, HITCH & JACKS
-Steel tubing: 6" x 3" x 3/16"
-Adjustable hitch plate: 6-position (14"–27")
-2.5" Lunette eye
-Chains: 3/8" x 36", galvanized
Jacks:
-(1) front 10,000-lb drop-leg jack
-(2) rear stabilizer jacks
MAIN FRAME & STRUCTURE
-Main frame: 6" x 4" x 1/4" steel tube
-Lifting arms: 6" x 3" x 1/4" steel tube
12-VOLT ELECTRICAL SYSTEM
-DOT/ICC compliant LED lighting
-Rubber-mounted sealed beam stop/turn/tail/marker lights
-SO-cable wiring loom (clamped every 16" with rubber-lined clamps)
-All wiring soldered, heat-shrunk, and terminated in junction boxes
-32" pigtail w/ electrical plug at junction box
Located in Indiana, Nationwide shipping available
