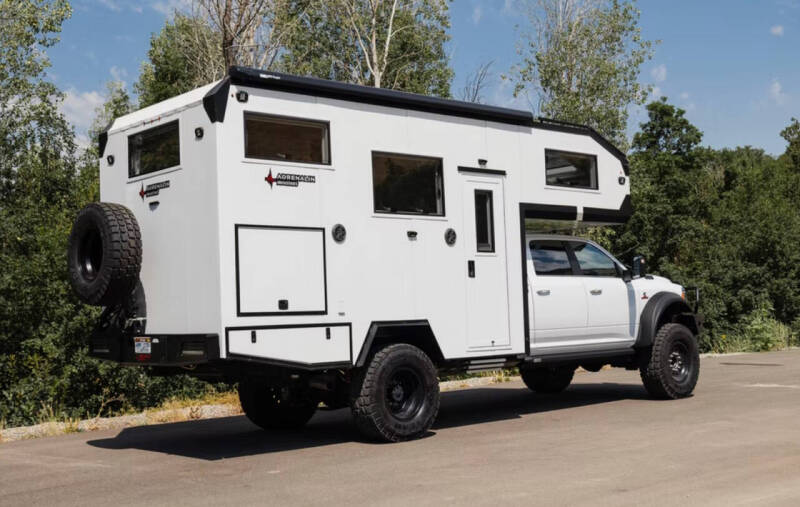

2024 RAM 5500

Adrenalin's 2025 Overland Series demo truck

BUILD DETAILS:

Chassis

Ram 5500/ Ford F550

203 Wheelbase

Exterior color: White

Chassis GVWR 19,500 lbs

Custom frame extension for longer custom living quarters

High capacity trailer towing package

6.7L Diesel or 7.3 Gas Motor (Ford) or 6.7L Diesel Motor (Ram)

74 gallon fuel tank on Ram & 66.5 gallon fuel tank on Ford

Dual alternators- rated at 440 amps

4.88 Ratio Limited Slip rear axle

Premium sound system

Backup camera and front park sensors (Ram also has rear sensors)

Apple CarPlay, Google Android Auto, large infotainment display

Dual-zone auto temperature control, heated and cooled front seats, heated rear seats

Buckstop aluminum front bumper with integrated winch mount

Front receiver hitch

Adrenalin rear bumper with integrated winch mount and hydraulic spare tire lift

Stazworks 20'' 2 piece wheels

Goodyear G275 335/80R20(41'') tires or Michelin X Force 335/80R20 (41''/43'') tires

ComeUp 20,000 LB front winch with synthetic winch line

Rigid lights in Front bumper (bumper style determines which style of lights fit)

16,500-18,500LB loaded overall weight

29 overall length, 94 overall width, 12 overall height

Amp XL automatic power steps

Speedometer Calibrator

ODO: 4446

VIN: 3C7WRNFL1RG182897


Suspension

Liquid Springs active smart suspension

True Earth campsite leveling

Automatically load levels chassis

5 adjustable right height settings

3 adjustable ride comfort settings: sport, normal, comfort


Custom Living Space

Dimensions: 14 box, 7 cab overhang, 91 wide, 7 interior height, 12 overall height

All aluminum construction

Z channel framing for better insulation.

Extruded 6061 aluminum tube for structure

Aluminum exterior poly core panels, bonded with 3M VHB

Spray in foam insulation, 14 R value in walls, 20 R value in floors and ceiling

Reinforced, walk-on roof

3/4 PakTite engineered subfloor, with Commercial Grade Vinyl flooring

Upholstered interior walls and ceiling panels

Full aluminum cabinets with internal drawers and automatic LED lighting

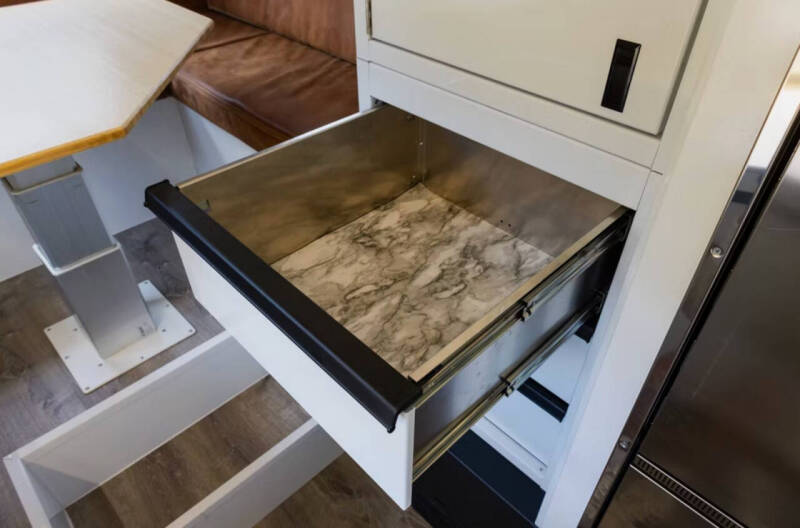

Full aluminum drawers with easy open latches

Outbound windows and roof hatch, dual pane safety glass, bug & blackout shades

Outbound entry door with window & screen

Fiamma electric awning with automatic wind sensor retract

Rear garage with automatic LED lighting

Aluminum under-mount storage boxes

Rigid scene lights on left/right sides and rear

Tank heaters for fresh and grey water tanks


Electrical

24v electrical system

Mastervolt combimaster 3500w inverter/charger

C-zone Touch 7 control panel

2 Mastervolt MPPT solar controllers

2000 total watts of solar on roof

2 - Mastervolt 24-6000 batteries

460ah at 24v total capacity battery storage

2 Mastervolt Mac+ 50 amp DC to DC charger

Mastervolt Mac+ 50 amp DC to DC 12v converter

C-zone control X lighting, tank monitor, system control

C-zone NMEA 2000 network connectivity on all components for monitoring and safety systems

LED interior lighting


Audio / Visual

2 Smart TVs with wired HDMI and USB (optional)

JL Audio Media Master 100 Marine Head Unit

JL Audio 10 Stealth-box Subwoofer

4 - JL Audio C2 internal speakers

2 - JL Audio External marine grade speakers

JL Au
