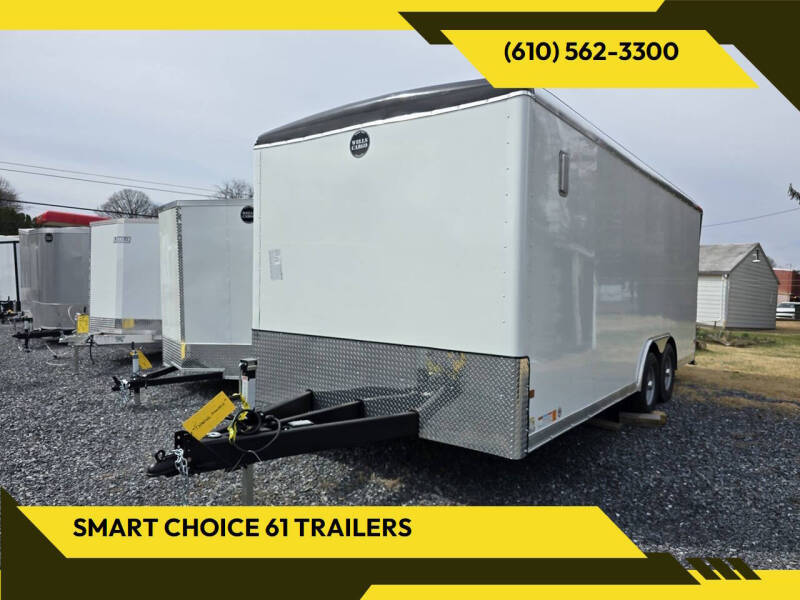

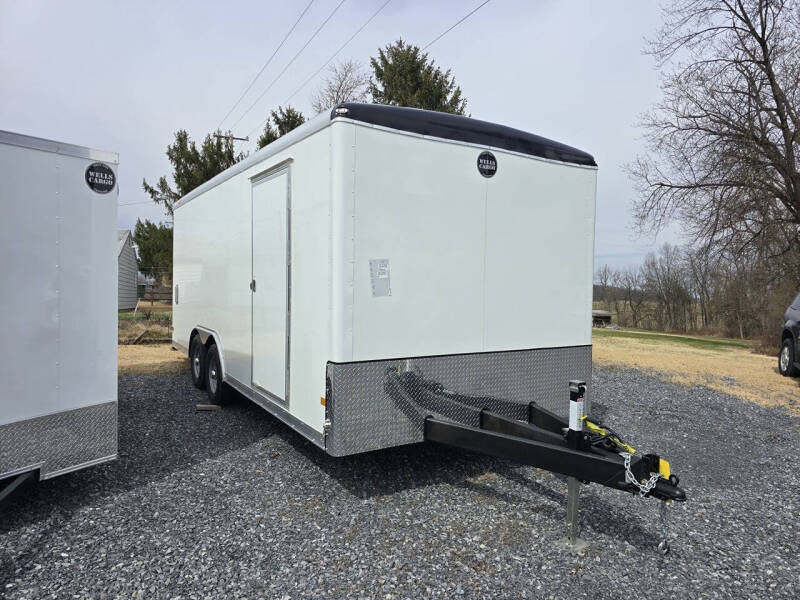

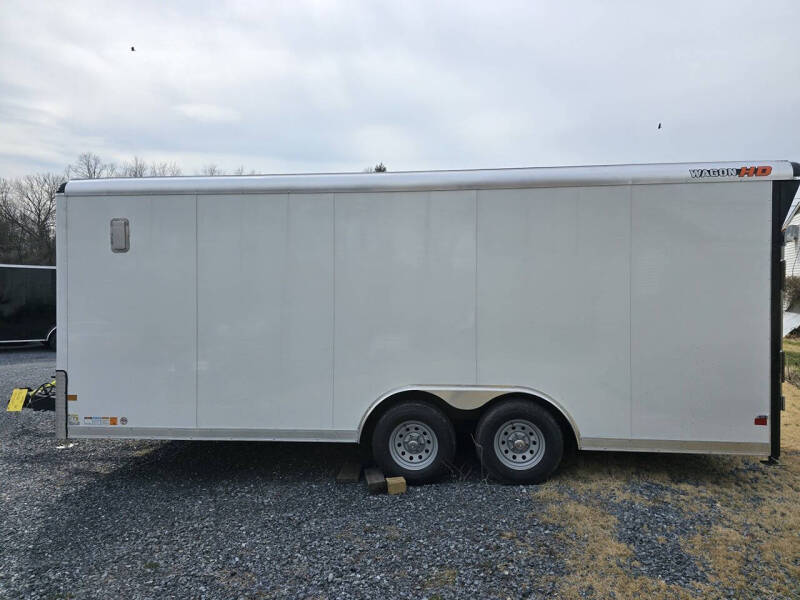

2026 Wells Cargo WHD8520T3

Wagon SS (Aluminum)
If you've got a job to do, the new Wells Cargo Wagon SS is the way to do it. All-Aluminum construction resulted in a lighter trailer for increased fuel economy and increased hauling capacity. And, the Wagon SS won't rust even on the saltiest roads, so your trailer will keep looking great job-after-job, year-after-year. The Wagon SS features an all-tube frame and fully integrated sidewall and roof design that delivers commercial-grade durability. The aluminum hardware, exterior trim, and bonded skin assure long-lasting curb appeal. Beauty and brawn in one easy to tow, lightweight package!

Features
1-Piece Aluminum Roof

Fully Integrated Roof and Sidewall Design

Flow-Thru Sidewall Vents

Torflex Rubber Torsion Axles with E-Z Lube Hubs
Double Rear Doors24" ATP Stoneguard
All Aluminum Frame
LED Exterior and Interior Lighting
3-Year Limited Warranty
16" OC Tube Vertical Posts
3/4" PlexCore
Decking One-Piece
Seamless Aluminum Roof
16" OC Tube Roof Bows
3/8" PlexCore Sidewall Liner
Goodyear® Endurance Radial Tires
5,000 lbs. Square D-Rings w/ Welded Plate
(4)Dust-Proof Sidewalls
Adjustable Height 2-5/16"
Wallace Forge® Cast Coupler (Made in the USA)
Square Tube 8K Dropleg Sidewide Jack with Footplate (Bolt-On/Replaceable)
All Aluminum "Anti-Rack" Cam Lock with Stainless Steel Hasp
36"W Side Entry Door with Flush Lock & Dead Bolt (1-1/2" Core)
Rear ID Bar with Built-In Loading Light
12V High Output LED Dome Lights (800 lumens)
16" OC Tube Floor Crossmembers
Wagon Bull Nose Profile (with optional polished aluminum)
Bonded .080 ACP Exterior (Aluminum Composite Panels)

MODEL WSS8520T2
BODY LENGTH 23'0"
BODY WIDTH 8'4"
OVERALL LENGTH 25'1"
OVERALL WIDTH 8'6"
OVERALL HEIGHT 8'6"
INTERIOR LENGTH 22'7"
INTERIOR WIDTH 8'1"
INTERIOR HEIGHT 6'6"
PLATFORM HEIGHT 20"
AXLE QUANTITY Tandem
AXLE CAPACITY 7,000 lbs.
AXLE TYPE 10o Up
BRAKES Electric Drum
SUSPENSION Torflex
TIRE SIZE ST205/75R15
LOAD RANGE D
TIRE TYPE Radial Goodyear
WHEEL TYPE Aluminum
HITCH BALL SIZE 2 5/16"
HITCH TO TOP OF BALL 19" to 23"
GVWR 7,000 lbs.
REAR DOOR STYLE Double Doors
REAR DOOR (W X H) 94" x 74"
HARDWARE Aluminum
SIDE DOOR (W X H) 36" x 72"
TUBE MAIN RAILS 2" x 6"
ATP STONEGUARD 24"
SIDEWALL VENTS Standard
INTERIOR SIDEWALL LINER 3/8" PlexCore
INTERIOR FLOOR DECKING 3/4" PlexCore
12V TRAILER END CONNECTOR 7-Way
