2025 Ford E-Series

Specification Value
Exterior Length 29 ft 11 in
Exterior Width 101 in (8.4 ft)
Exterior Height 11 ft 3 in
Interior Height 84 in (7 ft)
Wheelbase 190 in
Awning Size 20 ft

Weights & Capacities
Specification Value
GVWR 14,500 lb
GCWR 22,000 lb
Front GAWR 5,000 lb
Rear GAWR 9,600 lb
Fuel Capacity 55 gal
LP Tank 40 lb

Water & Holding Tanks
Specification Value
Fresh Water 35 gal
Gray Water 32 gal
Black Water 32 gal

Engine & Performance
Specification Value
Engine Ford 7.3L V8 “Godzilla”
Horsepower ~325 hp
Torque ~468 lb-ft
Fuel Type Gasoline

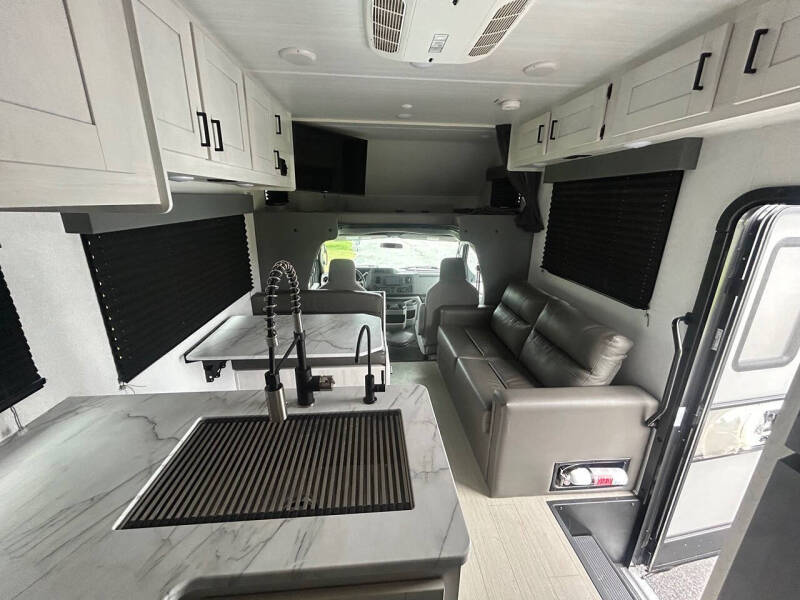

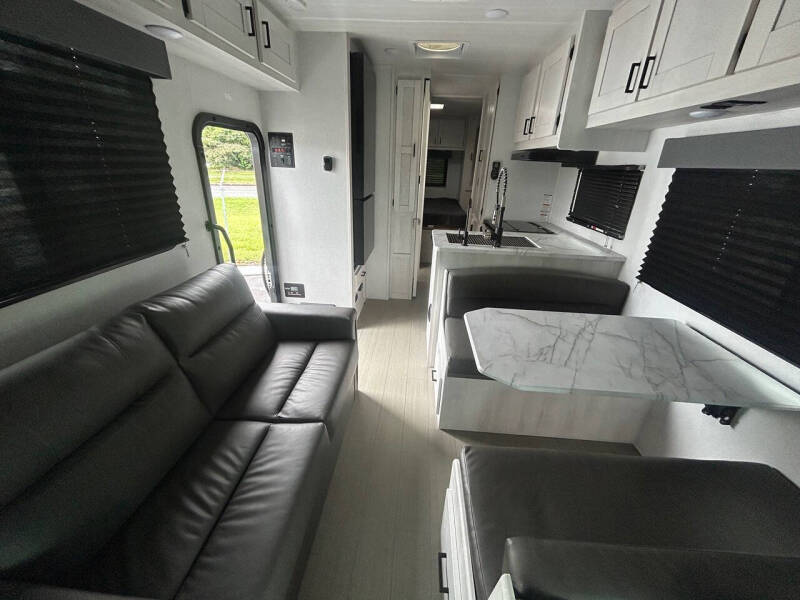

Interior Layout & Sleeping
Specification Value

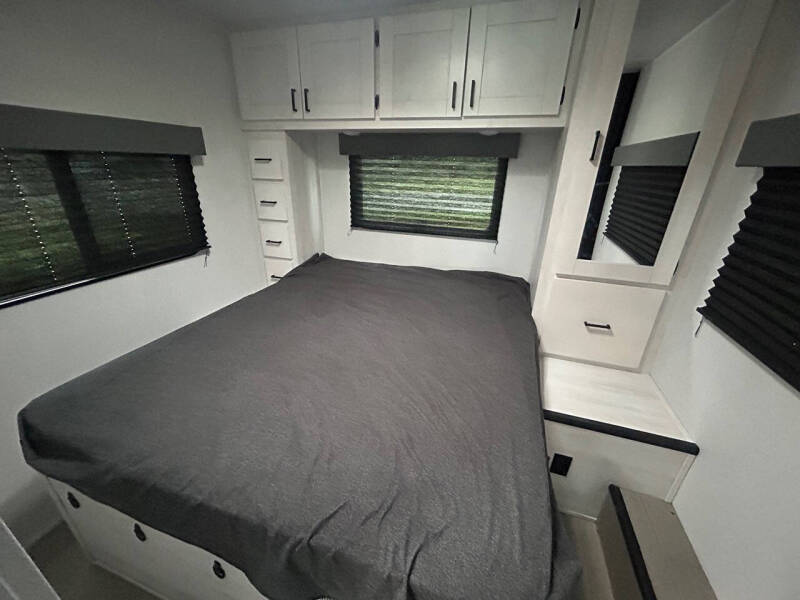

Bedroom Rear private queen bed
Cab Over 60" x 80" bunk
Dinette Booth dinette (convertible)
Sofa Lounge sofa

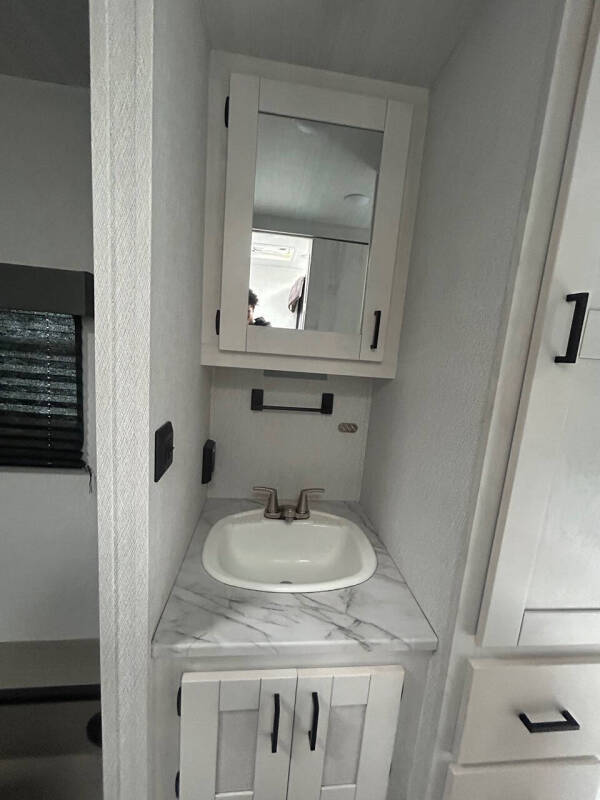

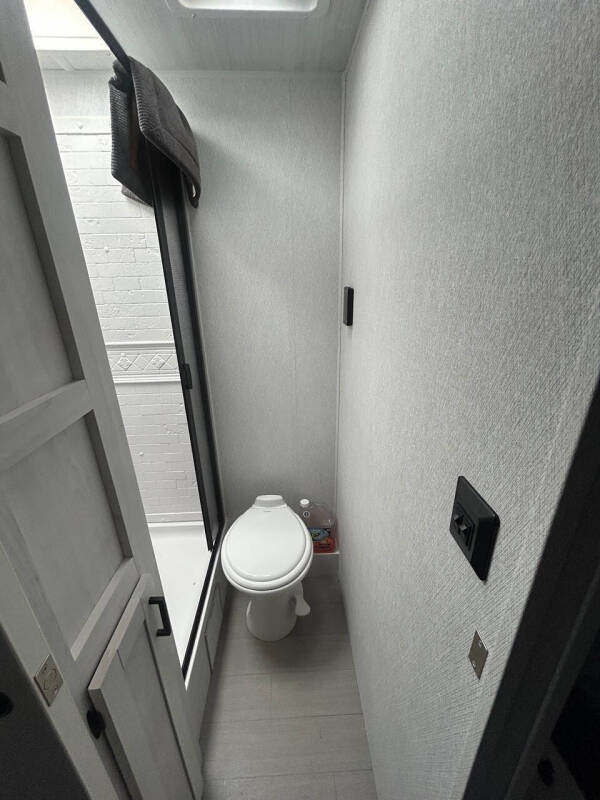

Bathroom Private toilet & shower
Sleeping Capacity Up to 6–8

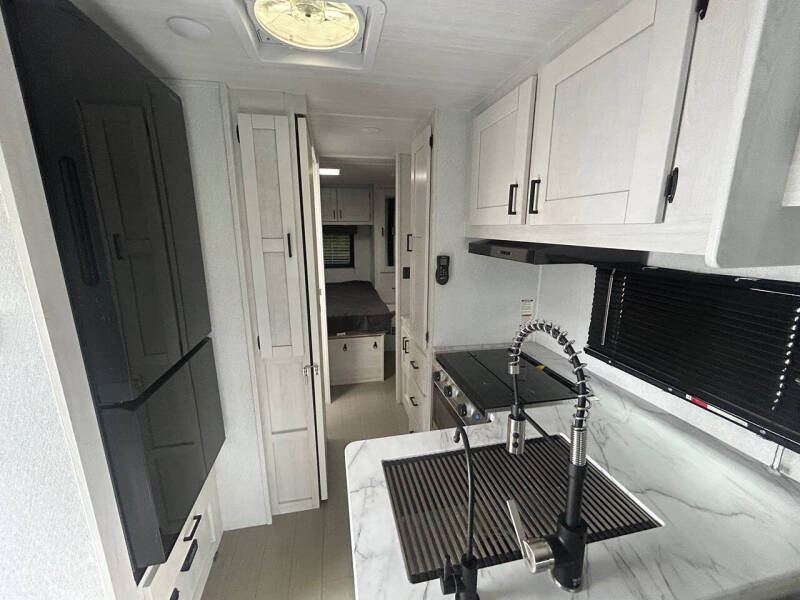

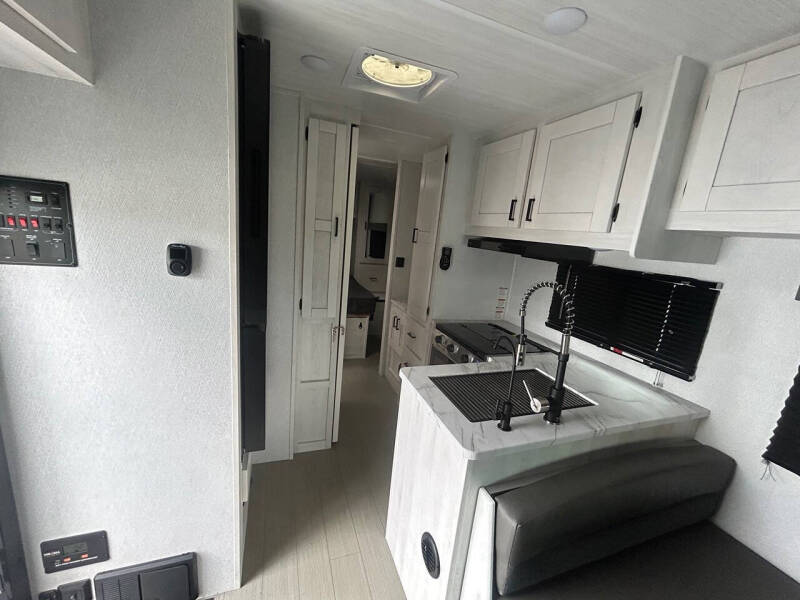

Kitchen & Appliances
3-burner cooktop
Convection microwave / air fryer
10.7 cu ft 12V refrigerator
Double sink
Flip-up countertop extension
Pantry storage

Climate & Utilities
Specification Value
Primary A/C 15,000 BTU (heat pump)
Secondary A/C 13,500 BTU (select builds)
Furnace 30,000 BTU
Electrical 50-amp service
Water Heater Tankless (high altitude capable)
Solar Prep Standard
Generator 6,000W onboard

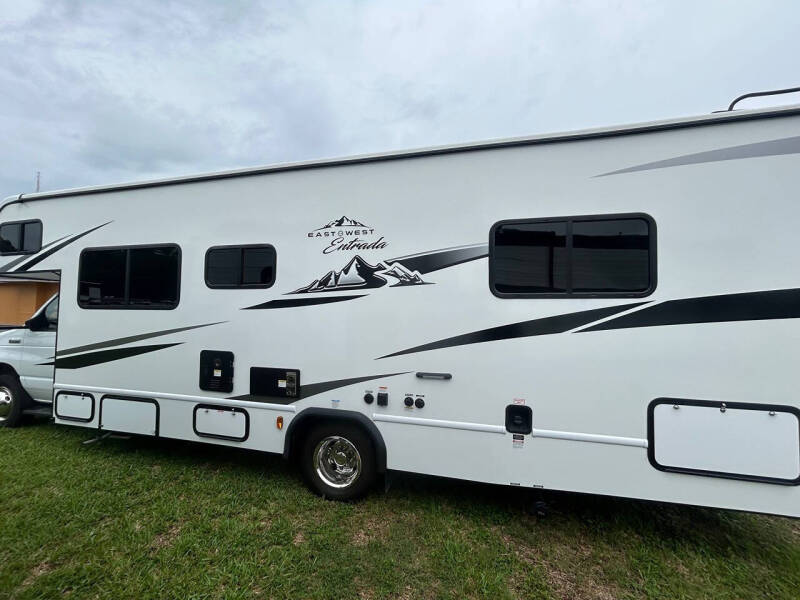

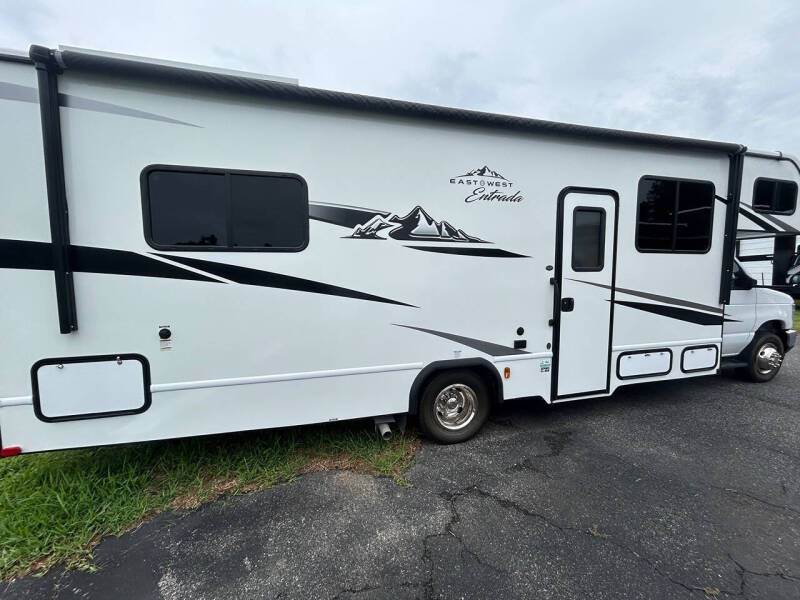

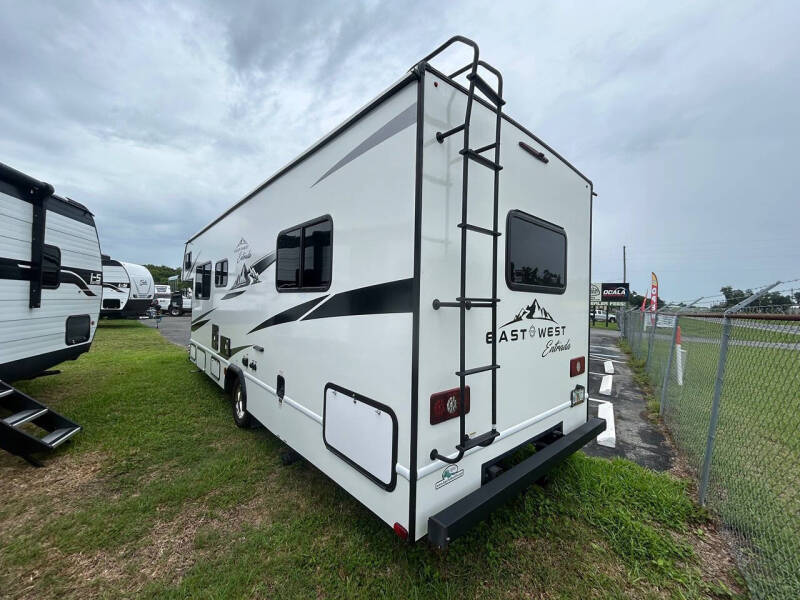

Exterior Features

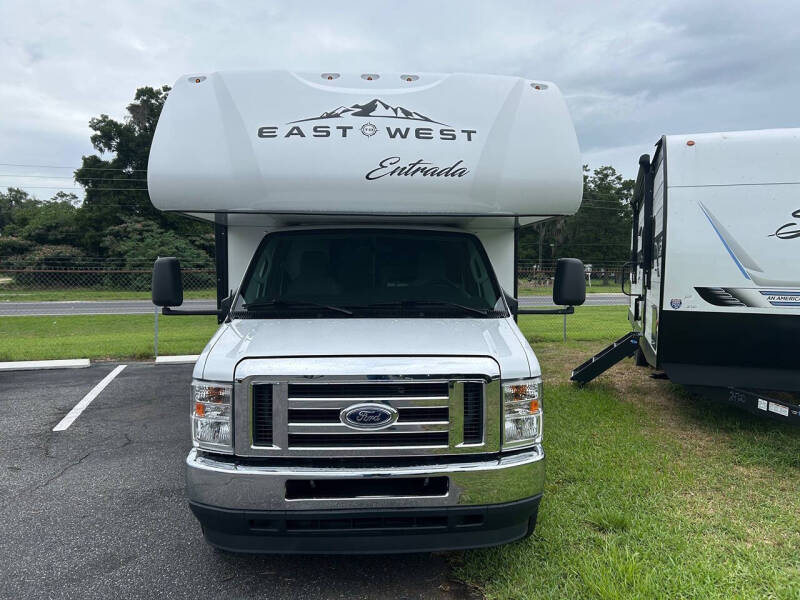

One-piece fiberglass front cap
2" Azdel composite sidewalls
TPO roof membrane (lifetime warranty)
Power awning with LED lighting
Rotocast storage compartments
Rear & side view cameras
LP quick connect
Exterior spray port
Slam-latch storage doors

Driving & Towing
Specification Value
Chassis Ford E-450 cutaway
Hitch Capacity ~5,000 lb (varies by build)
Stabilization Optional hydraulic leveling
Camera System Rear + side monitoring

Highlights

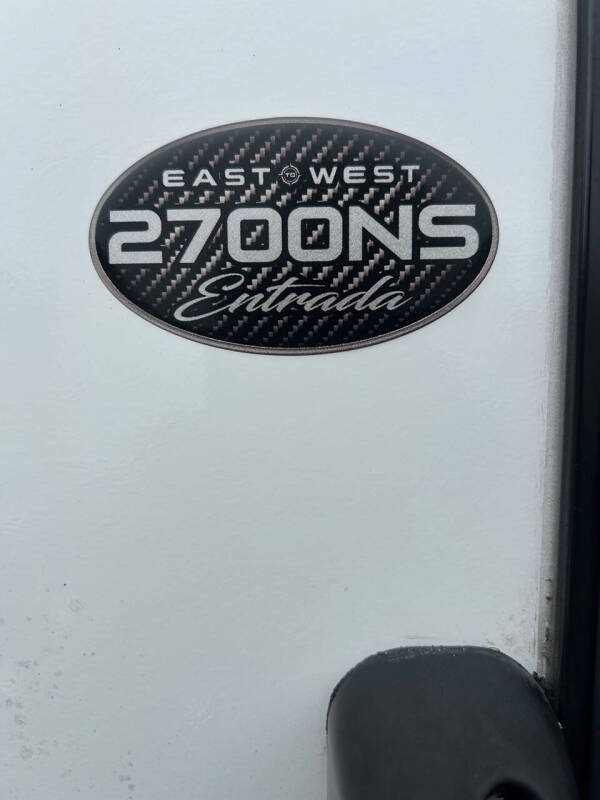

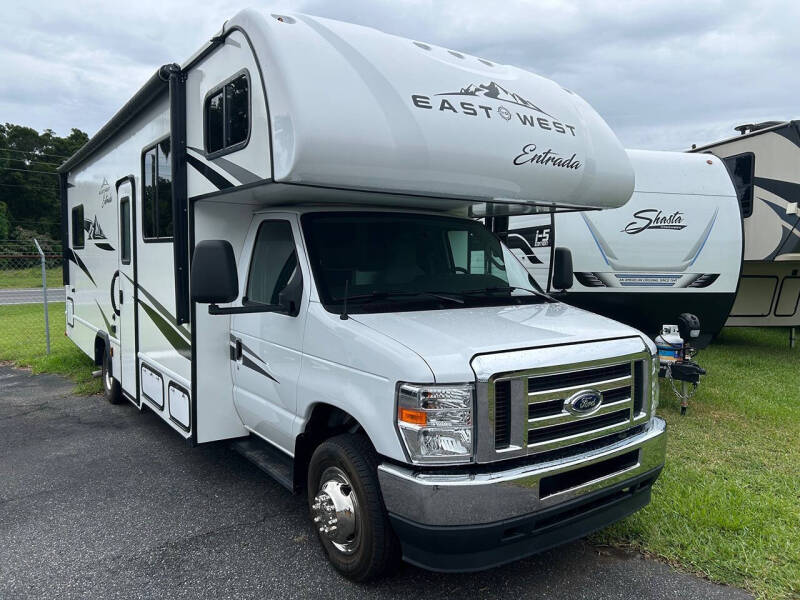

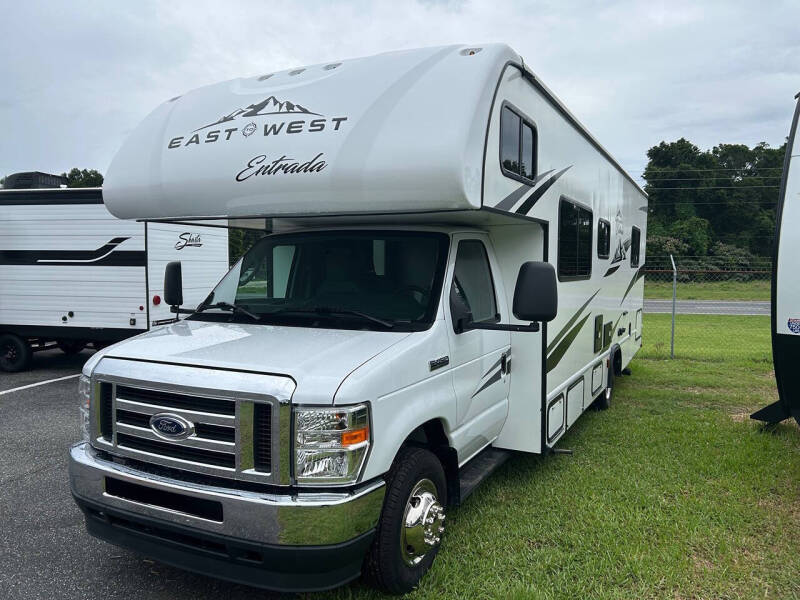

The Entrada 2700NS is a Class C motorhome built for families who want a full-size coach without a slide-out. It stands out for its:

Large 6,000W generator standard
Strong Ford 7.3L V8 chassis
Spacious rear bedroom + full cab-over bunk
High insulation (Azdel composite walls)
Big holding tanks for longer trips
Tankless water heater + residential-style appliances

It’s essentially designed as a no-slide, full-featured travel coach that still sleeps a full family comfortably while keeping maintenance and complexity lower than slide-equipped rigs.
