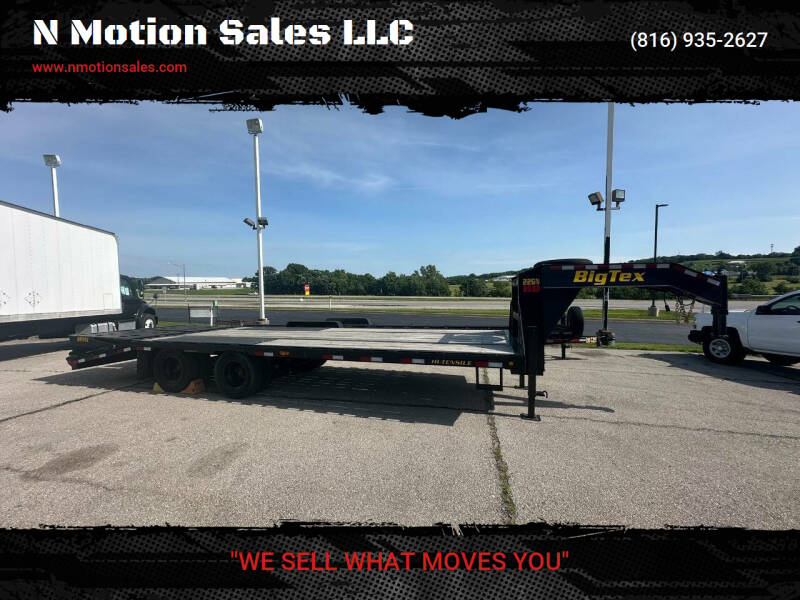

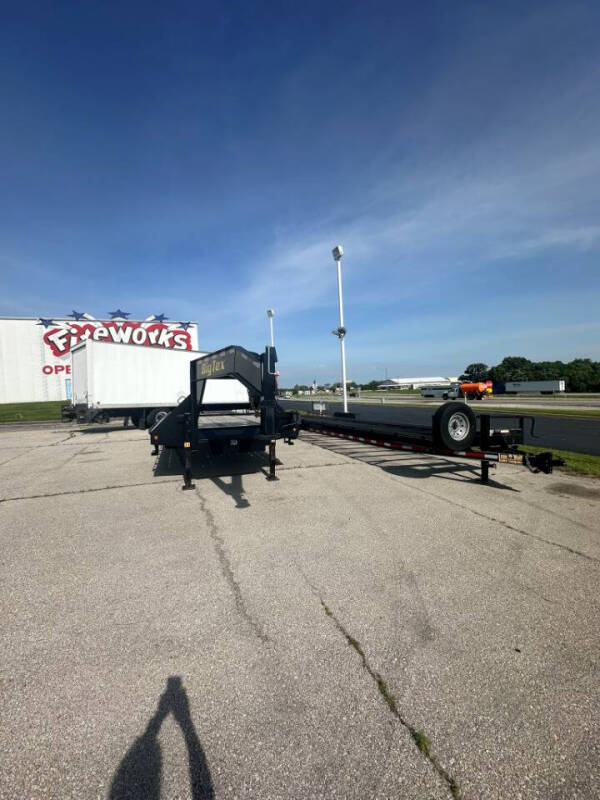

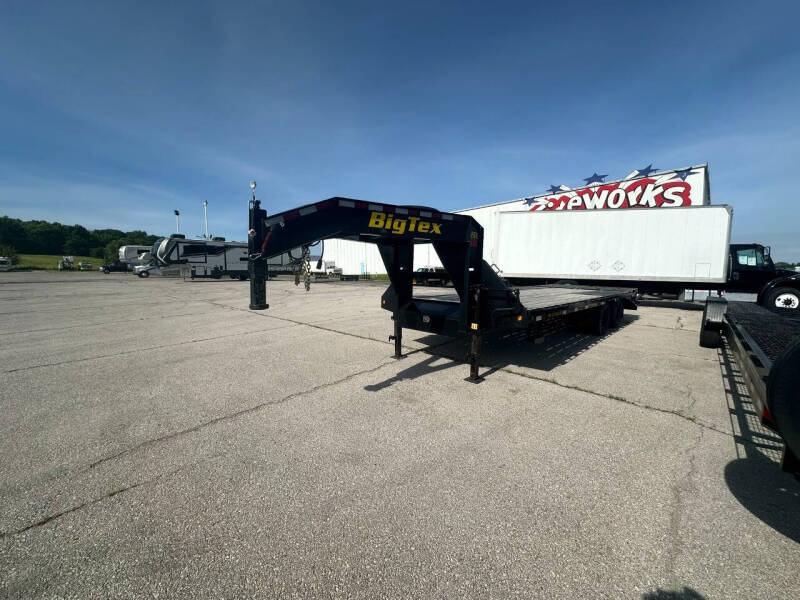

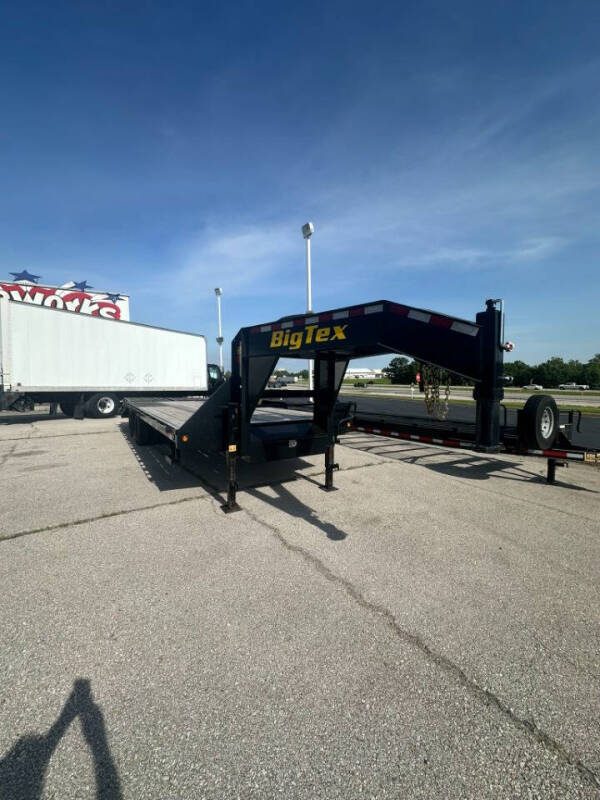

2020 Big Tex Trailer 22GN HD

22GN-20+5MR BIG TEX 25' GOOSENECK TRAILER 23,900 GVWR 12 TON MEGA RAMPS

The 22GN from Big Tex is a durable gooseneck trailer equipped with 10K heavy-duty axles with Dexter Adjustable suspension. This unit features a low-profile pierced-beam frame, LED lights, adjustable dual jacks, a chain box and a crank-style adjustable coupler

Dual 12,000# Drop Leg Jacks- (Bolted On) w/ Greasable Handle
2-5/16" Ball Adjustable Coupler- Square Crank Type

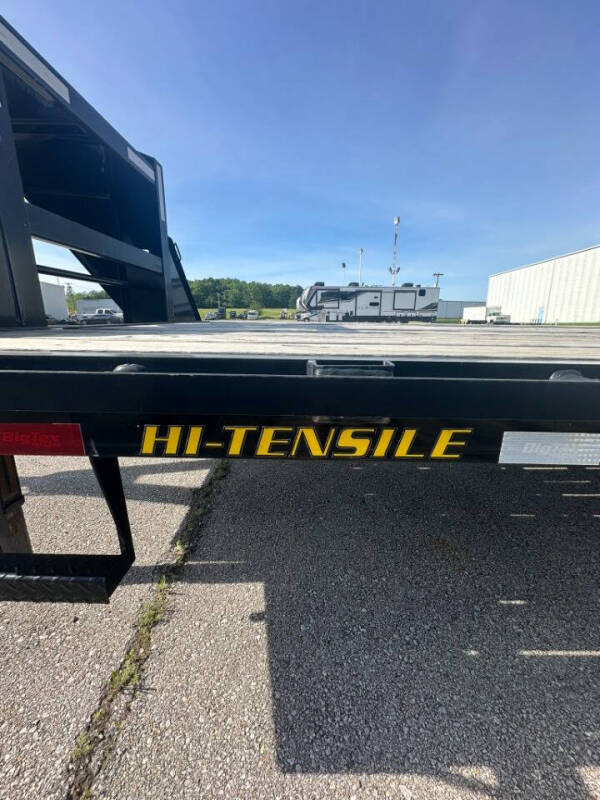

Low Profile Bed, Pierced- Beam Frame
102" Overall Width
(2) Side Bed Steps & Handles
Lockable Toolbox Between GN Uprights
3/8" Heavy Duty Rub Rail
Tie Down Pockets Along Sides, 24" On Center
1-1/4" Pipe Chain Spools Between Tie Down Pockets
Oil Bath Hubs
Dexter Brand Axles
Cambered Axles
Forward Self Adjusting Brakes
Torque Tube Standard on 28 (Flat Deck) & Longer

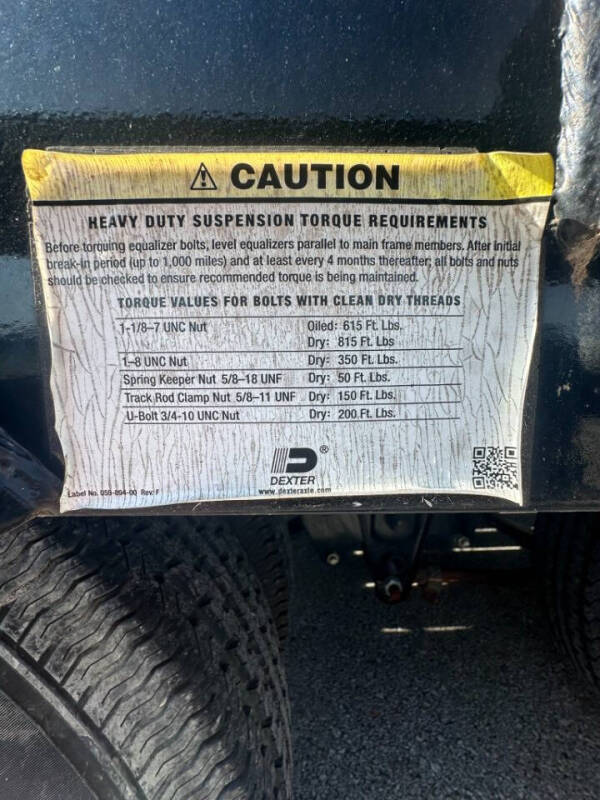

Heavy Duty 30,000# Adjustable Suspension by Dexter Axle
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Modular Sealed Wiring Harness

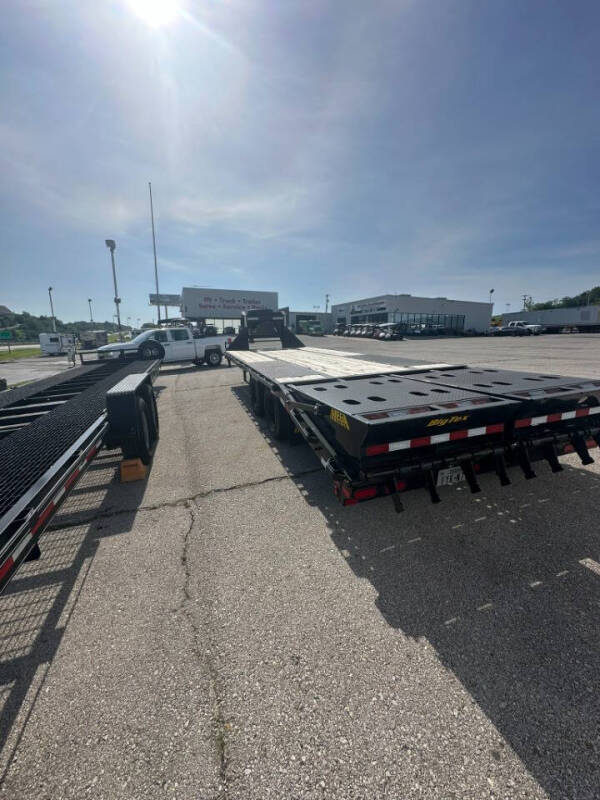

5 Dovetail w/ 5 Double Hinged Spring Assisted Flip-Over Ramps
Complete Break-A-Way System w/Charger
Zip Breakaway Cable
Spare Tire Mount (Top of Neck)
Radial Tires
Spare Tire & Wheel – Standard Equipped
Mudflaps
SPECS:

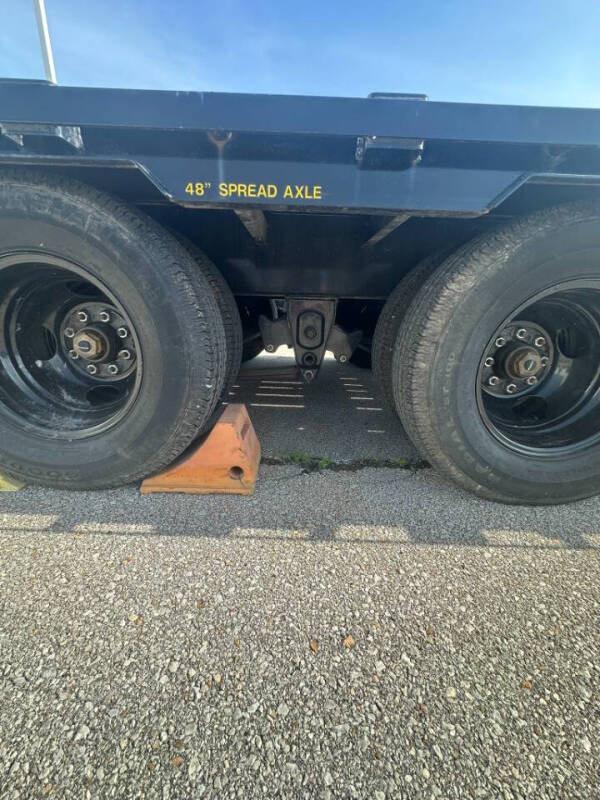

AXLE (2) 10,000# Dual Wheel w/Electric Brakes (Oil Bath)
JACK Dual 12,000# Drop Leg Jacks (Bolted On)

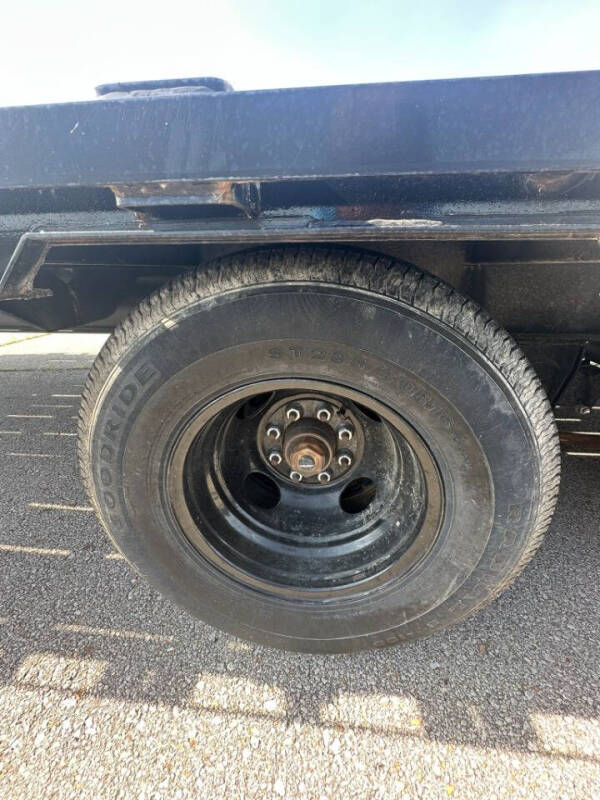

TIRE ST235/80 R-16 Load Range E DUAL
FLOOR 2" Treated Pine or Douglas Fir*
FRAME 12" I Beam, 16#
WHEEL 16" x 6"; Dual Wheel 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
COUPLER 2-5/16" Ball Adj. Square Crank Type
NECK 12" I Beam, 16#
G.V.W.R. 23,900#
TOP RAIL None
ELEC. PLUG 7-Way RV
HITCH TYPE Gooseneck
SIDE RAILS 6" Channel w/Rub Rail, Tie Down Pockets on 24" Centers, and Chain Spools
SUSPENSION Heavy Duty 30,000# Adjustable
CROSSMEMBERS 3" Channel
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8" Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 10,000#
