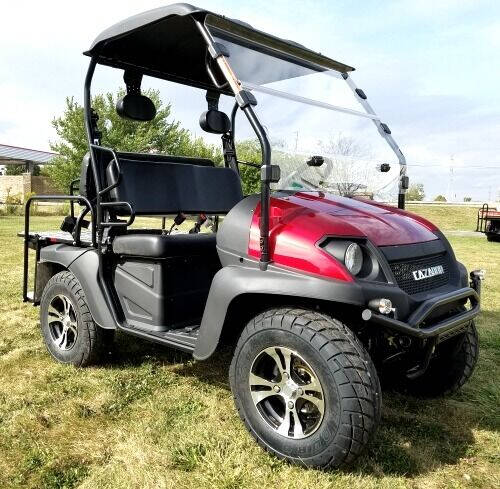

Features & Specifications:
Hi efficiency, 4 Stroke Overhead Cam, Air/Oil Cooled Engine
EPA approved
Digital Gage Set with Speedometer and Tach
Head Lights, Tail Lights and Brake Lights. Turn Signals Optional
CVT Transmission
Integral Manual Shift Gear Box for Forward Neutral and Reverse
Direct Drive from gear box to rear wheels via half shafts
Live Axle Rear Wheel Drive
4 Wheel Hydraulic Disc Brakes
Hand Actuated Mechanical Parking Brake
McPherson Strut Front Suspension
Double A-Arm Fully Independent Rear Suspension
Engine Type Four-Sroke, Single Cylinder
Displacement 177 cc
Bore & Stroke 62.5 × 57.8 mm
Compression Ratio 8.8 : 1
Fuel System Carburetor
Ignition CDI
Transmission Automatic F-N-R
Drive Train Shaft Drive
Cooling air cooling
Horse Power 8.7 HP (6.5kw)
Fuel Tank Capacity 4.8 gallons
Battery 12V 9Ah
Overall Length 92.5 in.
Overall Width 54.3 in.
Overall Height 73.6 in.
Seat Height 18.5 in.
Ground Clearance 13 in.
Front Tire 24×8-12
Rear Tire 24×8-12
Wheel base 63.8 in.
Dry Weigh 828 lbs
Towing Capacity 220 lbs
Front Suspension Independent Mcpherson
Rear Suspension Independent Double A-Arm
Front Brake Ventilated Hydraulic DIsc
Rear Brake Ventilated Hydraulic Disc
Colors Red / Blue / Green / Cream
