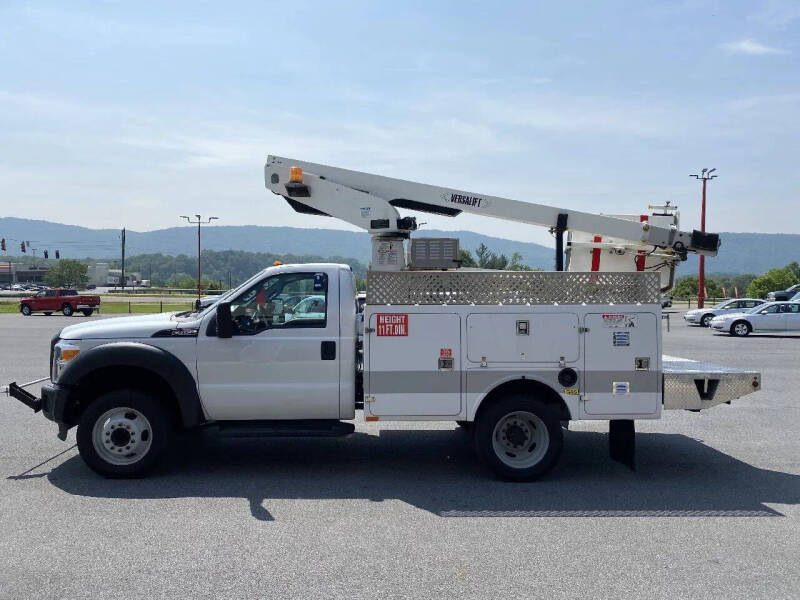

2012 Ford F-450 Super Duty

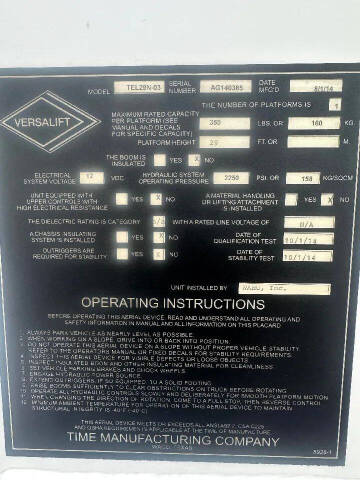

This vehicle is equipped with a Versalift TEL-29-N, a non-insulated, side-mounted telescopic aerial lift designed for telecommunications, lighting, and sign maintenance applications. It offers a working height of 33.92 feet and a horizontal reach of 20.67 feet, providing excellent access to elevated work areas. The fiberglass platform measures 24' x 24' x 42' and supports up to 350 lbs, featuring hydraulic leveling for optimal positioning. The boom offers 360° non-continuous rotation, outer boom articulation from -14° to +74°, and an inner boom extension of 116 inches, allowing for flexible positioning. The hydraulic system operates at 2,250 psi with a flow rate of 2 gpm, powered by a PTO pump, belt drive, DC drive, or generator, and includes a 10-micron return and 100-mesh suction filtration system. The unit requires a vehicle with a GVWR of 14,500 lbs and a minimum cab-to-axle length of 60 inches. Additional features include electric/hydraulic controls, open-center hydraulic system, and optional remote lower controls. This boom lift is designed for efficiency, safety, and reliability in various field applications.
